🔹 Product Overview

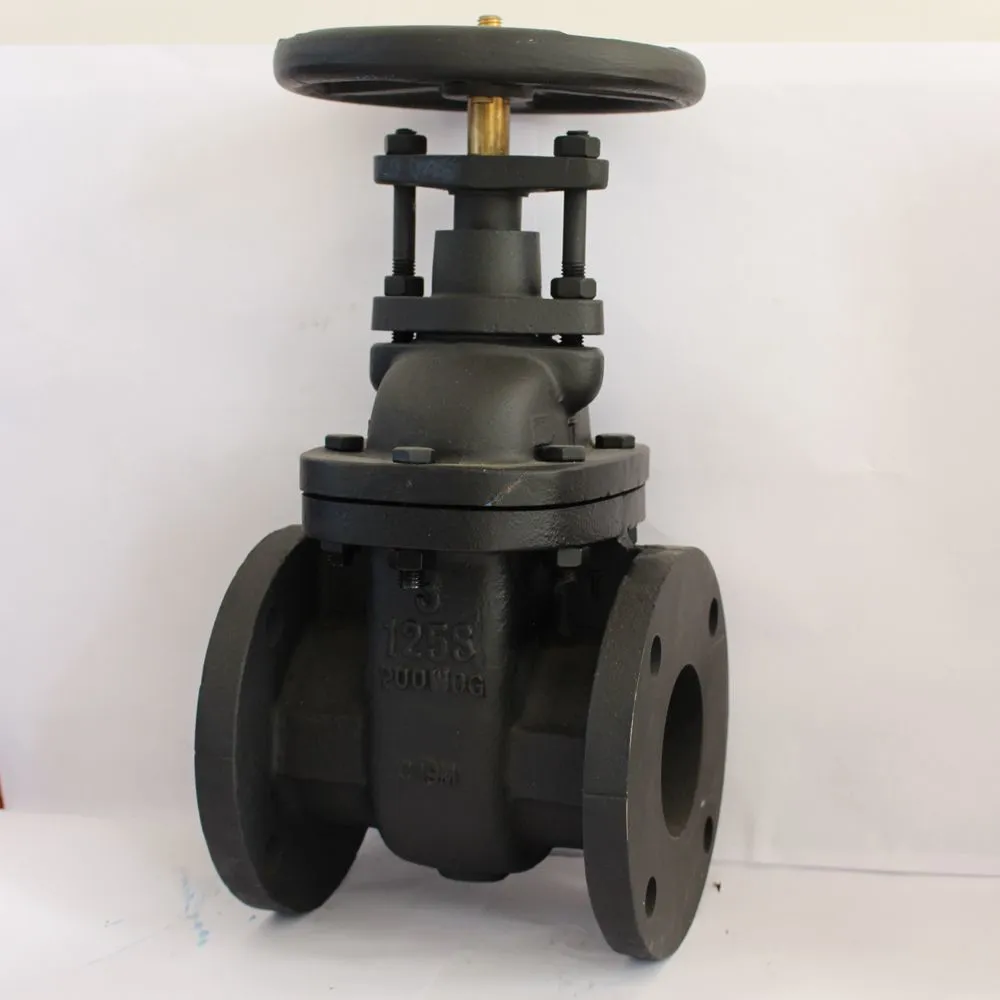

CHX ANSI Rising Stem Gate Valve is a high-performance industrial valve designed and manufactured strictly in accordance with MSS SP-70 standard, featuring reliable sealing, stable operation and long service life. With cast iron body, rising stem structure and flanged end connection, it is widely used in petroleum, chemical, natural gas, electric power, metallurgy, pharmacy, building, water supply and other industries, perfectly meeting the requirements of availability, reliability and stability in harsh working conditions.
🔹 Product Specifications
| Item | Parameter |
|---|---|
| Standard | MSS SP-70, ANSI B16.10, ANSI B16.5, API 598 |
| Size Range | 2"-40" (DN50-DN1000mm) |
| Pressure Rating | 125LB, 150LB |
| Body & Bonnet Material | ASTM A126B Cast Iron |
| Stem Material | 2Cr13 / SS304 / SS316 / Carbon Steel (Optional) |
| Stem Nut Material | Brass |
| Disc Material | ASTM A126B Cast Iron |
| Seat & Wedge Ring Material | Bronze B62 / Brass |
| Gasket & Packing | Graphite |
| Handwheel Material | ASTM A536 65-45-12 Ductile Iron |
| Connection Type | Flanged End |
| Stem Type | Rising Stem (OS&Y) |
| Operation Mode | Manual (Handwheel) |
| Applicable Medium | Water, Oil, Gas (WOG), Sewage, Industrial Fluid |
| Working Temperature | -20℃ ~ 120℃ (Customizable for higher temperature) |
🔹 Product Advantages
Factory Direct Supply: CHX is a professional valve manufacturer with independent R&D and production capacity, providing competitive prices and short delivery time.
Strict Quality Control: Each valve undergoes 100% pressure test and appearance inspection before delivery, ensuring 100% qualified products.
Customization Support: Accept OEM/ODM customization, including special materials, pressure ratings, sizes and operation modes (electric/pneumatic actuator optional).
Complete Certification: Products have passed ISO and other international certifications, meeting global market access requirements.
Professional After-sales Service: Provide 24-hour technical support and after-sales service, solving customer problems in time.
🔹 Application Scenarios
-
Petroleum and chemical industry pipeline systems
Urban water supply and drainage projects
Natural gas transmission pipelines
Power plant and metallurgical industry systems
Pharmaceutical and food processing industries
Building water supply and fire protection systems
🔹 About CHX
CHX is a leading Chinese valve manufacturer founded in 1993, based in Hebei Province. Specializing in mid-low pressure gate, globe, check, ball and butterfly valves, CHX offers products conforming to GB, ANSI, DIN, GOST and BS standards. With ISO9001 certification and annual production capacity of 11,000 tons, CHX serves global clients in water, oil, gas and industrial sectors.
✅ International Quality CertificationOur company is certified by ISO 9001 Quality Management System, ensuring strict quality control throughout the production process, and delivering reliable valve products to global customers.
🔹 Packaging and Transportation
Packaging：Standard export plywood case / carton, with foam protection to avoid damage during transportation
Delivery Time：3-7 working days for stock, 15-20 working days for customized orders
Shipping Method：Sea freight, air freight, express (DHL, FedEx, etc.)
Customization Support：Accept customized size, pressure, material, logo, etc.
Q&A for ANSI Rising Stem Gate Valve (CHX Brand)
Q1: Are you a factory or trading company?
A: We are a professional valve manufacturer founded in 1993 with our own factory covering more than 70,000 ㎡. We have strong R&D and production capacity, supporting OEM & ODM.
Q2: What standards does this gate valve comply with?
A: Designed and manufactured under MSS SP-70, face to face ANSI B16.10, flange ANSI B16.5, tested according to API 598.
Q3: What is the pressure and size range?
A: Pressure: 125LB, 150LB. Size: 2"–40" (DN50–DN1000).
Q4: What materials are used for main parts?
A: Body & Bonnet: ASTM A126B; Stem: 2Cr13/SS304/SS316; Seat & Wedge: Bronze B62/Brass; Gasket & Packing: Graphite.
Q5: What medium and temperature is it suitable for?
A: Suitable for Water, Oil, Gas (WOG), sewage and industrial fluids. Working temperature: -20℃ to 120℃.
Q6: What is the delivery time?
A: Normal order: 7–15 working days after deposit. Customized orders depend on quantity and requirements.
Q7: What payment terms do you accept?
A: T/T, L/C, Western Union, MoneyGram are all acceptable.
Q8: Do you provide samples and quality inspection?
A: Samples available. Each valve is 100% pressure tested before shipment to ensure zero leakage.
Q9: Can we mark our own brand on the valves?
A: Yes, we support OEM with customer logo, brand and packaging.
Q10: Which industries is this valve mainly used in?
A: Petroleum, chemical, natural gas, power, metallurgy, pharmacy, water supply, construction and other industrial pipeline systems.
