Lianqi Net Industry Farmland Construction Gabion Cage Single Partition 80*100 Gabion Cage
Specific requirements for custom - made gabion cages for engineering projects:

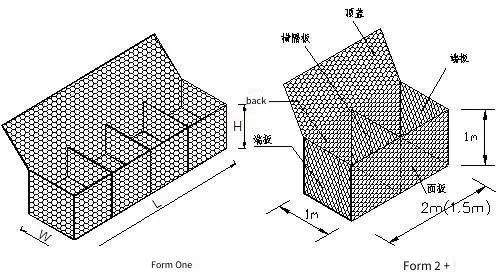

Gabion cage mesh size: 4*1*0.8 meters
Mesh specification: 80(D)X100(L)mm, error range +16% - 4%
Wire diameter: 2.2mm, error ± 0.06. Grid wire diameter: 2.7mm, wire diameter tolerance (±)0.06mm, minimum coating amount 245g/m². Edge wire diameter: 3.4mm, wire diameter tolerance (±)∅0.07mm, minimum coating amount 265g/m²; Wire tensile strength: 350 - 500Mpa, in accordance with EN10223 - 3 and subject to national standards and construction drawing technical requirements.
15000.00 square meters, 12, 13% special VAT invoice, including handling fees -
Calculation method and engineering quantity of the expanded area of the single - partition gabion cage: Calculation of the expanded area of the single partition: (width + height)*2*length + width*height*(length + 1)=area. Calculation of engineering quantity: For a 4*1*0.8 - meter gabion cage with a single partition every one meter, the expanded area of each set is 18.4 square meters. The total quantity can be calculated based on the required number of such gabion cages.
