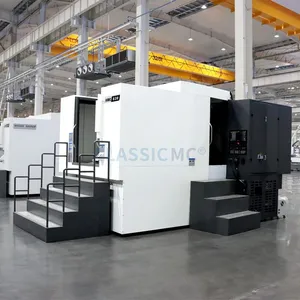

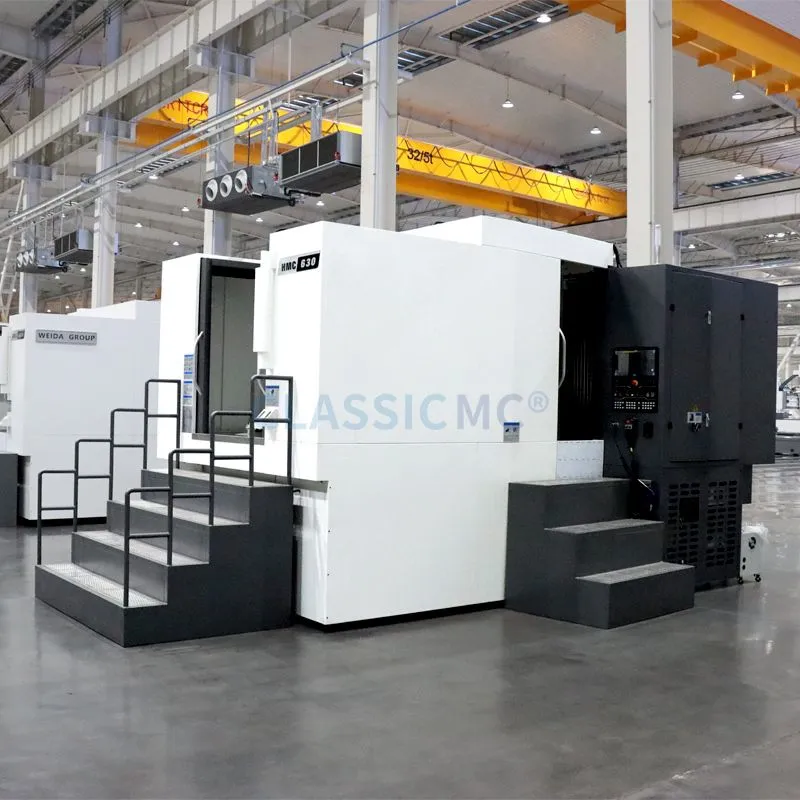

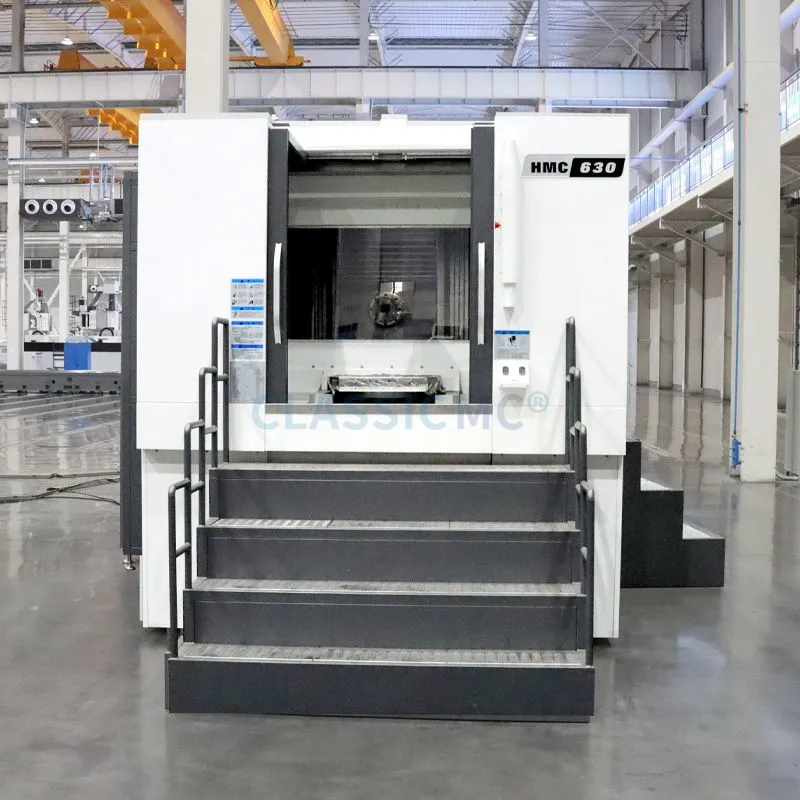

HMC630 Horizontal Machining Center – Detailed Product Introduction
1. Product Overview
The HMC630 Horizontal Machining Center is a mid-sized, high-performance CNC machine tool engineered for multi-face, high-precision machining of complex components. Built for heavy-duty and high-efficiency production, it excels in one-setup multi-sided machining of box-shaped, housing, and disk-type parts. It is widely used in the automotive, aerospace, mold, and general machinery industries.
2. Core Structure & Key Features
Rigid, High-Stability ConstructionThe machine adopts a heavy-duty cast iron bed and column with reinforced rib design, fully stress-relieved to eliminate internal stress. This ensures minimal vibration during heavy cutting, long-term geometric accuracy retention, and exceptional structural rigidity.
630×630mm CNC Rotary WorktableThe indexing worktable (standard size: 630×630mm) offers high-precision positioning (indexing accuracy: ±3 arcsec). With 4-axis simultaneous machining capability, it allows for 4-sided machining in a single setup, significantly reducing clamping errors and improving production efficiency.
Powerful Spindle SystemEquipped with a high-torque spindle (BT40/BT50 taper optional) and high-power spindle motor (15–22kW), the spindle can reach speeds up to 6,000rpm (optional 8,000/10,000rpm). It supports both heavy roughing cuts and high-precision finishing operations.
High-Efficiency Tool ManagementThe machine comes standard with a 24-tool disc-type automatic tool changer (ATC), with optional upgrades to 40/60 tools. Fast tool change time (≤3 seconds) reduces non-cutting time and optimizes continuous production.

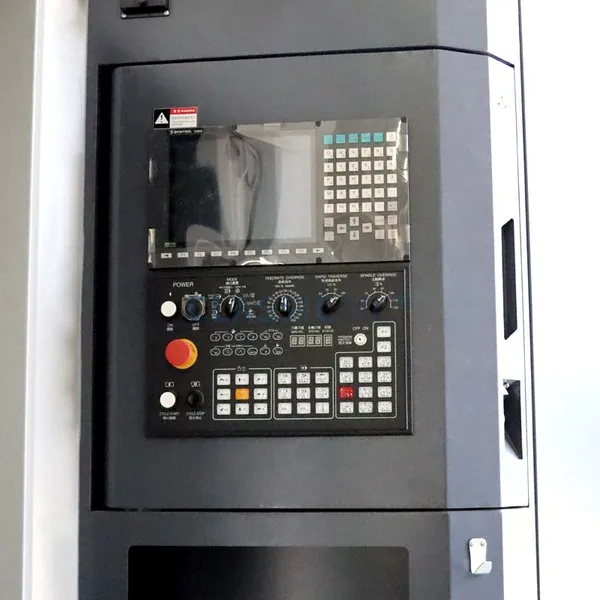

Advanced CNC Control SystemCompatible with leading control systems including FANUC, Siemens, Mitsubishi, and GSK, the HMC630 offers user-friendly programming, reliable operation, and seamless integration with automation and MES systems.
High Machining Accuracy & RepeatabilityPositioning accuracy: ±0.005mmRepeat positioning accuracy: ±0.003mmThis ensures consistent quality for precision components across mass production runs.
Optional Automation UpgradesThe HMC630 supports dual pallet changers (APC) and automated material handling systems, enabling unmanned operation and flexible manufacturing lines for high-volume production.
3. Typical Technical Specifications (Standard Version)
4. Key Applications
The HMC630 is ideal for machining:
Automotive engine blocks, cylinder heads, and transmission housings
Aerospace structural components and turbine parts
Mold bases, die-casting molds, and large tooling
Hydraulic valve bodies, pump housings, and heavy machinery parts
Multi-sided components requiring complex contour machining
5. Quality & After-Sales Support
All HMC630 machines undergo strict quality control and are CE certified for international safety standards. We provide a 1-year warranty, on-site installation guidance, operator training, and a reliable supply of spare parts to ensure long-term stable operation.
