Help CenterL3 Managed PoE Switch 48-Port Gigabit Ethernet Network Switch With 4x10G SFP+ Uplinks High-Performance Enterprise Switch Focus S5710-48TP4SX
Product Spotlights
Advanced L3 Management: Supports Layer 3 routing protocols, VLAN, and QoS for intelligent traffic control and network security.
Related Products
-
10G L3 Managed Fiber Switch, 8-Port 10G SFP+ High-Performance Stackable Enterprise Network Switch Focuscom S5720-8XNegotiableMOQ: 1 Unit -
2.5G Enterprise Switch, L3 Managed 10G/25G Networking Switch With 10G RJ45 and 2x10G SFP+ Ports Switch Focuscom S5720-12M2H2XNegotiableMOQ: 1 Unit
-
L3 Managed Network Switch, 24-Port 2.5G RJ45 With 6-Port 10G SFP+ Uplinks, Stackable Enterprise Access Layer Ethernet Networking Switch S5720-24M6XNegotiableMOQ: 1 Unit
-
Layer 3 Managed PoE Switch, 24-Port 2.5G Base-T and 6-Port 10G SFP+ Uplink, Enterprise Ethernet Network Switch Focuscom S5720-24MP6XNegotiableMOQ: 1 Unit
-
L3 Managed Data Center Switch, 48-Port 2.5G Base-T, 4x 25G SFP28 & 2x 40G QSFP+ Uplinks, High-Density Network Switch Focuscom S5860-48M4X2QNegotiableMOQ: 1 Unit
Product Overview

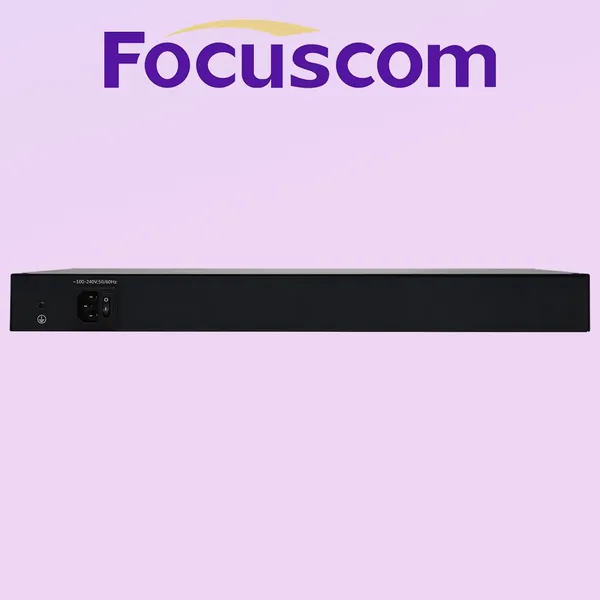

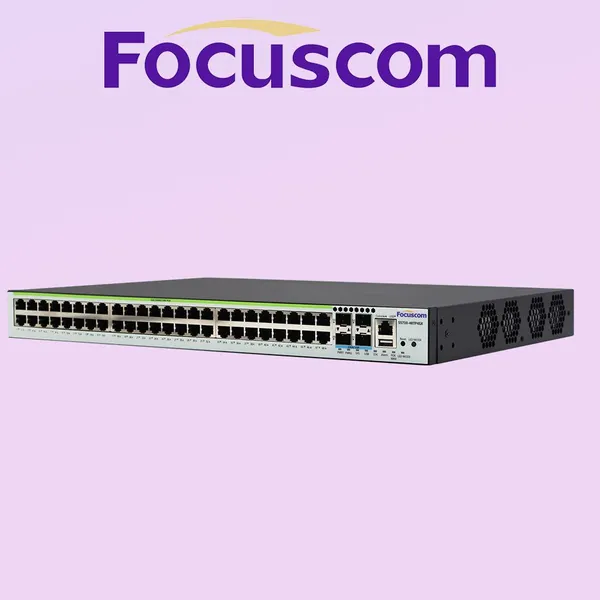

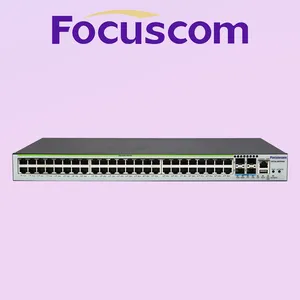

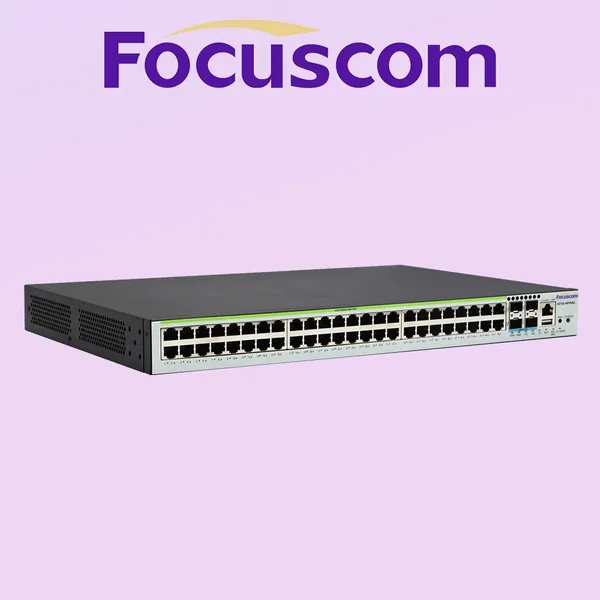

The S5710-48TP4SX is a next-generation Layer 3 managed PoE switch designed for high-performance enterprise and campus networks. It provides a powerful combination of 48x 10/100/1000Base-T ports and 4x 10G SFP+ uplink ports, ensuring high bandwidth and future-proof scalability.
Key Features
Powerful Performance: Equipped with a high switching capacity and forwarding rate to handle heavy data traffic without bottlenecks.
Layer 3 Routing: Supports advanced static routing, RIP, OSPF, and IPv6 features, allowing for efficient inter-VLAN communication.
Robust Security: Includes ACLs, Port Security, 802.1X authentication, and DoS attack prevention to safeguard your corporate data.
Intelligent Management: Easy configuration via Web GUI, CLI (Console/Telnet/SSH), and SNMP for comprehensive network monitoring.
Flexible PoE Allocation: Compliant with IEEE 802.3af/at standards, providing up to 30W per port to power high-demand PD devices.
Technical Specifications
| Feature | Specification |
| Model | S5710-48TP4SX |
| Fixed Ports | 4810/100/1000Base-T (PoE+), 410G SFP+ |
| Management | L3 Managed (Web, CLI, SNMP) |
| PoE Protocol | IEEE 802.3af / IEEE 802.3at |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Power Input | AC 100-240V, 50/60Hz |
Application Scenarios
Ideal for SMB core layers, large enterprise access layers, and smart building surveillance systems where high-speed data and integrated power delivery are critical.
