Overview

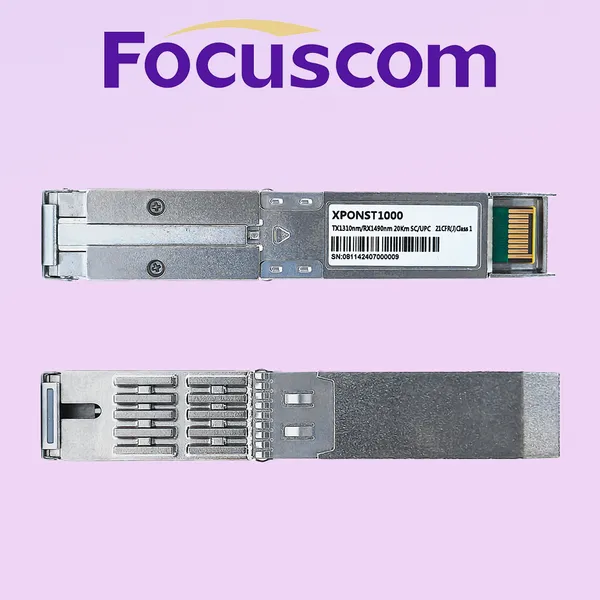

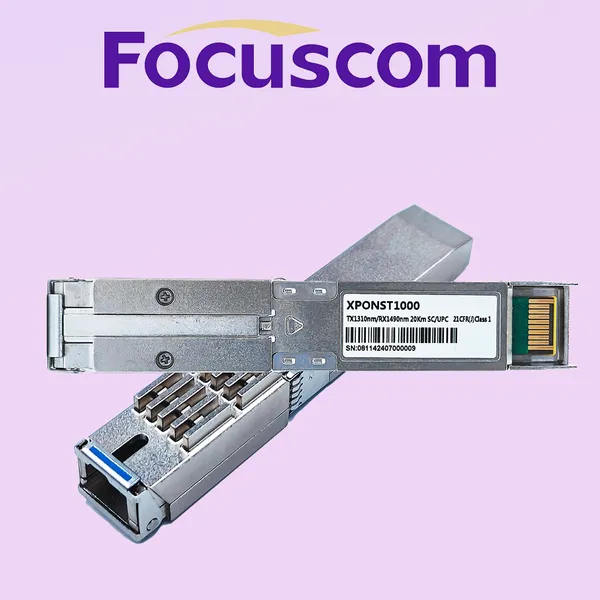

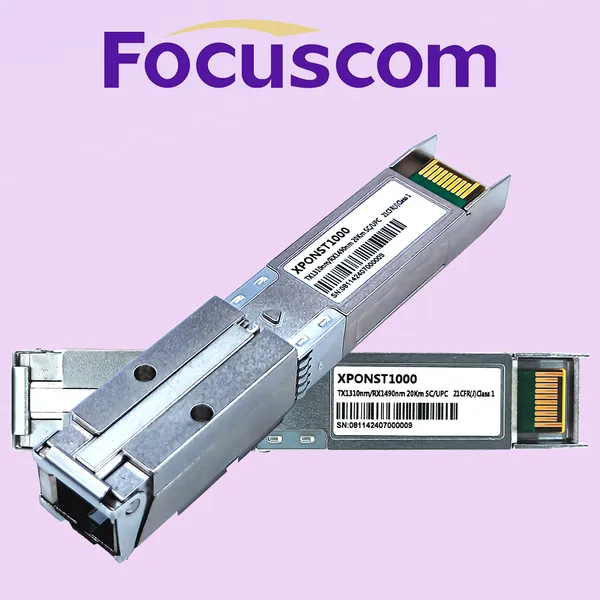

The Focuscom XPONST1000 is a high-performance XPON (GPON/EPON) ONU designed in a compact SFP (Small Form-factor Pluggable) housing. It provides a cost-effective and space-saving solution for ISPs and enterprises to convert any standard SFP port on a switch, router, or firewall into a powerful fiber optic terminal.
Key Features & Specifications
Interface: 1 x SC/UPC (or APC) connector for fiber connection; standard SFP interface for data and power.
Transmission Rate: Supports symmetric 1.25Gbps (EPON) and downstream 2.5Gbps / upstream 1.25Gbps (GPON) speeds.
Compatibility: Fully compliant with ITU-T G.984.x (GPON) and IEEE802.3ah (EPON) standards.
Bridge Mode: Supports transparent bridge mode for easy integration into existing network infrastructures without complex reconfiguration.
Compact Design: The "Stick" form factor reduces clutter, replacing bulky external ONU boxes and extra power adapters.
Advanced Management: Supports OMCI and OAM management protocols for remote configuration and status monitoring.
Application Scenarios
FTTH (Fiber to the Home): Simplifies home networking by plugging directly into a home gateway.
Enterprise Networking: Ideal for upgrading switches to support fiber uplinks directly.
Wireless Backhaul: Used in wireless base stations or outdoor APs that require a streamlined fiber connection.
Technical Parameters
| Item | Specification |
| Model | XPONST1000 |
| Standard | GPON (G.984.x) / EPON (802.3ah) |
| Port Type | SFP (Small Form-factor Pluggable) |
| Optical Interface | SC Connector |
| Distance | Up to 20km |
| Operating Temp | -40°C to 85°C (Industrial Grade support available) |
