1. Basic dimensions (metric system)
Inner diameter d: 70 mm
Outer diameter D: 133.35 mm
Inner ring width C: 61.2 mm
Width B: 31.8 mm
Weight: 2.94 kg
II. Core Performance (GR Positioning Type)
Basic dynamic load Cr: 178 kN
Basic static load Cor: 208 kN
Limit speed: 3,450 r/min (grease lubrication)
Axial capability: bidirectional axial positioning (GR)
Cage: Solid brass cage (M), heavy-duty, heat-resistant, and resistant to deformation
III. Structural Features

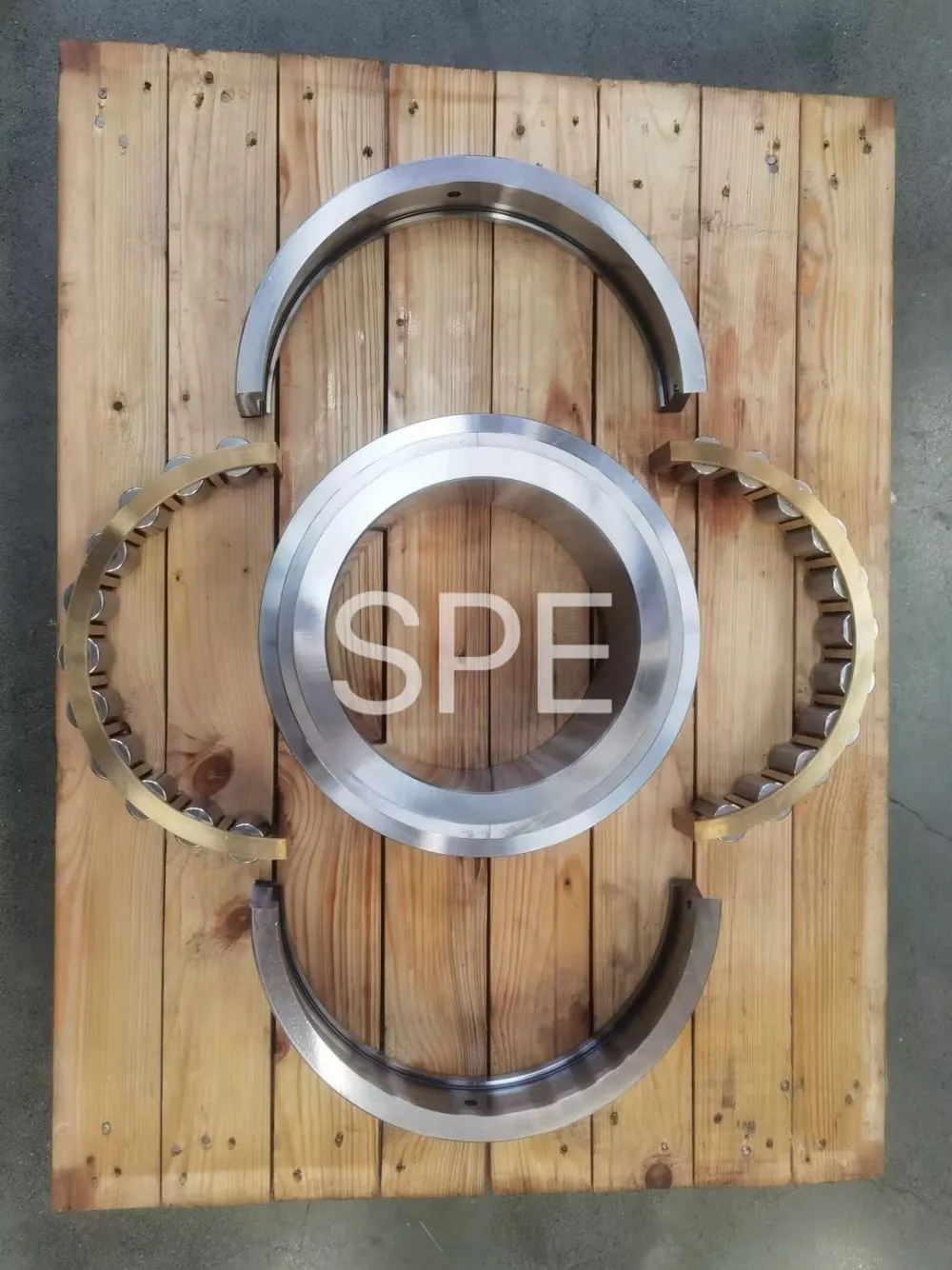

Fully split design: The inner and outer rings, rollers, and cages can all be split in half, allowing for installation and replacement without dismantling the shaft or equipment, significantly reducing downtime.
01E Enhanced Series: With increased roller size and enhanced load capacity, the dynamic load capacity is improved by approximately 29% compared to the standard 01 Series, resulting in a longer lifespan.
Bidirectional positioning (GR): It can simultaneously withstand radial and bidirectional axial loads, making it suitable for heavy-duty rotating parts that require axial fixation.

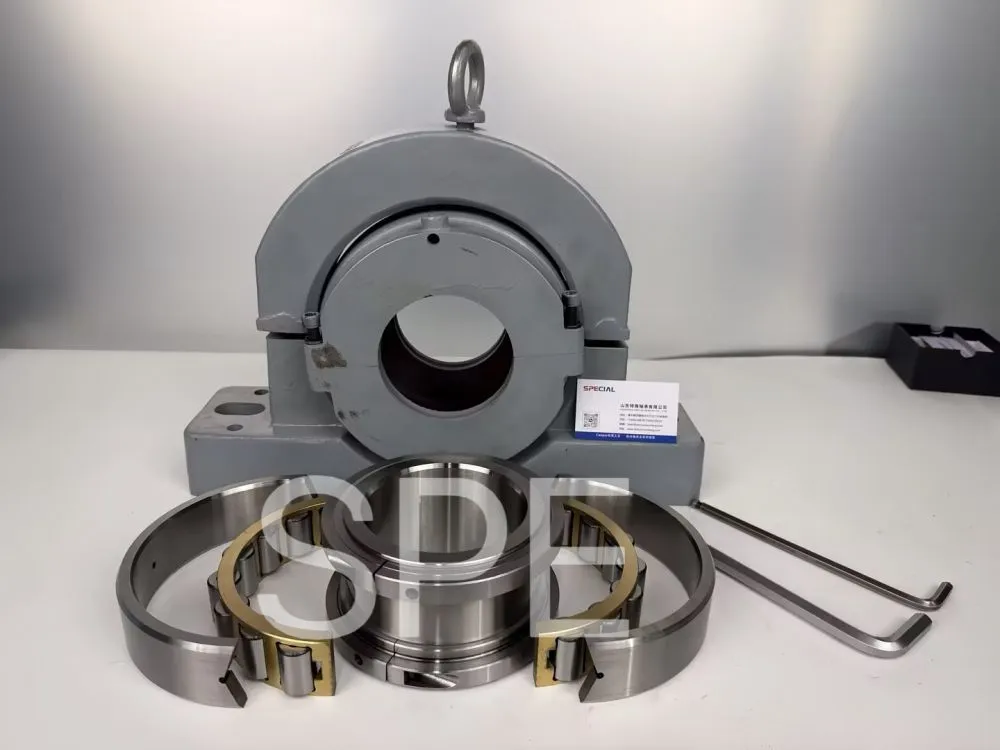

Static alignment compensation: compatible with SKF Cooper split bearing housings, allowing a certain degree of shaft-housing alignment deviation.
IV. Typical Applications
Conveyor, large fan, pump, crusher, mixer
Heavy equipment in mining, metallurgy, cement, paper-making, etc
Medium and low speed heavy-load scenarios with narrow space and difficulty in dismantling shafts
V. Model Description
01: Medium-sized series
E: Enhanced
B: Cylindrical roller, bidirectional positioning
70: Inner diameter 70 mm
M: Brass cage
GR: Bidirectional axial positioning (fixed end)
