Malleable Iron Pipe Fittings for Plumbing, Fire Protection, and Industrial Systems
Product Introduction
Our malleable iron pipe fittings are manufactured with high-strength malleable iron (ASTM A197) to ensure durability and long service life. These fittings are widely used in plumbing, fire protection, gas, steam, and general industrial piping systems.
We offer a wide range of fittings including elbows, tees, crosses, couplings, unions, nipples, bushings, and floor flanges in sizes ranging from 1/8" to 6" (DN6 to DN150), suitable for both domestic and commercial piping systems.
· Pressure rating: Class 150, max working pressure 300 PSI (ambient temperature)
· Thread standards: NPT (ASME B1.20.1) or BSPT (ISO 7-1 / EN 10226-1)
· Surface finishes: Hot-dip galvanized, electro-galvanized, or black (no coating)

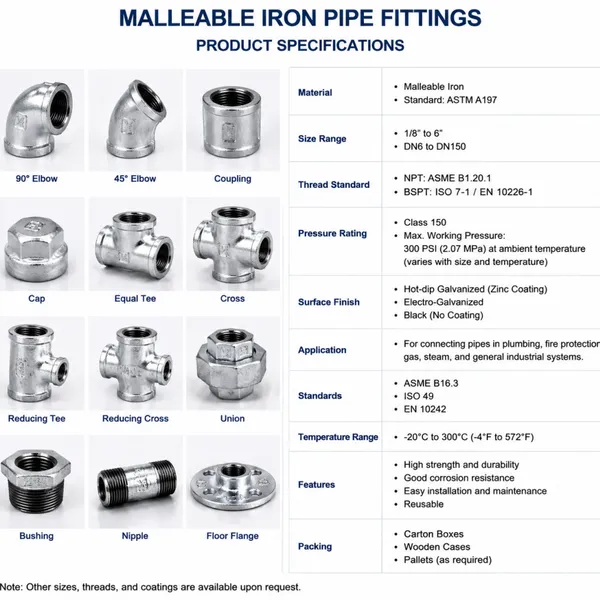

Product Specifications
Fitting Type |
Size Range |
Pressure Rating |
Thread Standard |
Material |

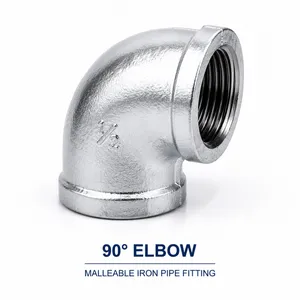

90° Elbow |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
45° Elbow |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Coupling |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Cap |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Tee |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Cross |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Reducing Tee |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Reducing Cross |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Union |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Bushing |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Nipple |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Floor Flange |
1/2" – 4" |
Class 150 |
NPT / BSPT |
Malleable Iron |
Product Features (H2)
· High strength and durability
· Excellent corrosion resistance
· Easy installation and maintenance
· Reusable and long-lasting
· Suitable for hot and cold water, gas, and industrial piping systems
