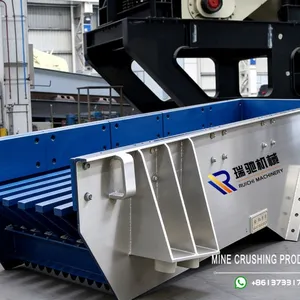

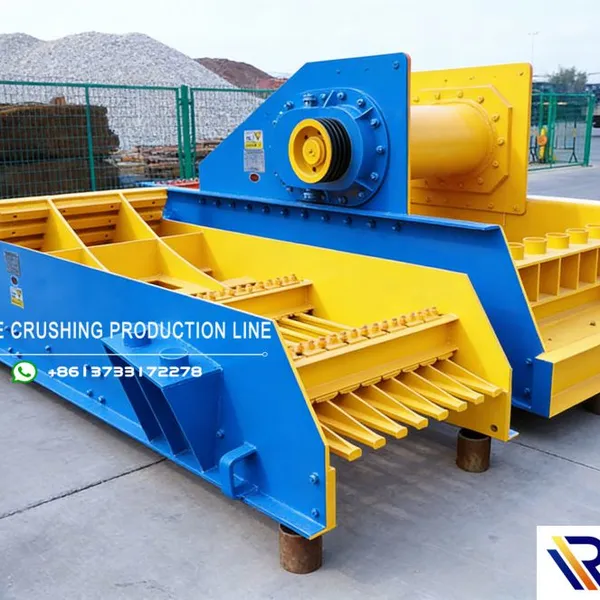

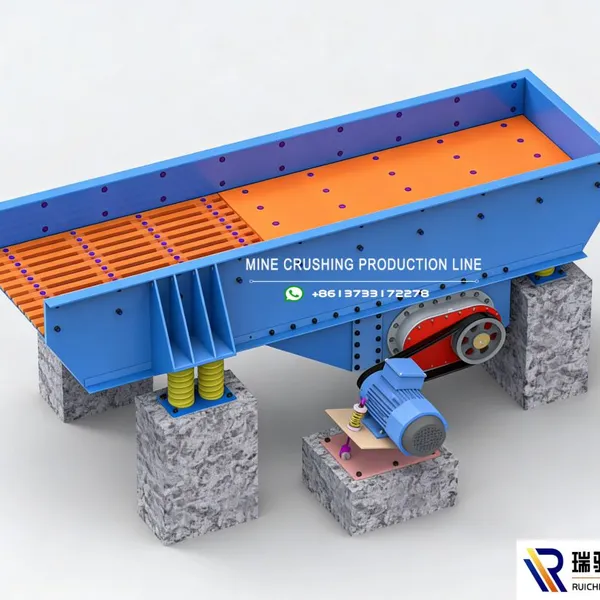

Vibrating Feeder – Key Feeding Equipment for Stone Crushing, Sand Making & Mobile Crushing Station
In stone crushing production lines, mining operations and construction waste recycling, stable material transfer from raw material silos to processing equipment is critical for continuous production. As core supporting machinery for stone crushing equipment, artificial sand making equipment and mobile crushing station, vibrating feeders precisely match the feeding demands of jaw crushers, cone crushers, vibrating screens and sand making machines. They deliver uniform, controllable material flow for large ore, wet sticky materials and fine particles, eliminating blockages, overloads and uneven feeding, laying a solid foundation for full crushing line efficient operation.
Ⅰ. Core Advantages: Solving Conveying & Feeding Challenges
Uniform Feeding & Full Equipment Protection
Low-frequency vibration (15–30Hz) ensures stable material flow with feed rate error within ±5%, protecting downstream impact crushers and sand making machines from overload. This reduces equipment downtime by over 40% and extends liner and motor service life, ideal for large aggregate crushing lines and sand manufacturing plants.
Flexible Capacity Control for Various Output Needs
By adjusting the vibration motor eccentric block angle, feed rates can be quickly modified to suit small-scale (10–50 t/h) or large-capacity (300–800 t/h) production. It easily switches between granite, limestone, basalt and river pebble without equipment replacement, fitting both fixed crushing plant and mobile crushing workflow.
Strong Material & Working Condition Adaptability
The U-shaped wear-resistant trough handles large rocks ≤800mm; anti-stick coatings handle wet materials (15–25% moisture); and closed dust-control covers meet environmental requirements, keeping dust concentration below 5mg/m³. Perfect for mining quarry, construction waste recycling and outdoor mobile crushing projects.
Ⅱ. Main Application Scenarios
Our vibrating feeder is widely matched with full set crushing and screening equipment, covering multiple industry scenarios:
Stone Crushing Lines: Evenly feed raw materials to primary jaw crushers, avoiding crushing chamber imbalance and improving overall production efficiency.
Mineral Processing Plant: Stable feeding to vibrating screens and ball mills, reducing grinding load fluctuations and improving mineral recovery rates by 3–5%.
Construction Waste Recycling: Wide troughs handle mixed waste with rebar without pre-sorting, saving manual sorting cost.
Mobile Crushing Project: Lightweight units integrate directly with tracked/wheel-mounted mobile crushers, enabling fast on-site feeding with minimal installation foundation.
Sand Making Production Line: Steady quantitative feeding for vertical shaft impact sand making machine to ensure uniform finished sand gradation.
Ⅲ. Key Interaction in Complete Production Lines
As an essential part of fixed and mobile crushing plants, vibrating feeders realize intelligent linkage with the whole production system:
Load Coordination: Automatically adjust feeding speed based on crusher load to avoid material accumulation or equipment idling.
Screening Matching: Pause or resume feeding according to screen material thickness, maintaining high screening efficiency.
Conveying Integration: Discharge directly connects with belt conveyors and bucket elevators, reducing material spillage and raw material waste.
Ⅳ. Vibrating Feeder Technical Parameter Table
| Model | Maximum feed size (mm) | Processing capacity (tons/hour) | Motor power (KW) | Obliquity of material trough (°) | Tank size (mm) |
|---|---|---|---|---|---|
| GZD-650X2300 | 300 | 80-100 | 2X1.1 | 10-20 | 650X2300 |
| GZD-750X2500 | 350 | 100-130 | 2X1.1 | 10-20 | 750X2500 |
| GZD-850X3000 | 400 | 120-150 | 2X3 | 10-20 | 850X3000 |
| GZD-1000X3600 | 500 | 150-200 | 2X3.7 | 10-20 | 1000X3600 |
| GZD-1100X3600 | 580 | 240-300 | 2X3.7 | 10-20 | 1100X3600 |
| GZD-1300X3600 | 650 | 450-600 | 2X7.5 | 10-20 | 1300X3600 |
| GZD-1500X3600 | 1050 | 450-1000 | 2X7.5 | 10-20 | 1500X3600 |
| GZD-2000X3600 | 1200 | 550-1000 | 2X10 | 10-20 | 2000X3600 |
| GZD-2500X5000 | 1500 | 650-1500 | 2X18 | 10-20 | 2500X5000 |
| ZSW-380X95 | 500 | 100-280 | 8P11 | 0-15 | 3800X280 |
| ZSW-490X110 | 630 | 150-400 | 6P15 | 0-10 | 4900X1100 |
| ZSW-490X130 | 750 | 400-700 | 6P22 | 0-10 | 4900X1300 |
| ZSW-600X130 | 750 | 400-700 | 4P22 | 0-10 | 6000X1300 |
| ZSW-600X150 | 800 | 500-900 | 4P30 | 0-10 | 6000X1500 |
| ZSW-600X180 | 900 | 700-1300 | 4P37 | 0-10 | 6000X1800 |
| ZSW-600X200 | 1200 | 800-1500 | 4P55 | 0-10 | 6000X2000 |
Ⅴ. Henan Ruichi Advantages & Service Support
Henan Ruichi Machinery is a professional manufacturer integrated with R&D, production and sales of stone crushing equipment, sand making machinery and mobile crushing station. We supply full-series vibrating feeders, customized model design, free production line layout plan, factory direct sales price, eliminate middleman profit.
Factory direct supply, stable quality and competitive cost performance
Customize feeding solution according to your raw material, output and site condition
Long-term after-sales support, technical guidance and spare parts supply
Match complete crushing, sand making and mobile crushing station equipment one-stop procurement
Ⅵ. Customer FAQ
Q1: Can your vibrating feeder match mobile crushing plant?
A: Yes, we have lightweight optimized models specially designed for tracked and wheeled mobile crushing station, easy installation and no complex foundation needed.
Q2: Can it handle wet sticky ore and large size rock?
A: Equipped with anti-stick coating and thickened wear-resistant trough, it can handle moisture 15-25% and raw rock up to 1500mm smoothly without blockage.
Q3: Do you provide customized production line design?
A: Absolutely. Our engineer team can design full stone crushing & sand making process layout according to your hourly output, raw material type and site size.
As an essential part of fixed and mobile crushing plants, vibrating feeders effectively eliminate material handling bottlenecks. Contact Henan Ruichi Machinery now to get customized feeding solutions and full crushing equipment quotation.
