Product Overview

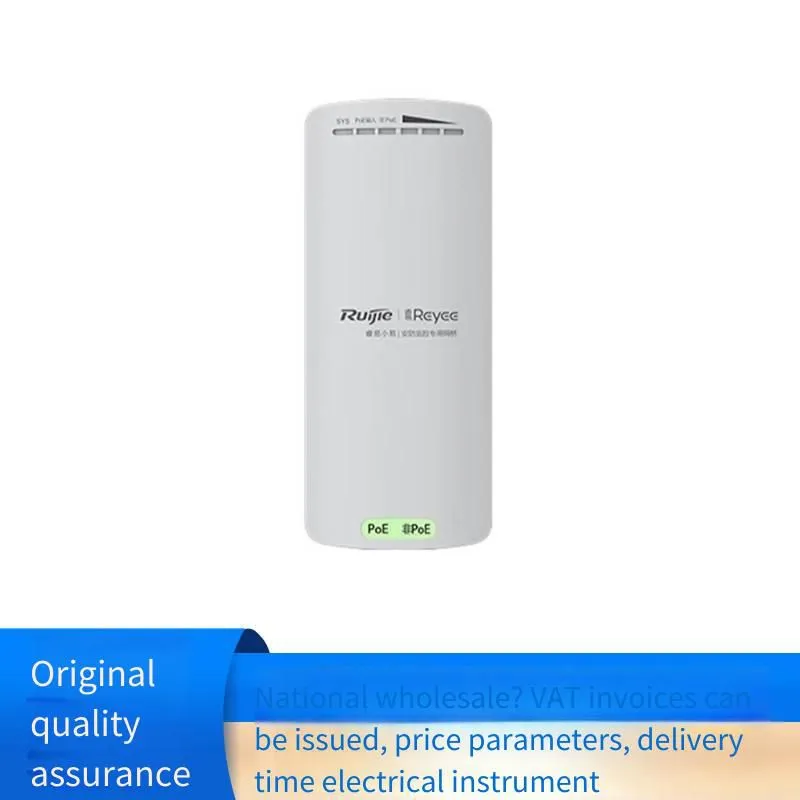

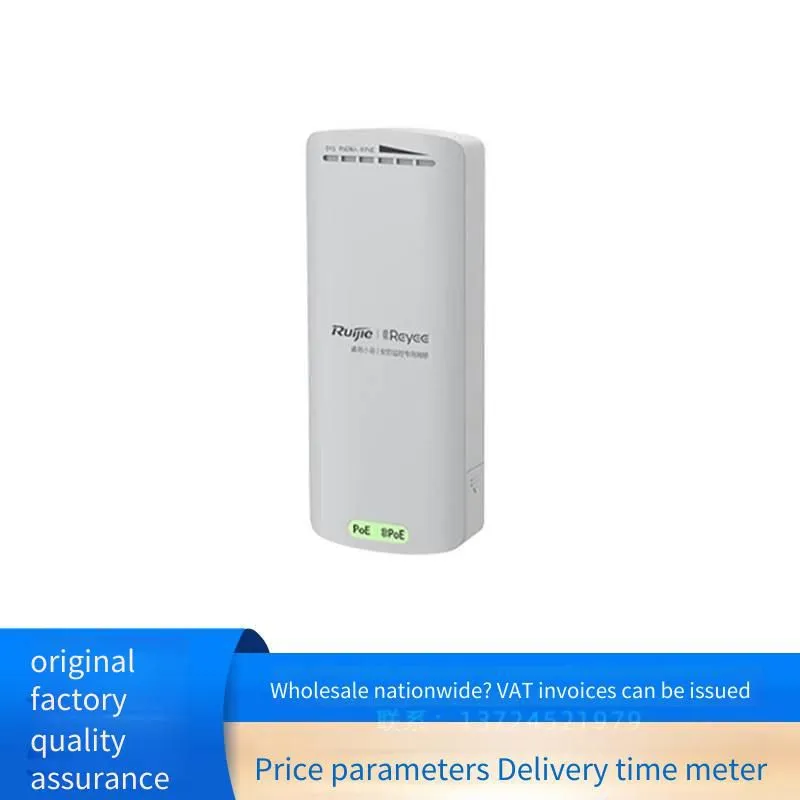

The 2.4G bridge RG-YST250F is a wireless bridge product supporting the 802.11n protocol launched by Ruijie Ruie for the monitoring video backhaul business in elevator scenarios. This product operates in the 2.4GHz frequency band, supports the two spatial stream 2x2 MIMO technology, and provides a bridge wireless rate of up to 300Mbps. The RG-YST250F is recommended for use in buildings with a height of less than 500 meters, which can well meet the bandwidth requirements of users' business for data links.
The 2.4G bridge RG-YST250F is divided into two products, the recorder end and the camera end. They are shipped in a factory-set package and are paired by default. They can be used without configuration. The recorder end is recommended to be installed at the top or bottom of the elevator shaft for connecting to a switch or a hard disk recorder. The camera end is recommended to be installed around the car for connecting to the network camera in the car.
The 2.4G bridge RG-YST250F can be remotely managed through the MACC cloud platform and the Ruie APP, including viewing the network topology and modifying configuration parameters. At the same time, the RG-YST250F also supports centralized management of all bridges in the local area network through the Ruie APP and the WEB management interface. That is, by logging in to the WEB management interface of any bridge or connecting to any bridge through the APP, you can view the topology and status information of all bridges in the local area network.
Product Features
No configuration required
The 2.4G bridge RG-YST250F is divided into two products, the recorder end and the camera end. They are paired by default at the factory and can be used without configuration.
Easy installation

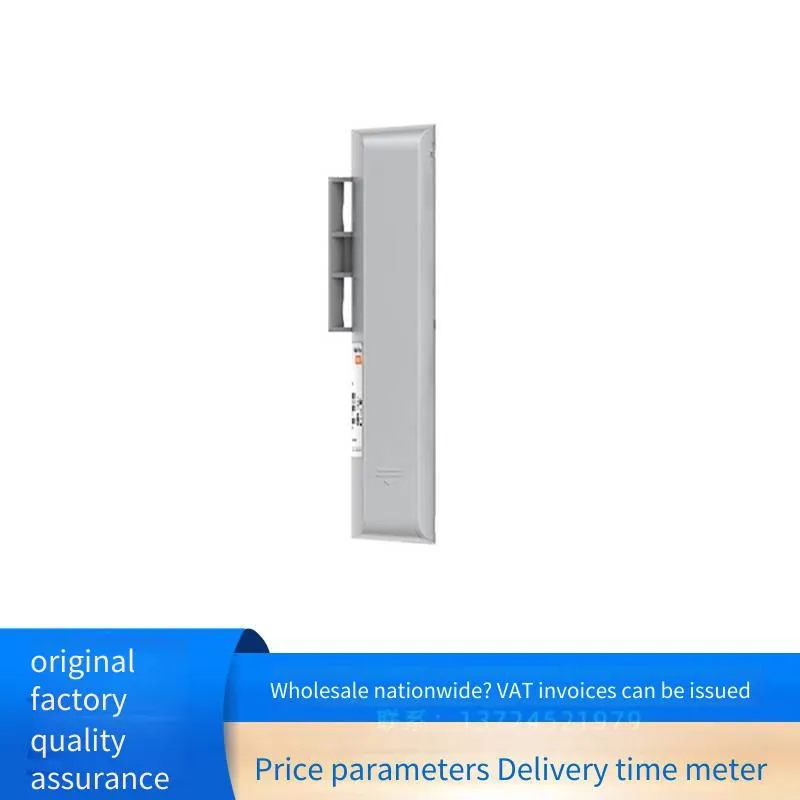

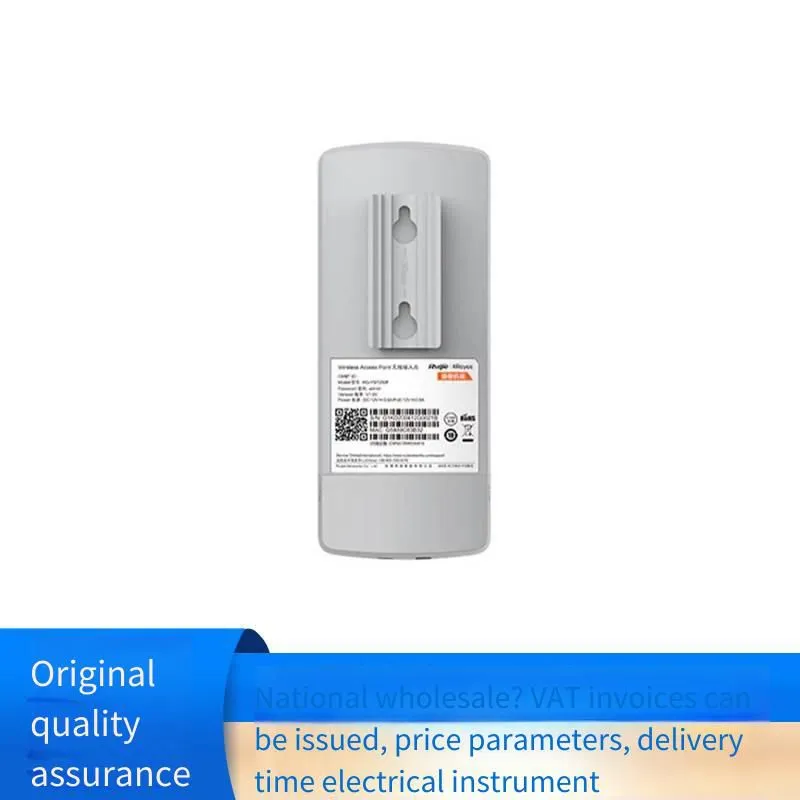

The 2.4G bridge RG-YST250F supports wall-mounted/rod-mounted installation, which is convenient and efficient. It supports two power supply methods, 12VDC and 12V non-standard PoE, and can be flexibly deployed.
Support for efficient remote and local area network operation and maintenance
The 2.4G bridge RG-YST250F can be remotely managed through the MACC cloud platform and the Ruie APP, including viewing the network topology and modifying configuration parameters. At the same time, the RG-YST250F also supports centralized management of all bridges in the local area network through the Ruie APP and the WEB management interface. That is, by logging in to the WEB management interface of any bridge or connecting to any bridge through the APP, you can view the topology and status information of all bridges in the local area network.
Reliable performance
The 2.4G bridge RG-YST250F has high data transmission bandwidth, low latency, and balanced traffic. It can ensure stable data transmission for elevator monitoring. The product design meets the IP55 dust and water protection level, operates in a wide temperature range of -30°C to 60°C, and uses high-weather-resistant materials. It can ensure long-term stable operation in elevator scenarios.
Detailed Parameters
| Product Model | RG-YST250F |
| Hardware Specifications | |
| RF Design | Dual-stream Single-frequency 2×2 |
| Operating Frequency Band | 2.4Ghz Band, 802.11b/g/n Standard |
| Antenna Type | Built-in Directional Antenna, Horizontal 70°, Vertical 70° |
| Bridging Distance | Recommended 500 meters |
| Number of Spatial Streams | 2 Streams |
| Transmission Rate | The 2.4GHz provides a wireless bridging negotiation rate of 300Mbps. |
| Transmission Power | ≤125mw |
| Dimensions | 165.5mm (Length) × 68.7mm (Width) × 42mm (Height) (Single Host Dimensions, The Dimensions of the DVR End and the Camera End are the Same.) |
| Weight | 0.3kg |
| Interfaces | 2 10/100Mbps Auto-negotiating Ethernet Ports, Support 12V Non-standard PoE Power Supply |
| 1 DC Port, Support 12V Power Supply | |
| Hardware Buttons/Dip Switches | 1 Reset Button |
| Status Indicator Lights | Supported |
| Power Supply Method | Support 12VDC Power Supply and 12V Non-standard PoE Power Supply |
| Overall Power | ＜5W |
| Environment | Operating Temperature: -30°C～60°C |
| Storage Temperature: -40°C～70°C | |
| Operating Humidity: 5％～95％ (No Condensation) | |
| Storage humidity: 5% - 95% (no condensation) | |
| Installation method | Wall-mounted/Pole-mounted |
| Protection level | IP55 |
| Lightning protection level | Common mode 4KV, Differential mode 2KV |
| RF regulations | Model approval for wireless transmitting equipment |
| Software functions | |
| Automatic bridging function | Supported. By default, the DVR and the camera are automatically bridged and paired. |
| QR code login | You can scan the device QR code through the APP to log in to the device configuration interface. |
| Device configuration method | Supports APP/Web configuration mode and APP/Web configuration synchronization. |
Broadcast and multicast acceleration function |
Supported |
