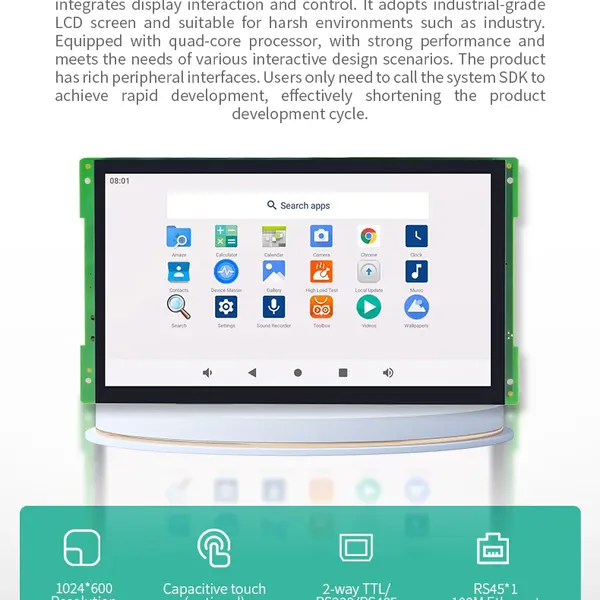

The 10.1″ Open Frame Android Panel PC, model GC-S10-A133P, is designed as a compact embedded Android platform for industrial control systems, OEM panels and custom integrations.
This product is supplied as an open frame Android Panel PC. Touch panel, front glass, enclosure and mechanical design are intentionally left to the system integrator, providing maximum flexibility for customized installations.
Powered by the Allwinner A133P quad-core ARM Cortex-A53 processor (clock speed up to 1.8GHz), the platform delivers stable performance with low power consumption, suitable for continuous industrial operation.
✔ Open Frame Android Panel PC architecture✔ Optimized for embedded and industrial use✔ Flexible serial, GPIO and expansion options
Processor & Graphics
Allwinner A133PQuad-core ARM Cortex-A53 (up to 1.8GHz)GE8300 GPUDesigned for embedded Android UI and control applications
Display
10.1″ IPS LCD PanelResolution: 1024 × 600Capacitive Touch SupportBrightness: 300 nits
Memory & Storage
RAM: 1GB (2GB / 4GB Optional)eMMC: 8GB (Expandable up to 128GB)TF Card Support (up to 256GB)
Connectivity & I/O
10/100Mbps Ethernet (RJ45)2× COM Ports (RS232 Default)Optional TTL / RS485Optional Relay OutputUSB 2.0 & USB OTGWiFi 2.4GHz + Bluetooth 4.2
Operating System & Power
Android 10 (Default)Optional Linux QT / UbuntuDC 12V ±5% / DC 24V ±5%Reset & Burn Button

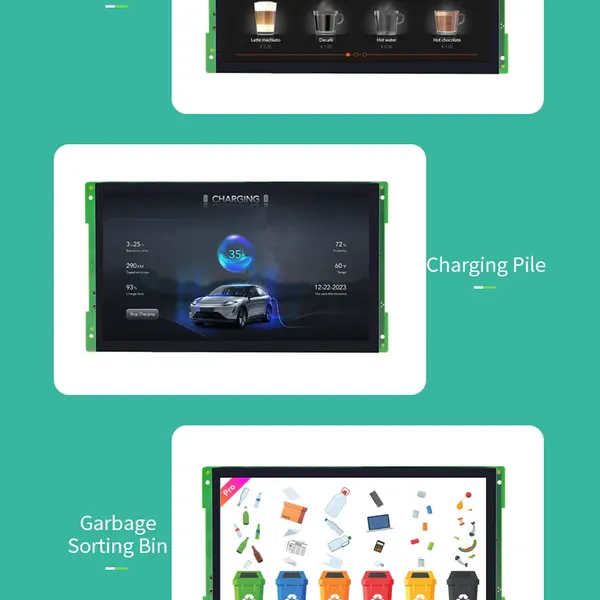

The GC-S10-A133P is ideal for industrial Android control panels, automation terminals, IoT gateways, access systems and custom embedded solutions requiring a reliable open frame Android Panel PC platform.
