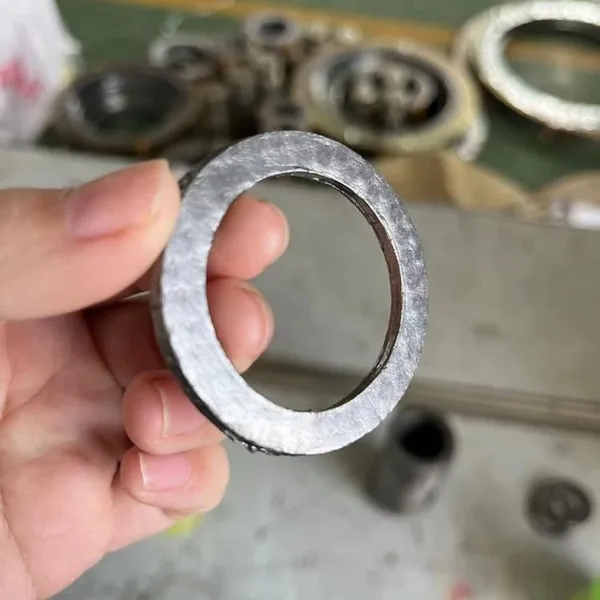

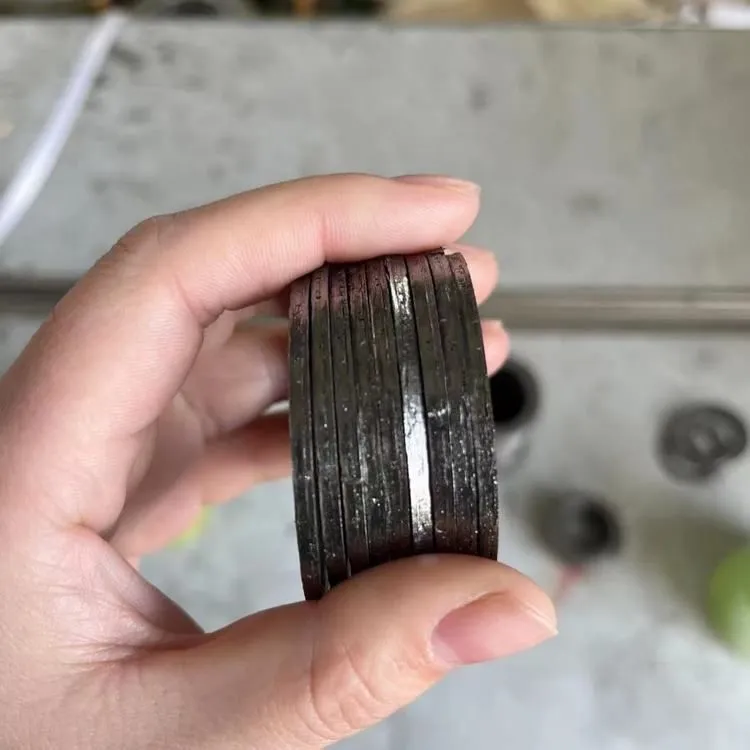

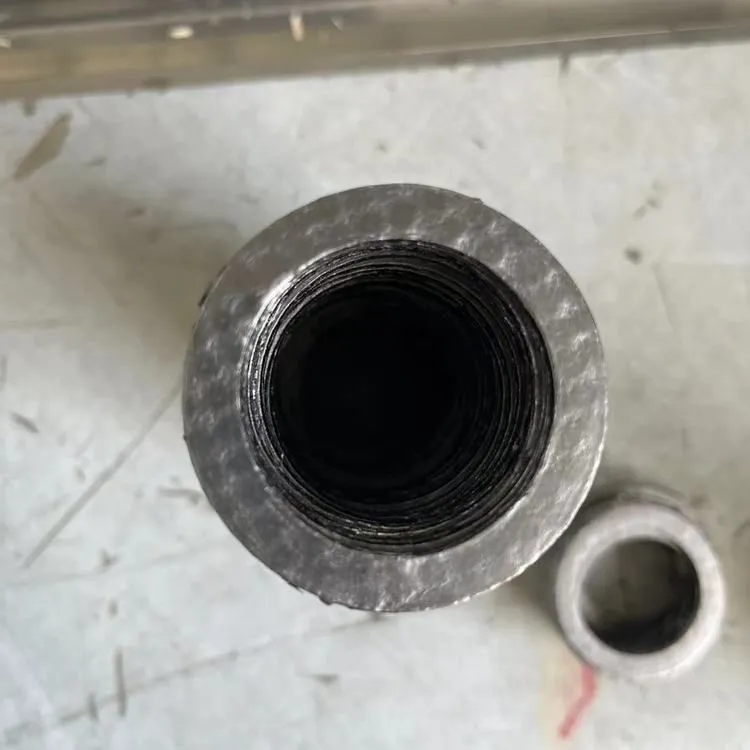

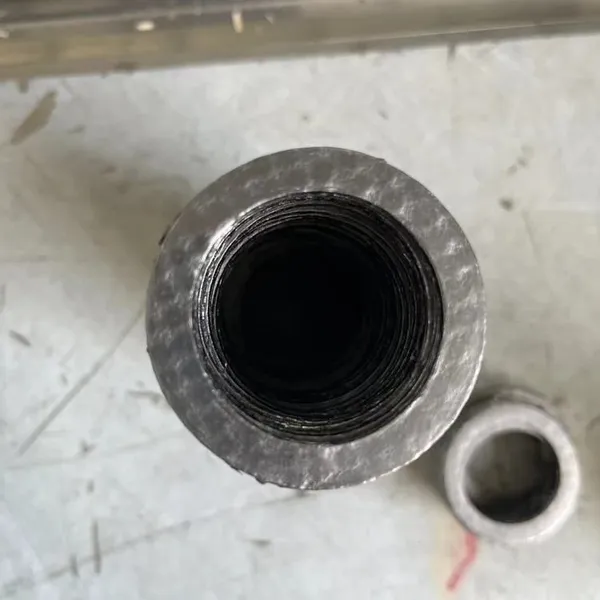

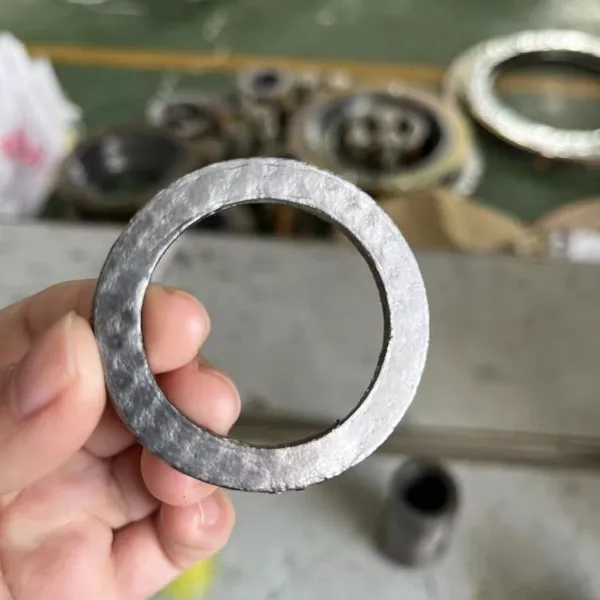

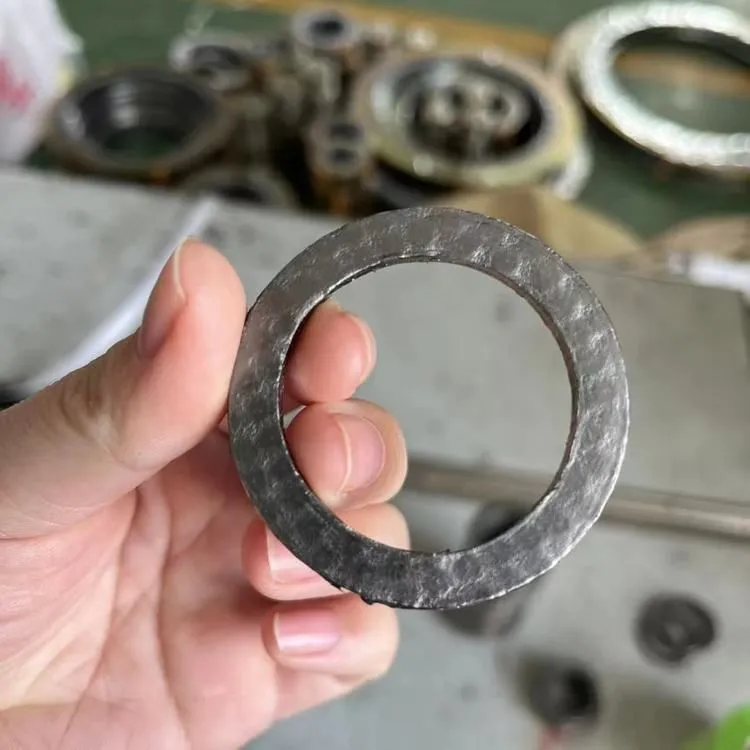

Help CenterPure Flexible Graphite Gasket Metal-free Sandwich Pump and Valve Sealing Gasket
Product Spotlights
Related Products
-
Corrosion-resistant Boiler Pipe Flange Sealing Flexible Graphite Sealing Tape With Metal Wire Reinforcement, Whole RollNegotiableMOQ: 100 Rolls -
Graphite Composite Plate 304 Stainless Steel Reinforced High Temperature and High Pressure Flange Sealing PlateNegotiableMOQ: 50 Sheets
-
Perforated Graphite Composite Gasket 304 Stainless Steel Reinforced High Temperature and High Pressure Flange Gasket Boiler SteamNegotiableMOQ: 100 Blades
-
Industrial Rubber Mat Black Flange Sealing Gasket Oil-resistant Waterproof Rubber Sheet CustomizableNegotiableMOQ: 100 Sheets
-
Metal-reinforced Graphite Composite Gasket; High-temperature Steam Flange Sealing GasketNegotiableMOQ: 100 Blades
I. Product Introduction Graphite gaskets are mainly divided into two categories: flexible graphite composite gaskets (high-strength graphite gaskets and metal graphite spiral wound gaskets. Using high-purity expanded flexible graphite as the sealing core, combined with 304/316 stainless steel serrated rings and steel strips through pressing, they possess excellent high-temperature resistance and compression recovery performance. Replacing traditional asbestos gaskets, they are widely used in steam, high-temperature oil, and weak acid/alkali flanges, valves, and boiler seals, supporting custom cutting in circular, square, bolt-hole, and irregular non-standard shapes. II. Main Classifications Pure Flexible Graphite G (No metal insert) Die-cut from a single sheet of expanded graphite, featuring a soft texture and good thermal conductivity/lubrication, suitable for low-pressure pump valves exhaust pipes, and small equipment seals; temperature resistant from -200 to 650°C, affordable price. Metal-Reinforced Flexible Graphite Composite Gaskets (-strength graphite gaskets) Sandwiched with stainless steel serrated rings, available in un-edged, inner-edged, outer-edged, and inner/outer-edged versions; is significantly improved, not easily broken, universally applicable to medium-to-high pressure steam pipelines and boiler flanges. Metal Graphite Spiral Wound Gaskets Alternatingly wound with 04 stainless steel V-shaped steel strips and flexible graphite, available in basic, inner ring, outer ring, and inner/outer ring versions; strongest recovery performance, specifically for-pressure, high-temperature, and heavy-duty operating conditions (power plants, heat exchangers, high-temperature boilers). III. Core Product Advantages Ultra-wide temperature: Not brittle at low temperatures (-200°C) and stable sealing at high temperatures (650°C), does not soften or leak during long-term use with steam hot oil; Leak-proof compression recovery: Excellent compression recovery performance of the graphite material adapts to slight flange deformation, preventing steam, oil, and water leakage; Excellent thermal conductivity heat dissipation: Built-in graphite thermal layer quickly dissipates high temperatures from the flange, preventing high-temperature aging and failure of the gasket; High mechanical strength and durability: Reinforced by inserts/steel strips, it is not easily cracked or crumbled during assembly and disassembly, with a service life far exceeding pure graphite; Eco-friendly and asbestos-free: Contains asbestos dust, complies with industrial environmental protection standards, and is safe for workshop use; Oil-resistant and compatible with weak acid/alkali media: Suitable for steam, heat transfer oil, oil, hot water, and weakly corrosive chemical fluids; Flexible processing: Can be die-cut into circular, square, and irregular shapes, with custom inner/outer diameters and thicknesses IV. Applicable Media High-temperature steam, heat transfer oil, engine oil, hot water, boiler flue gas, weak acid/alkali solutions, industrial hot oil, pipeline vapor. V. Applicable Industries and Equipment Thermal power plants, steam boilers, chemical pipelines, valve flanges, reaction vessels, heat exchangers, water pumps and hot oil pumps, automobile and exhaust pipes, metallurgical high-temperature equipment, textile and dyeing heating pipelines.
