Description

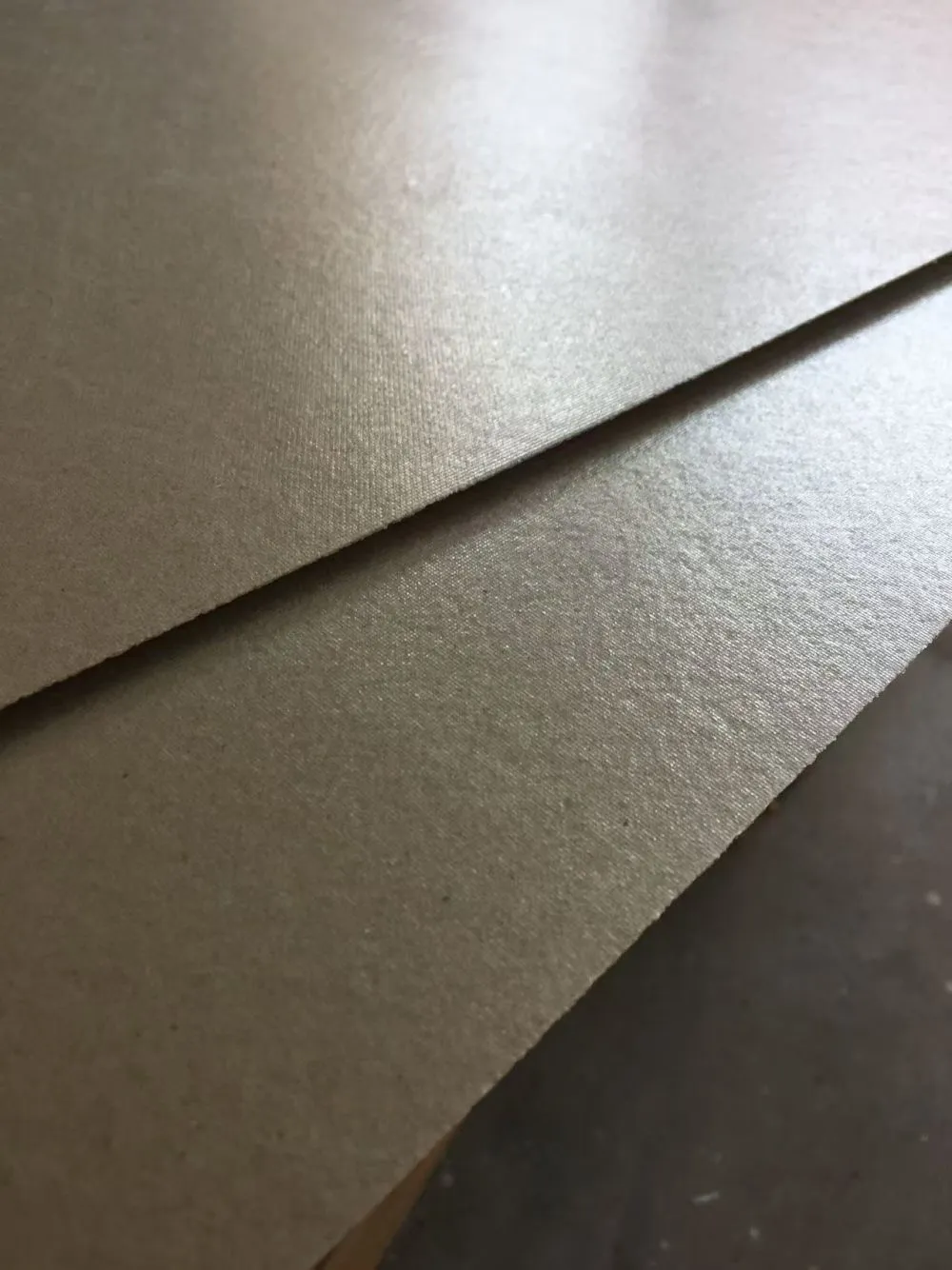

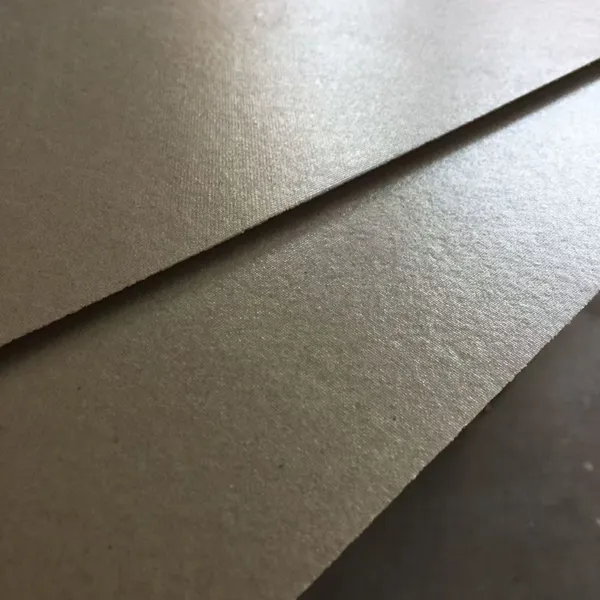

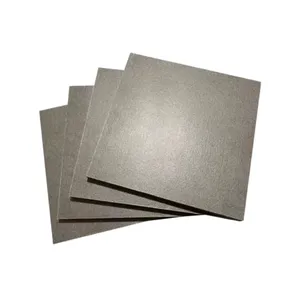

Rigid Phlogopite Mica Sheets are high-performance insulation boards composed of ~90% natural phlogopite mica paper bonded with 10% high-temperature silicone resin. They are ideal for high-heat environments, offering continuous thermal resistance up to 750–850°C and a dielectric strength of over 16 kV/mm.These amber-to-brown sheets are highly prized for industrial and consumer heating applications where both structural integrity and extreme thermal insulation are required.
Features
Heat Resistance: Phlogopite withstands continuous temperatures of 750°C to 850°C and peak temperatures up to 1000°C, outperforming its counterpart, Muscovite.
Electrical Insulation: Delivers high breakdown voltage, making it an excellent barrier against electrical arcs and short circuits.

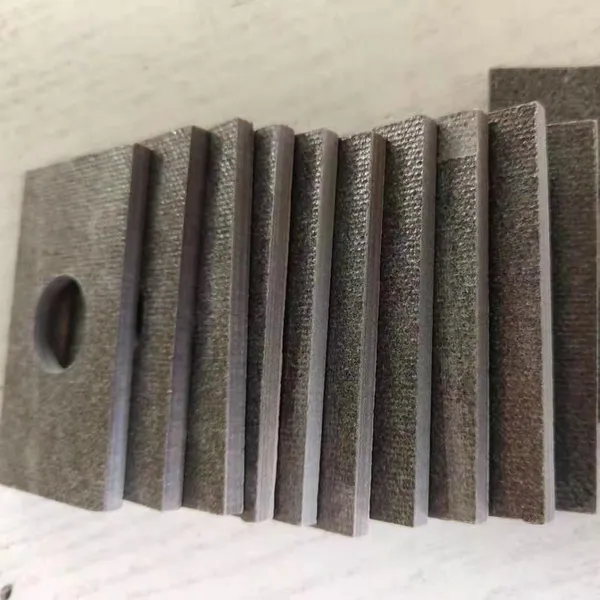

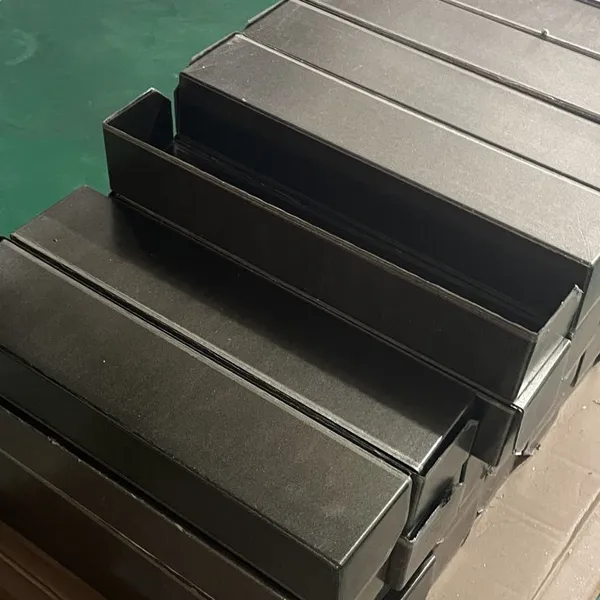

Mechanical Strength: Provides rigid, self-supporting structure that is easy to saw, drill, or machine into custom shapes without delaminating.
Standard Sizes: Available in standard sheet dimensions like 1000 mm × 1200 mm, with thicknesses ranging from 0.1 mm up to over 50 mm
Applications
Home Appliances: Used as supporting frames and insulators for heating elements in toasters, hair dryers, and irons.
Industrial Equipment: Acts as a heat shield or divider in heavy-duty equipment like industrial furnaces, induction furnaces, and circuit breakers.
Electronics & EV: Utilized in power capacitors, transformers, and electric/hybrid vehicle components.
| Type | Item | Feature |
| RW802 | Rigid Muscovite Mica Sheet | Rigid, White |
| RG802 | Rigid Phlogopite Mica Sheet | Rigid, Gold |
| RW802-L | Low Smoke Rigid Muscovite Mica Sheet | low bond content |
| RG802-L | Low Smoke Rigid Phlogopite Mica Sheet | low bond content |
| RW802-H | High Bond Content Muscovite Mica Sheet | High bond content, high density, high strength |
| RG802-H | High Content Rigid Phlogopite Mica Sheet | High bond content, high density, high strength |
| RW802-S | Rigid Synthetic Mica Sheet | - |
| R: Rigid W: White G: Gold L: Low smoke and blister-free H: High resin, high strength S: Synthetic | ||
| Common Properties | Unit | Test Standard | RW 802 |
RW 802-L |
RW 802-H |
RG 802 |
RG 802-L |
RG 802-H |
RW 802-S |
| Density | g/cm³ | IEC60371 | 1.7~2.35 | ||||||
| Water absorption 24h/23℃ | % | GB/T5019 | ≤1 | ≤2 | ≤0.5 | ≤1.5 | ≤2.5 | ≤1 | ≤1 |
| Mica Content | % | IEC60371 | ≥90 | ≥92 | ≥88 | ≥90 | ≥92 | ≥88 | ≥90 |
| Bonding Content | % | IEC60371 | ≤10 | ≤8 | ≤12 | ≤10 | ≤8 | ≤12 | ≤10 |
| Flextural Strength | Mpa | ISO178 | ≥160 | ≥120 | ≥180 | ≥140 | ≥100 | ≥160 | ≥160 |
| Temp resistance continuous | ℃ | IEC60371-2 | 500 | 500 | 500 | 700 | 700 | 700 | 1000 |
| Temp resistance intermittent | ℃ | IEC60371-2 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1100 |
| Heat Loss as 500℃ | % | IEC60371 | ≤1 | ≤1 | ≤2 | ≤1 | ≤1 | ≤2 | ≤1 |
| Heat Loss as 700℃ | % | IEC60371 | ≤2 | ≤1.5 | ≤3 | ≤2 | ≤1.5 | ≤3 | ≤2 |
| Dielectric Strength | Kv/mm | IEC60243 | ≥20 | ≥18 | ≥20 | ≥20 | ≥18 | ≥20 | ≥20 |
| Volume resistivity | Ω/m | IEC6093 | ≥10^10 | ||||||
| Thermal conductivity | W/m.K | ASTM D5470-17 | 0.23 | ||||||
| Flammability | Class | UL | V-0 | ||||||
