Help CenterHigh Flow Bag Filter for Coatings, Oil Products and Water Treatment
Product Spotlights
Related Products
-
Low Pressure Drop Bag Filter for Chemical Water TreatmentUS$ 800 - 1000MOQ: 1 Piece -
High Flow Security Filter for Chemical, Power Plant & Industrial Pure Water TreatmentUS$ 800 - 1000MOQ: 1 Piece
-
Multimedia Filter for Water Treatment, Raw Water Pretreatment Solid-liquid Separation EquipmentUS$ 800 - 1000MOQ: 1 Piece
-
Pall HFU Ultipleat High Flow Pleated Filter CartridgeUS$ 50 - 60MOQ: 1 Piece
-
Hydac Replacement Filter Element Hydraulic Oil Filter for Engineering MachineryUS$ 50 - 60MOQ: 1 Piece

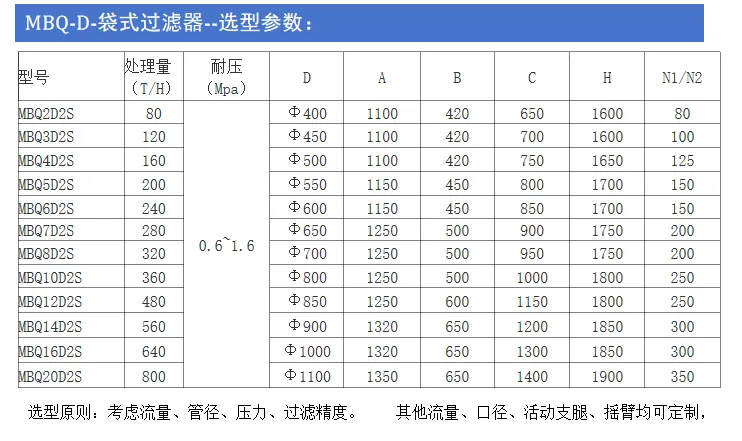

Brand: MTModel: MBQDSFilter Element: PP Filter Bag / Metal Filter BagApplication: Liquid Impurity RemovalFlow Pattern: Side-in Top-outMaterial: 304, 316L Stainless SteelConnection Type: FlangeWorking Pressure: ＜1.0 MPaFlow Rate: 1~1000 m³/hWorking Temperature: ＜45 ℃
Design Standards:GB/T26114-2024 General Technical Specification for Filters for Liquid Filtration JB/T11713-2013 Bag Filters for Liquid Filtration
Application Scope:Water Treatment: Industrial wastewater treatment, drinking water purification, swimming pool circulating water filtration Chemical Industry: Impurity removal filtration for coatings, inks, resins and adhesives Food & Beverage: Clarification filtration for edible oil, fruit juice, beer and syrup Pharmaceutical Industry: Liquid medicine filtration, injection impurity removal and API refining Automotive Industry: Pretreatment liquid and lubricating oil filtration for coating lines
Brief Introduction：

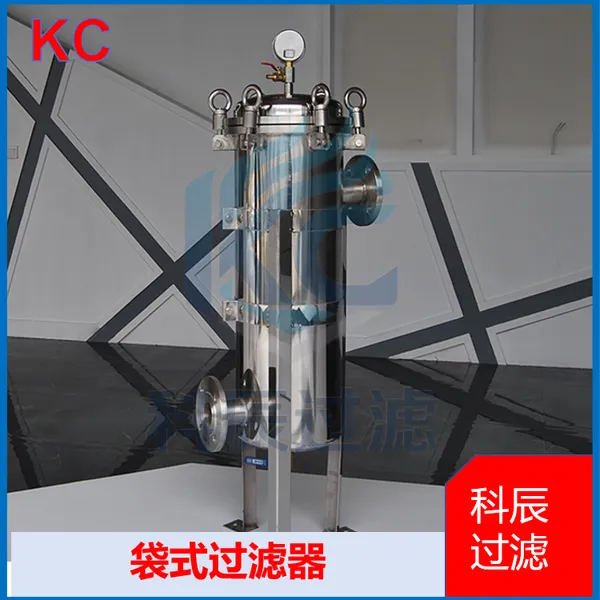

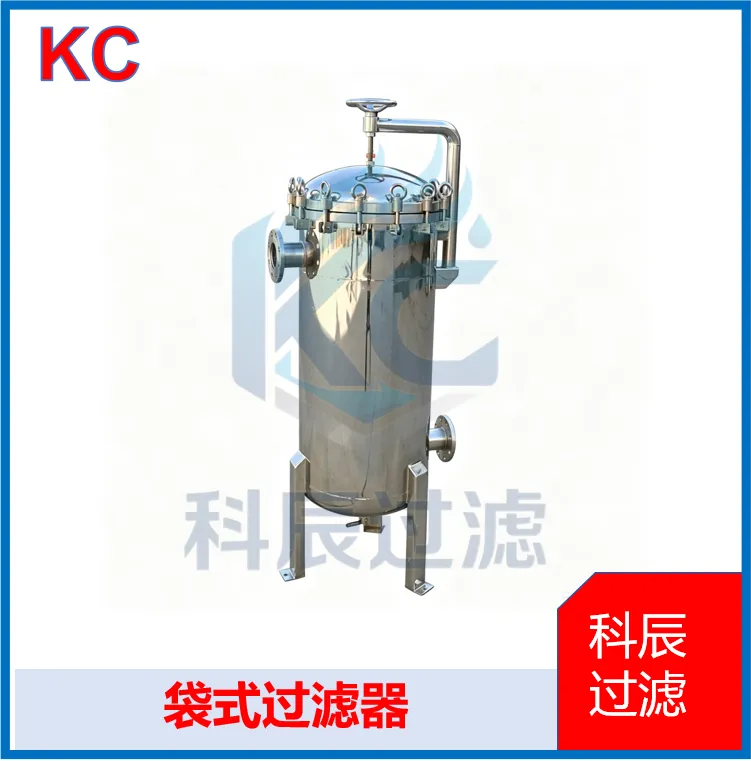

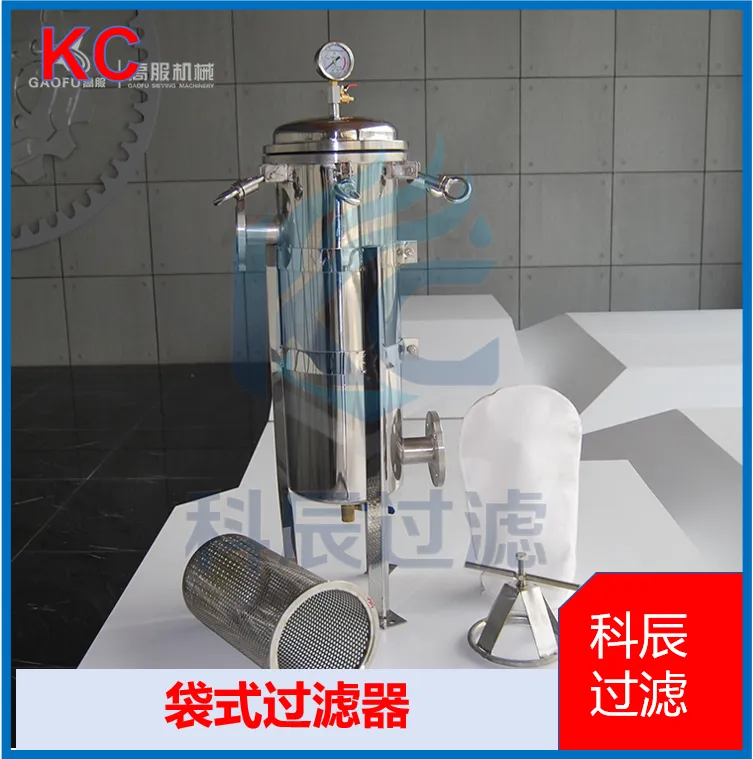

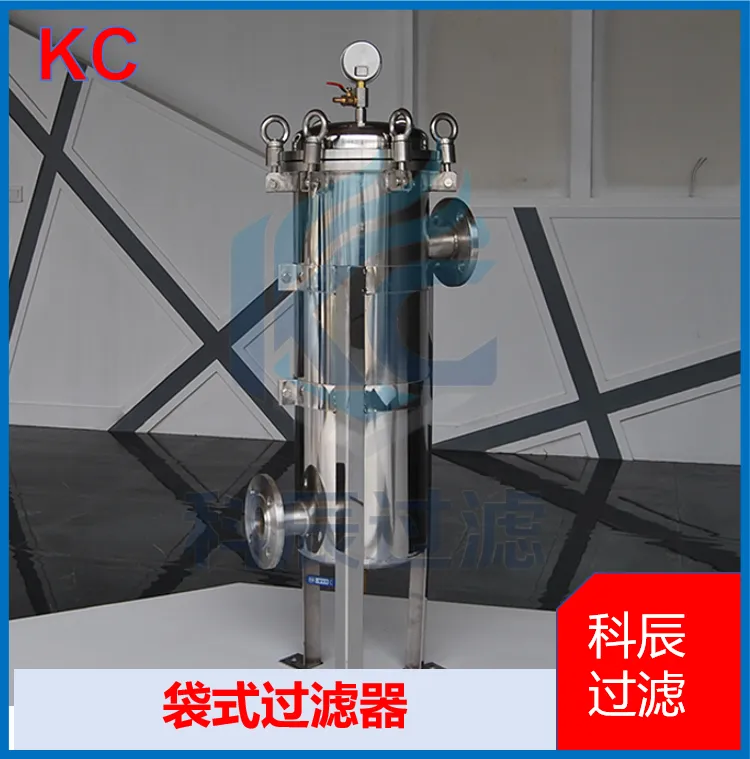

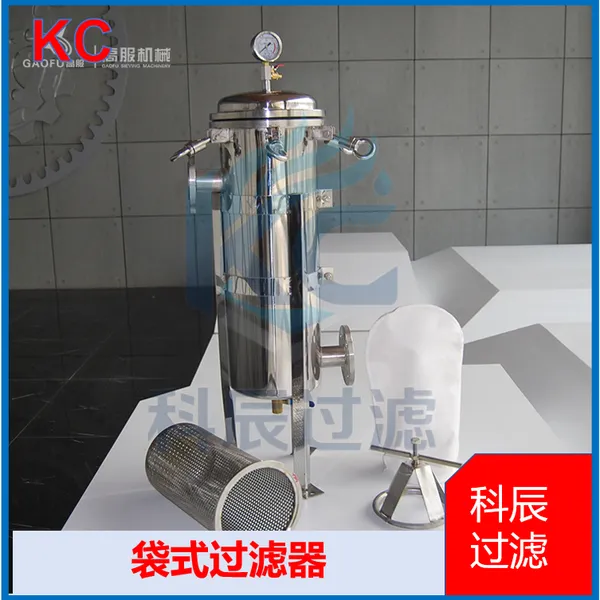

The bag filter is a multi-purpose filtration equipment featuring novel structure, compact size, simple and flexible operation, energy saving, high efficiency, fully enclosed operation and wide adaptability. It is a new type of filtration system composed of three main parts: filter housing, filter support basket and filter bag, with concise and compact construction. Liquid to be filtered enters through the filter inlet and flows into the filter bag. After being intercepted by the filter bag, clean liquid flows out from the filter outlet. Impurities are trapped inside the filter bag, and the equipment can resume operation once the filter bag is replaced. It boasts many advantages including rational structure, reliable sealing, high flow capacity and easy operation. In particular, the risk of side leakage of filter bags is low, filtration precision can be guaranteed steadily, and filter bags can be replaced rapidly to reduce operating costs.
Low risk of filter bag side leakage, effectively guaranteeing filtration quality.
Bag filtration withstands higher working pressure with low pressure loss and low operating cost, delivering remarkable energy-saving effect.
The filtration precision of filter bags keeps improving and can reach 0.5 μm.
Bag filtration features large throughput, compact size and high dirt holding capacity.
Thanks to the working principle and structure of the bag filtration system, filter bags can be replaced quickly. The filter requires no cleaning, saving labor and time.
Filter bags can be reused after cleaning to cut costs.
Bag filtration enjoys wide application range, flexible operation and various installation methods.
