1.Brief Description:

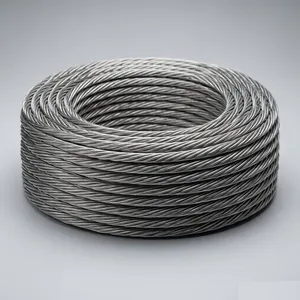

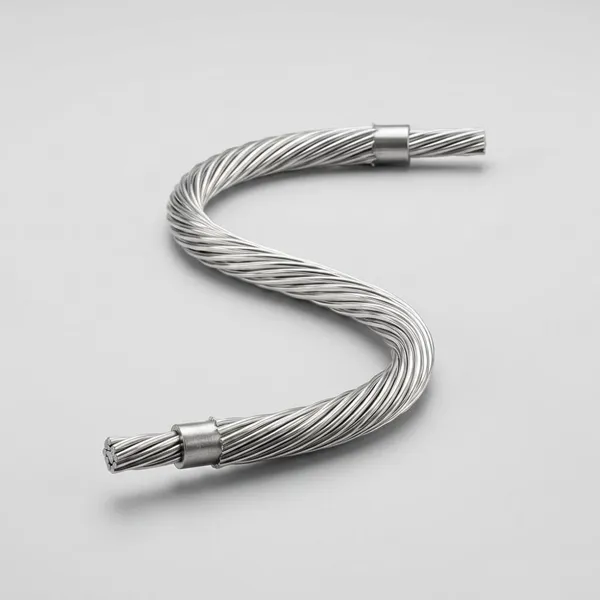

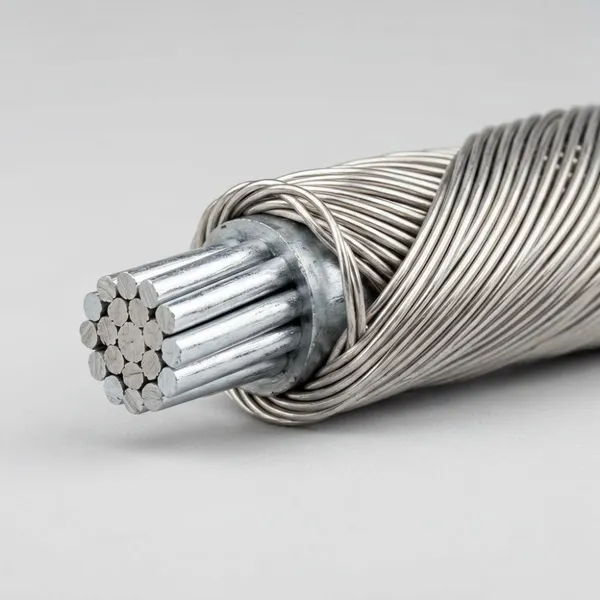

ACSR (Aluminum Conductor Steel Reinforced), consisting of a galvanized steel core which is surrounded by concentric layers of aluminum wires, and can becorrosion resistant if necessary. It is widely used in the overhead power distribution system.
2.Application:
ACSR conductor have been widely used in power transmission lines with various voltage.
Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
3.Standard:
We can supply this conductor according to different recognized standards,
such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110,
and customers’ special specifications also can be satisfied.
4.Package:

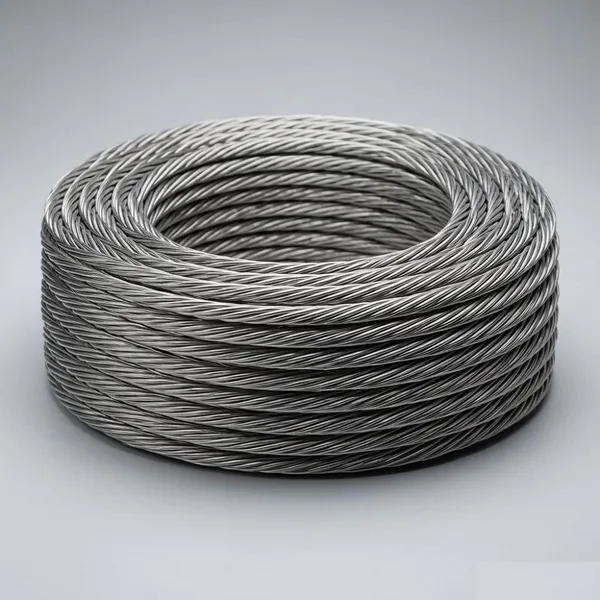

In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
5.Material:
Conductor:AL1350 pure aluminum
Steel core:G1A or G2A steel wire
Our ACSR (Aluminum Conductor Steel Reinforced) conductors are engineered for high-performance overhead power transmission, combining high-purity aluminum layers for exceptional conductivity and a galvanized steel core to deliver superior tensile strength. Leveraging the skin effect, the outer aluminum strands carry nearly all the current, minimizing energy loss while the steel core provides robust mechanical support to reduce line sag, enabling longer span installations across complex terrains like mountains, rivers and hilly areas. These conductors meet international IEC and GB standards, with strict quality control covering zinc coating uniformity, tight stranding and zero defects detected via online X-ray inspection. They feature excellent heat resistance, anti-corrosion properties and stable electrical performance, making them ideal for 110kV-500kV and above high-voltage transmission trunk lines, new energy farm collection circuits and large-scale power grid upgrade projects. Available in full specifications from standard to reinforced types, our ACSR conductors cut overall line construction costs, extend service life and ensure reliable, low-loss power delivery for decades of continuous operation.
Industrial Standard Type
ACSR Conductor - Steel Reinforced Aluminum Conductor for Overhead Power Transmission Lines
Standard ACSR Bare Conductor - Full Range Specifications for Power Engineering Projects
-
High-Quality ACSR Aluminum Conductor - Galvanized Steel Core for Overhead Lines
Performance Highlight Type
High Strength ACSR Conductor - Large Span Corrosion Resistant Overhead Transmission Cable
High Conductivity ACSR Wire - Low Loss Steel Reinforced Aluminum Conductor for HV Lines
-
Long Lifespan ACSR Conductor - Anti-Corrosion Design for Long-Distance Power Transmission
Marketing & Supply Chain Type
ACSR Steel Reinforced Aluminum Conductor - One-Stop Sourcing for Power Project Overhead Cables
Factory Direct ACSR Bare Conductor - Customizable Sizes with Fast Delivery
-
HV Transmission Grade ACSR Conductor - Bulk Supply with Competitive Wholesale Price
