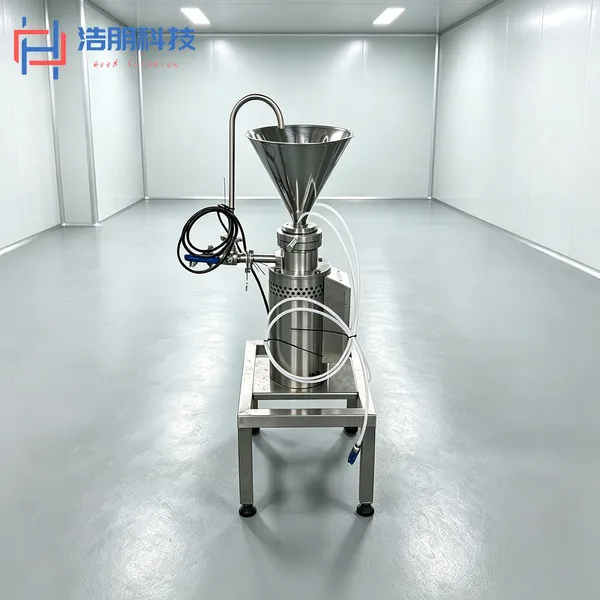

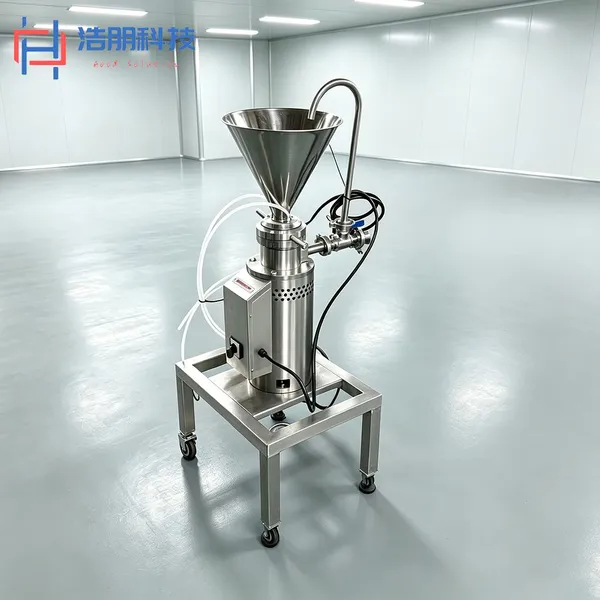

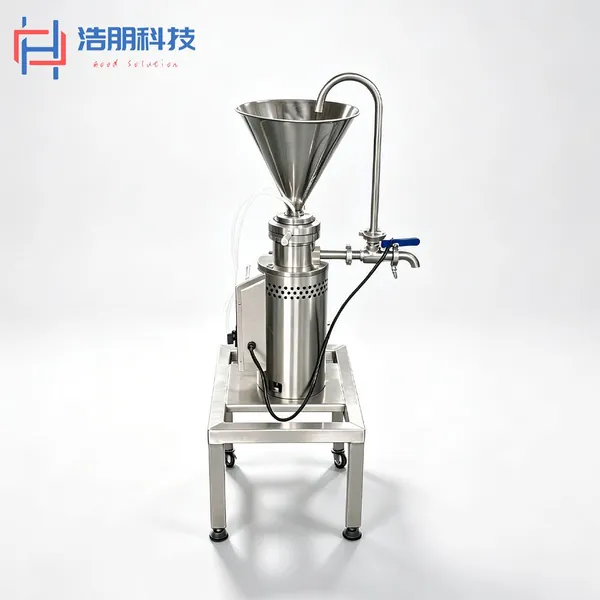

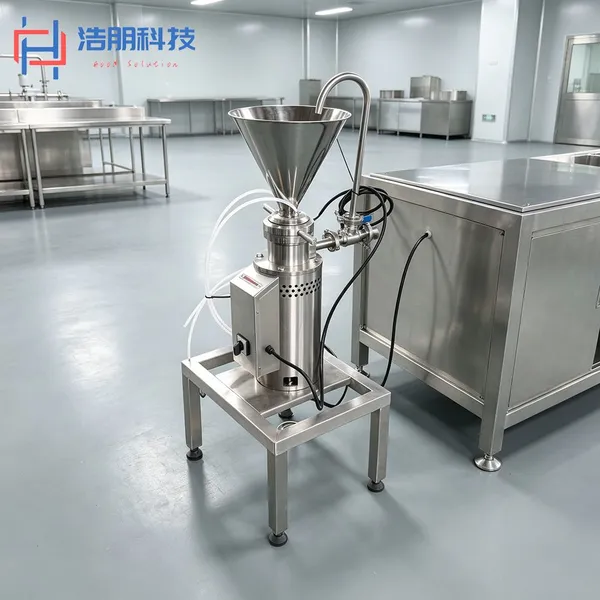

Help CenterIndustrial Colloid Mill High Shear Wet Grinder SUS304 Emulsifier Homogenizer High Viscosity Food Processing Equipment
Product Spotlights
Related Products
-
Berry Pulping Machine SUS304 Blueberry Strawberry Pulp Extractor Seed Separator Fruit Puree Processing EquipmentNegotiableMOQ: 1 Piece -
Fresh Fruit Juice Production Line, Processing Capacity of 0.5-10T/D, Can be Customized for Sample Testing DesignUS$ 50000 - 4000000MOQ: 1 Piece
-
Automated Factory-customized Fruit and Vegetable Production Line, Coconut Water Beverage Processing and Filling.US$ 10000 - 5000000MOQ: 1 Piece
-
Laboratory DSI Steam Sterilization Beverage and Fruit Juice Pasteurization Machine Fresh Milk Yogurt Sterilized Filling EquipmentUS$ 35000 - 50000MOQ: 1 Piece
-
Automated Factory Bubble Tea Popping Pearl Production Line, Juice Bobo Making Machine, Pearl Popping MachineUS$ 10000MOQ: 1 Piece
Overview:
Engineered for high-performance wet milling and homogenization, this Colloid Mill is ideal for processing a wide range of high-viscosity materials up to 50,000 mPas. Featuring adjustable stator/rotor clearances and multiple grinding/shearing speeds, it delivers precise particle size reduction down to 2-50 µm. Designed for industrial reliability, it operates smoothly under pressures up to 16 bar.
Key Features:
Precision Milling: Adjustable stator/rotor gap settings and variable grinding/shearing speeds allow for customized processing and a highly uniform particle size of 2-50 µm.
High-Pressure Operation: Robust design capable of operating efficiently under pressures up to 16 bar, suitable for high-viscosity materials up to 50,000 mPas.
Advanced Mechanical Seal: Equipped with a high-performance mechanical seal made from wear-resistant materials, ensuring long service life and leak-free operation.
Hygienic & Easy to Clean: Features a high-quality surface finish for easy cleaning and maintenance. Constructed from premium SUS304 (0Cr18Ni9) stainless steel. Custom materials and surface treatments are available upon request.
Quiet & Stable: Engineered for low-noise operation, providing a better working environment while maintaining high processing efficiency.
Technical Specifications:
Rated Capacity: 0.1 - 0.3 T/H
Particle Size: 2 - 50 µm
Rotor Speed: 6000 rpm
Motor Power: 0.75 kW
Power Supply: 3-Phase / 380V / 50Hz
Material: SUS304 (0Cr18Ni9) Stainless Steel
