Help CenterMobile Oil Purifier
Product Spotlights
Equipped with multi-stage gradient filtration system to efficiently remove solid particles, rust, sludge and metal wear debris, rapidly upgrade oil cleanliness level.
Related Products
1 Product Overview

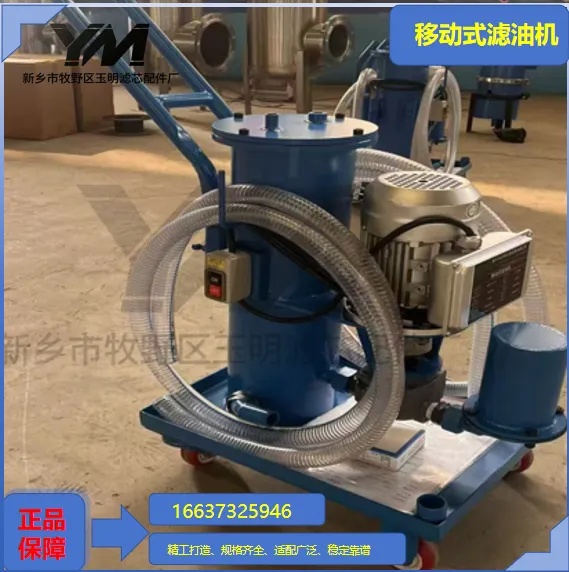

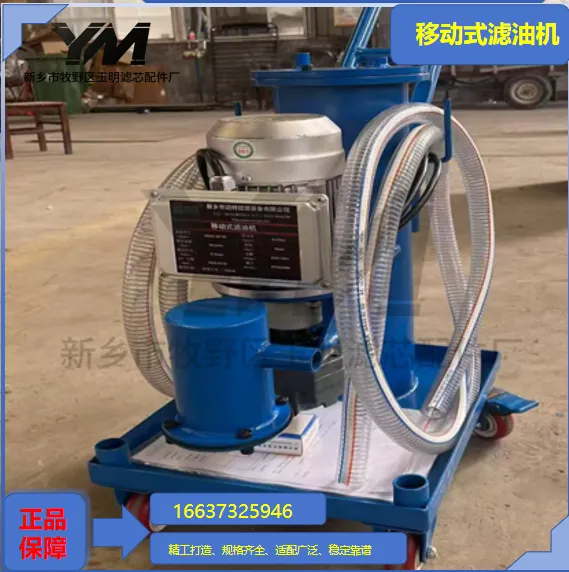

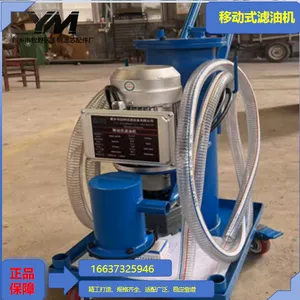

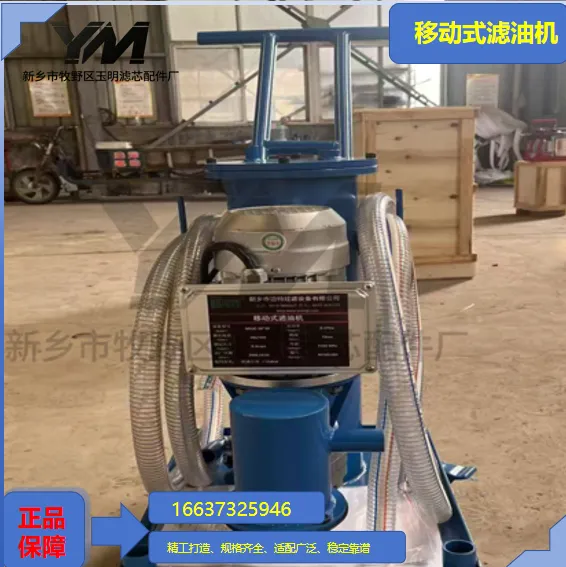

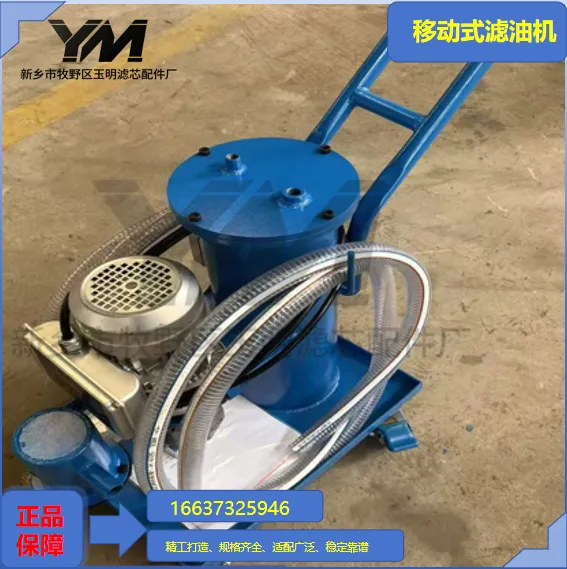

Mobile Oil Purifier is a movable modular oil treatment equipment, divided into precision filter type, coalescence dehydration type and vacuum purification type.During long-term operation of machinery, lubricating oil and hydraulic oil accumulate dust, metal debris and water, leading to oil contamination. Solid particles accelerate wear of moving parts and block precision valves; water causes oil emulsification and corrosion.Equipped with moving casters, the unit can be transported conveniently for circulating purification of contaminated oil inside tanks or hydraulic systems. Simple filter models remove solid particles only; coalescence models realize simultaneous dehydration and particle removal; vacuum mobile purifiers deeply remove dissolved water and break emulsions. Widely used for on-site oil treatment of generators, hydraulic stations, wind turbine gearboxes, rolling mills and heavy reducers.
2 Working Principle
Type 1: Precision Filter Mobile Purifier
Contaminated oil is sucked by oil pump and passes through coarse, fine and ultra-precision filters step by step to trap solid pollutants. Clean oil flows back to the tank, and continuous circulation improves oil cleanliness.
Type 2: Coalescence Separation Mobile Purifier
Oil flows through coalescing elements; tiny water droplets merge into larger drops, separated by separating elements. Water settles in collecting chamber for periodic draining, while solid impurities are captured by filter cartridges to achieve simultaneous dehydration and filtration.
Type 3: Mobile Vacuum Oil Purifier
Oil is preheated and enters vacuum separation chamber. Water vaporizes under vacuum and condensed for collection. Oil passes multi-stage filters to remove solid particles, realizing integrated dehydration, demulsification and impurity removal.
3 Main Structure
Mobile frame with universal casters, inlet strainer, oil transfer pump, electric control cabinet, multi-stage filter elements, pressure gauges, quick couplings, overflow relief valve. Optional parts: heating assembly, vacuum separation tower, coalescence filter set, condensate collector.
4 Technical Specifications
Rated Flow Rate: 30L/min ~ 300L/min
Working Pressure: 0～0.4MPa
Filtration Rating: 1μm / 3μm / 5μm / 10μm optional
Control: Local electric control box
Applicable Oil: Turbine oil, hydraulic oil, gear oil, compressor oil
Power Supply: 380V 3-phase (220V single-phase available for compact models)
Installation: Four-wheel mobile type
Optional accessories: Vacuum dehydration module, constant temperature heater, oil-water sensor, online differential pressure monitor
5 Application Scope
Thermal & hydropower generating units, wind turbine gearbox maintenance, steel mill rolling hydraulic system, mining engineering machinery, port hydraulic equipment, plastic & rubber injection hydraulic stations, marine power systems, heavy gear transmission equipment.
6 Installation & Operation Guidance
Keep the unit stable, lock casters after positioning. Do not move the machine during operation.
Ensure tight pipeline connection and open valves to avoid dry suction or overpressure.
Verify motor rotation direction before startup; reverse rotation is prohibited. Conduct no-load test run after connecting pipelines.
Monitor differential pressure gauge constantly. Replace filter elements timely once high differential pressure indicates clogging.
Drain accumulated water regularly for dehydration models. Activate heater to reduce oil viscosity under low ambient temperature.
