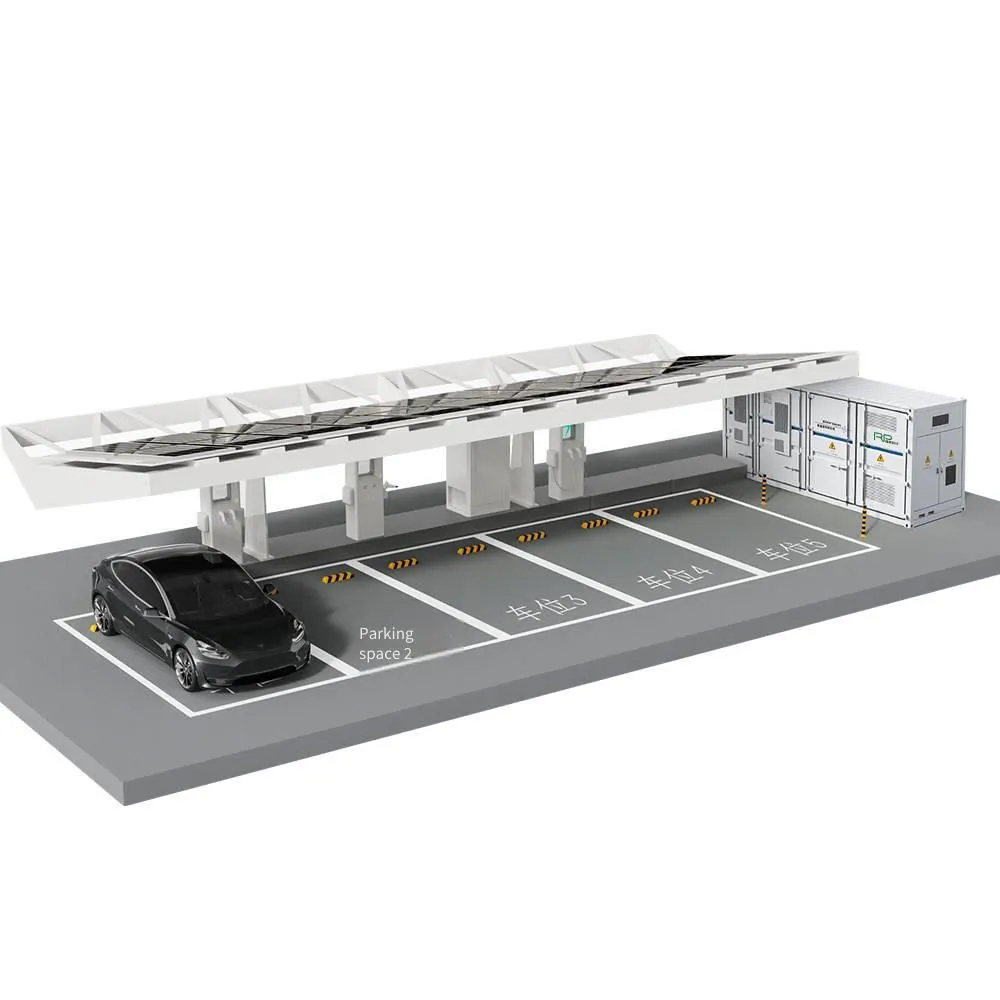

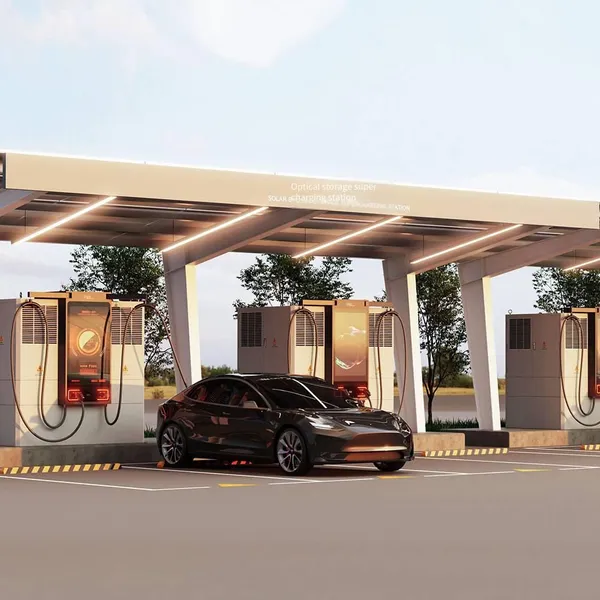

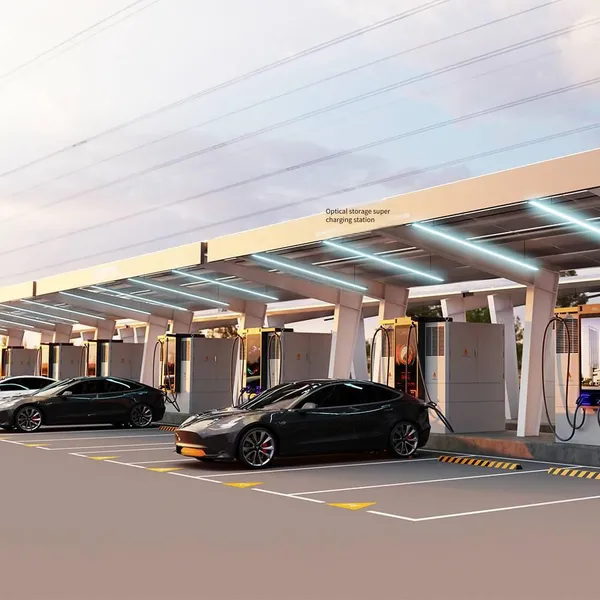

Solar Energy Storage Super Charging Station RPC3-S400KA860K-rp1 |
|
Product Overview
The solar energy storage charging station deeply integrates photovoltaic power generation, intelligent energy storage, and high-efficiency charging. Through prefabricated design and full-stack self-developed technology, it achieves 1-day rapid station construction, cell-level active safety protection, and multi-energy collaborative management, providing zero-carbon and high-return green energy infrastructure for industries and commerce, transportation hubs, and industrial parks.
Product Advantages
-
Multi-dimensional fire protection, safe and reliable, pre-installed design for convenient transportation;
Quick installation, using precast concrete slab base and cable trough, fixing photovoltaic brackets with lifting anchor points, and can be put into operation within 1 day;
Real-time data management and control to monitor product operation; Multiple anti-thermal runaway designs to effectively isolate continuous thermal runaway of cells;
Self-developed PACK, BMS, and EMS, with controllable production lead time and cost;
Intelligent battery temperature control, high-protection structure design, suitable for outdoor use;
Convenient expansion, energy storage can participate in peak shaving and valley filling of the power grid, operate in a microgrid, or be used as a backup power source for industries and commerce.
Product Features
|
Integrated Photovoltaic, Energy Storage and Charging Cabinet |
Super Charging Gun |
Solar Photovoltaic |
Product Parameters
| Project Name | Product Parameters | Project Name | Product Parameters |
| Allowable ambient temperature | -20~+50℃ | AC voltage range | -15%-10% (Range can be set) |
| Altitude | ≤4000m (>2000m derating) | Grid-connected and off-grid switching cabinet | RPSTS-500 |
| Allowable relative humidity | 0~95%Rh (No condensation) | Energy stack | RPCST360K |
| Protection level | IP54 | Rated power of energy stack | 360KW |
| Anti-corrosion level | C4 | Single-gun liquid-cooled ultra-fast charging pile | RPCPe600K |
| External dimensions (Width * Depth * Height) | 17200*7800*3560mm | Dual-gun liquid-cooled ultra-fast charging pile *2 | RPCPe250K |
| Energy storage cabinet *4 | RPC3-S100K215K-3F50CN-rp1 | Number of output channels | 6 (Up to 1 liquid-cooled ultra-fast charging pile can be connected) |
| Total power/capacity | 400KW/860kWh | Rated power of charging pile | Ultra-fast charging: 600kW/ Fast charging: 250KW |
| Charge-discharge rate | 0.5 CP | Output current of charging pile | Ultra-fast charging: 600A/ Fast charging: 250A |
| Cycle life | 7000 times (90%DOD, ≥70%EOL) | Output voltage range | 200-1000Vdc |
| Communication interface | Ethernet/ RS-485/CAN | Constant power voltage range | 300-1000Vdc |
| Temperature control scheme | Intelligent variable frequency air cooling | Length of charging gun cable | 5 meters |
| Fire protection plan | Gas/smoke/temperature detection + Perfluorohexanone | Photovoltaic modules | 550-580Wp |
| AC rated voltage | 400Vac/3W+N+PE | Photovoltaic inverter | RPPVint20K |
