Help CenterSeat Recliner Motor Assembly Line
Product Spotlights
Inline Design – Straight-line layout for efficient material flow.
CCD Inspection – Enables comprehensive visual inspection for stable quality.
Automated Conveying – Flat-belt carrier system with minimal manual intervention.
Related Products

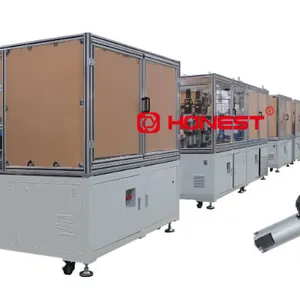

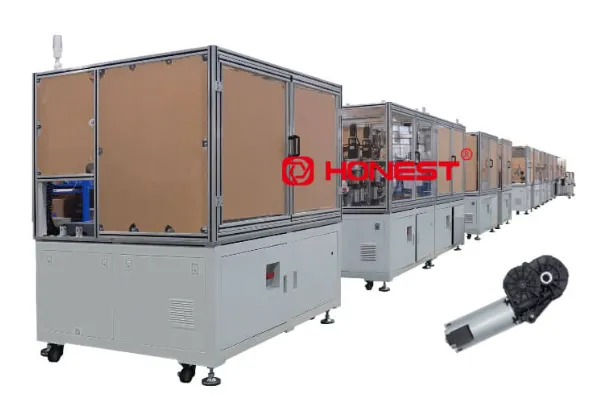

Seat Recliner Motor Assembly Line
The automobile seat recliner motor assembly line is mainly composed of a rubber cover section and a gearbox section, which are arranged in a straight line. The assembly process is monitored throughout, and a CCD visual system is configured for all-around inspection to improve production efficiency and stability. The conveying mechanism uses a flat belt carrier for transmission and is configured with a small amount of manual work and line inspection.
Advantages
-
01
An industrial data acquisition system is adopted to enable traceability throughout the product manufacturing process.
-
02
Highly integrated with visual inspection, reverse material detection, missing component identification, pressure monitoring, and welding quality inspection processes.
-
03
Smooth material transfer between processes with well-structured and logically sequenced operations.
-
04
The design reserves space for future upgrades and modifications to accommodate product evolution.
-
05
The system receives orders or commands and dispatches them to the production line equipment and stations.
-
06
The MES system monitors the real-time production status of the manufacturing line.
Equipment Parameters
Production efficiency
4–12 S/PCS (customizable based on requirements)
Yield
≥99%
Utilization rate
≥90%
Voltage
AC220V/AC380V 50HZ
Air pressure
0.4~0.7Mpa
Power
60kw
Control mode
PLC+HMI
Size
13,000mm (L) × 3,000mm (H)
Application areas
Automotive seat recliner motor
Welcome to inquire for a free quote, solutions, and case studies.
