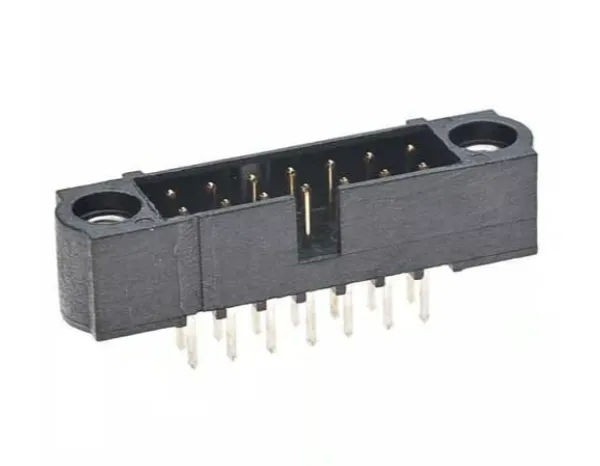

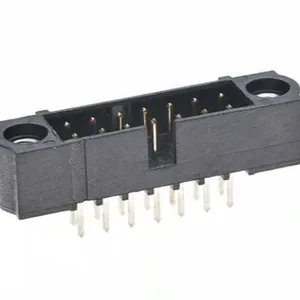

Help CenterHARWIN M80‑5002005 Datamate J‑Tek 2mm Pitch 20‑Way DIL Vertical Male Header, Through‑Hole With Jackscrews, Gold‑Plated
Product Spotlights
- Built-in jackscrew locking design, anti-loose & anti-vibration for harsh environments
- Gold-plated phosphor bronze contacts, low resistance and long service life
- PPS flame-retardant housing (UL94-V0), wide temperature range -55℃~+125℃
Related Products
-
M80-4000000F1-06-325-00-000 HARWIN 6 Pos. Female Receptacle SIL Straight 12 AWG Cable Connector Kit, Slotted JackscrewsNegotiableMOQ: 5 Units -
M80-4711205 6+6 Pos. Female Receptacle DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-5710605 3+3 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-5711205 6+6 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-4712605 Original Harwin Datamate J-Tek High Reliability Connector 26P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units
Title：HARWIN M80‑5002005 Datamate J‑Tek 2mm Pitch 20‑Way DIL Vertical Male Header, Through‑Hole with Jackscrews
Short DescriptionOriginal HARWIN high‑reliability 20Pin double‑row vertical male PCB header, with built‑in jackscrew locking. Gold‑plated contacts, wide temperature ‑55℃~+125℃, excellent vibration‑proof performance for aerospace & industrial harsh‑condition interconnection.
Specifications
Mfr: HARWIN
PN: M80‑5002005
Pitch: 2.0mm, 20‑Way(10+10) Double‑Row
Mount: Vertical Through‑Hole
Locking: Built‑in M2 jackscrews
Current: 3.3A per contact
Temp. Range: ‑55℃ ~ +125℃
Contact: Gold‑plated
Housing: PPS, UL94‑V‑0
RoHS Compliant
Features• Jackscrew locking design, anti‑loose under strong vibration • Gold‑plated contacts for stable & low‑resistance signal transmission • Wide‑temperature performance for harsh environments • Polarization key prevents mis‑mating • High‑strength through‑hole soldering, firm PCB connection
ApplicationsAerospace, UAV, Military equipment, Industrial robot, Rail transit, New‑energy control, Medical & test instruments
