Help Center3M 4229P Tape Die-Cut
Product Spotlights
2. Dual‑side different adhesive formula for multi‑substrate bonding
3. High peel & shear strength, reliable long‑term bonding performance
4. Excellent plasticizer resistance, ideal for PVC and plastic trims
5. Great conformability, fits curved & complex surfaces
6. Mainly for automotive exterior trim: molding, wheel arch, nameplate, spoiler etc.
Related Products
-
Die-cut 3M 4910 Translucent White TapeUS$ 0.26 - 0.28MOQ: 100 Units -
3M Gray VHB Double Sided Tape Cut DieUS$ 0.33 - 0.35MOQ: 100 Units
-
Die‑cut Black 3M VHB Acrylic Foam Double‑Sided TapeUS$ 0.13 - 0.15MOQ: 1000 Units
-
Die‑Cut 3M VHB Clear Acrylic Foam Double Sided TapeUS$ 0.27 - 0.29MOQ: 1000 Units
-
3M 4920 VHB Double‑Sided Foam Adhesive Tape Die‑CutUS$ 0.34 - 0.36MOQ: 1000 Units

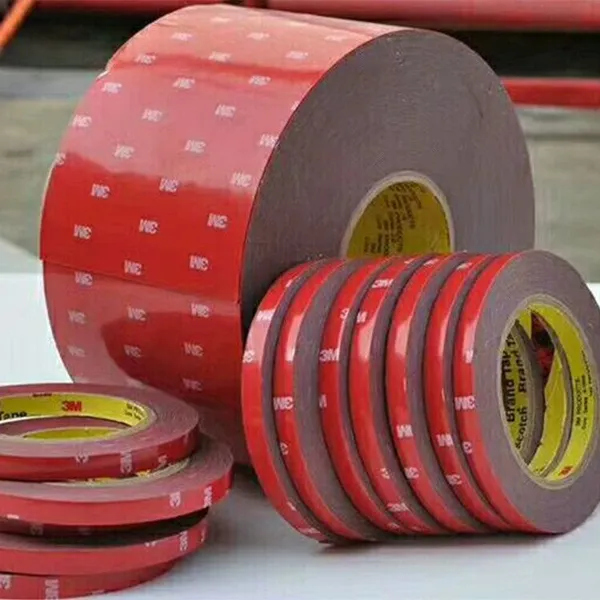

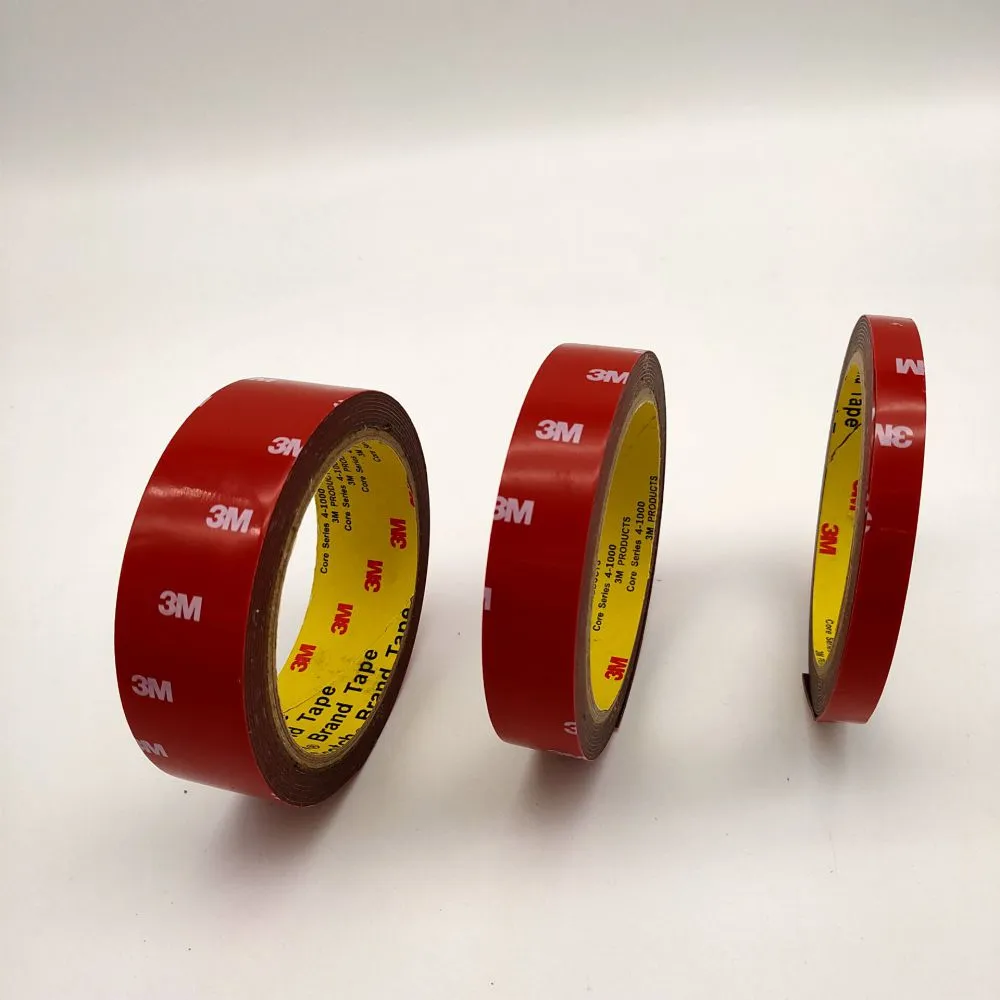

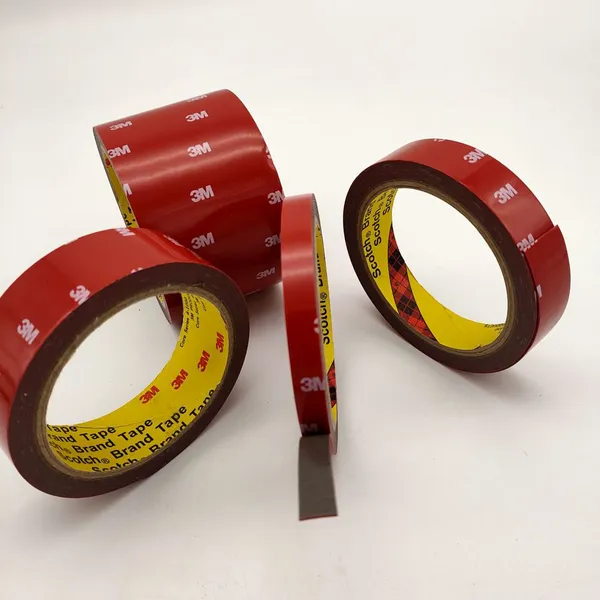

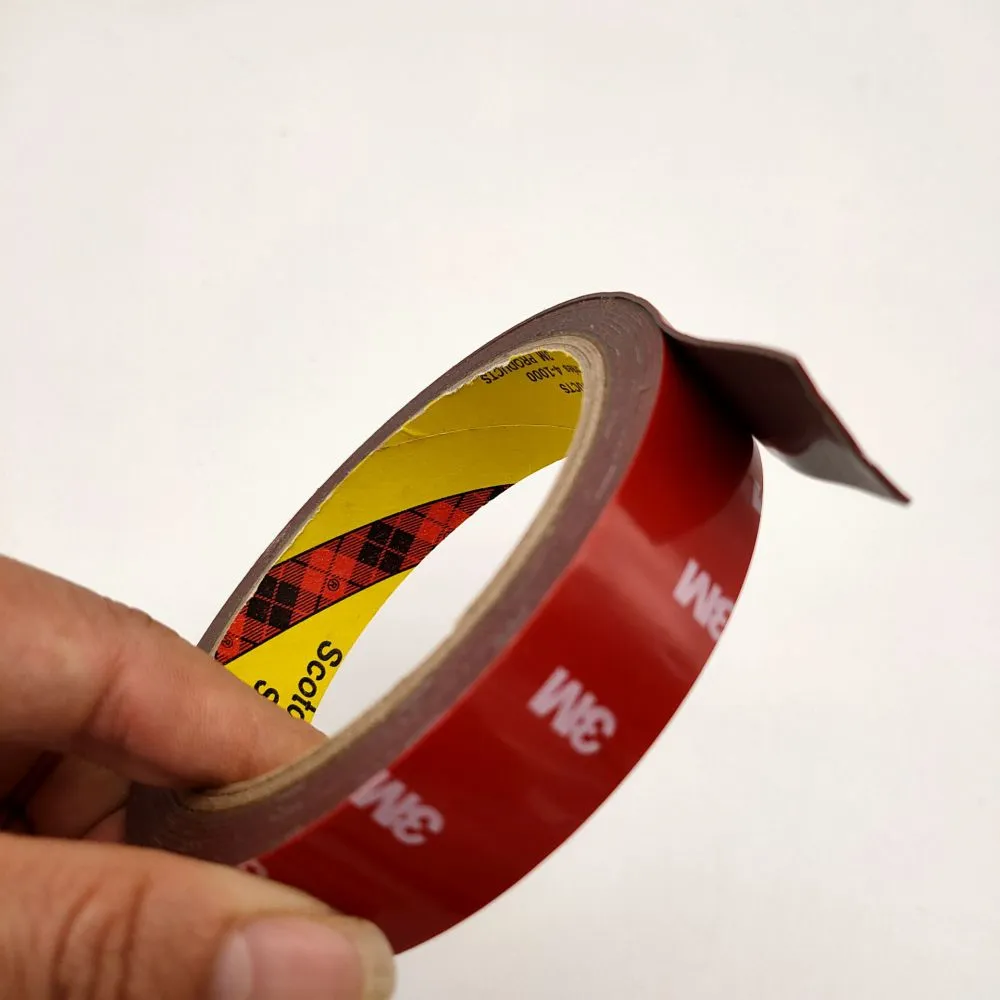

3M 4229P is a dark‑grey closed‑cell acrylic foam double‑sided pressure‑sensitive tape with dual‑different adhesive formula, 0.76 mm total thickness and red PE liner. It is specially developed for automotive exterior bonding. The foam substrate features stress‑dispersion, shock‑absorption and waterproof sealing performance. It can replace screws, rivets and welding to avoid component damage and achieve beautiful appearance. Rolls, sheets and custom precision die‑cut parts per customer drawings are available.
Core Specifications
Model No.: 3M 4229P
Substrate: Closed‑cell acrylic foam
Total Thickness: 0.76 mm
Color: Dark Gray
Liner: Red printed PE liner
Adhesive System: Dual different acrylic pressure‑sensitive adhesive
Operating Temperature Range: ‑40℃ ~ +90℃; Short‑term peak temperature up to 120℃
Certifications: RoHS, ISO9001, Automotive OEM grade
Bondable Substrates
✅ Plastic (TPO, PP, ABS, RIM, PVC) ✅ Metal (Painted steel sheet, aluminum alloy, metal panels) ✅ Glass (Automotive glass) ❌ Not suitable for: Paper, Wood, Leather, Rubber, Textile, Ceramic and other porous permeable materials
Product Features
Dual‑different adhesive formula. Liner‑side offers high initial & final adhesion to automotive clear coat & painted surfaces. Matched with adhesion promoter, the other side bonds stably with low‑surface‑energy plastics such as PP and TPO.
Viscoelastic foam delivers excellent stress‑relaxation, absorbs stress caused by thermal expansion and contraction, resisting debonding for long‑term service.
High shear strength and peel strength; outstanding plasticizer resistance to prevent adhesive migration & failure on PVC substrates.
Superior outdoor weather resistance: UV‑resistance, humidity resistance, temperature cycling resistance, anti‑aging for long‑time outdoor application.
Waterproof sealing and shock‑absorbing performance, fills tiny gaps between mating parts.
Good conformability for curved and irregular components.

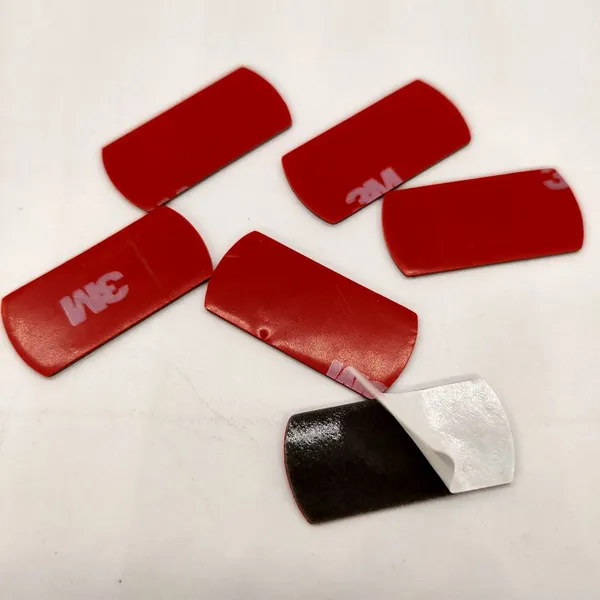

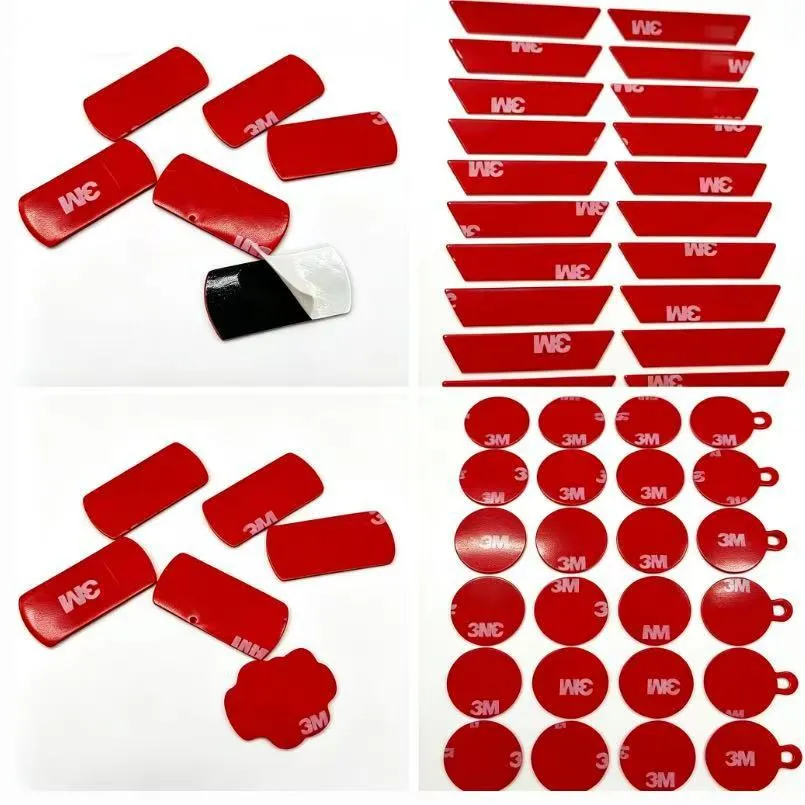

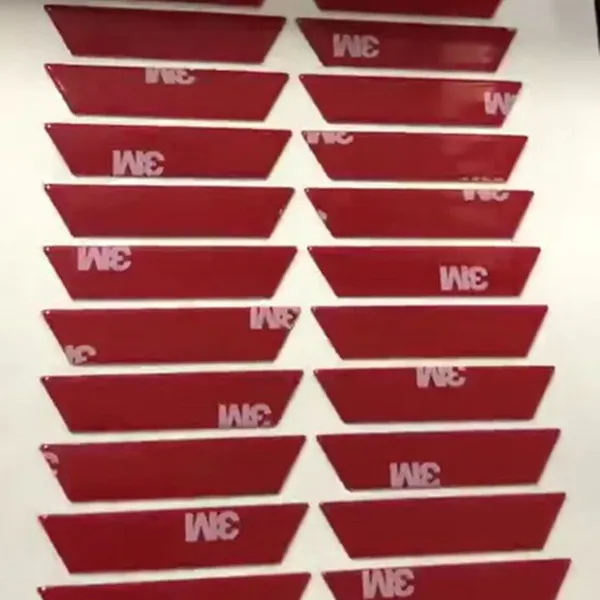

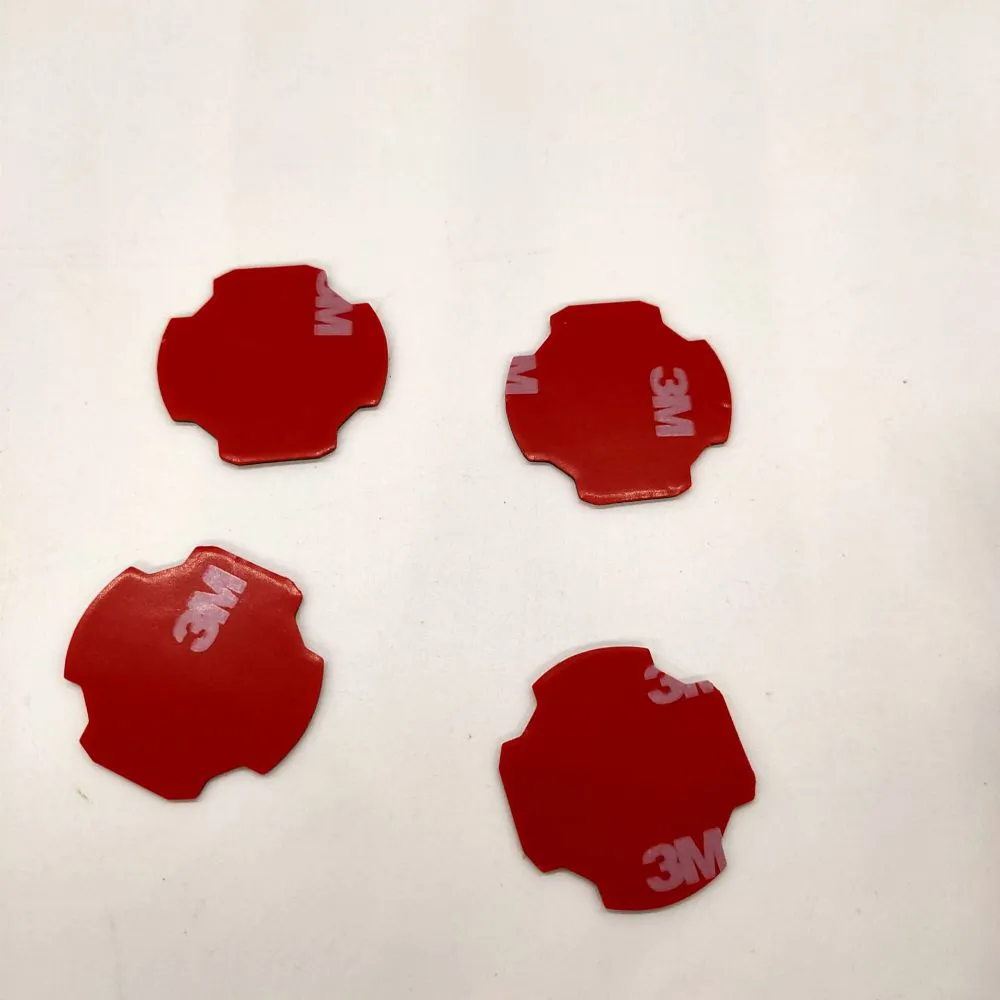

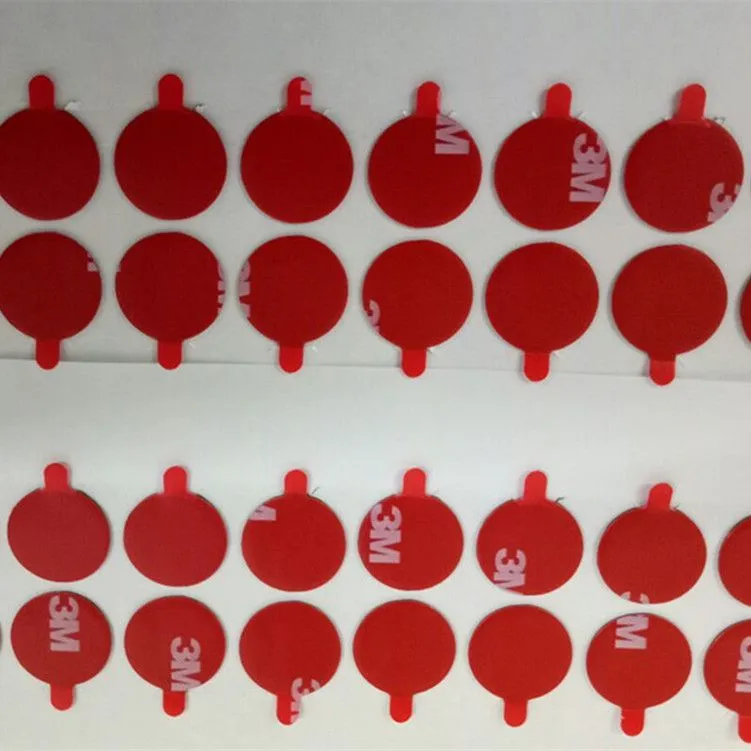

Support precision die‑cutting, available for adhesive pads, strips, gaskets & special‑shape parts with burr‑free edges for direct assembly.
Main Applications
Automotive exterior trims: body moldings, wheel arches, wheel lips, nameplates, car logos, spoilers, anti‑scratch strips & decorative parts ‑ Automotive components: bonding & fixing for TPO/PP plastic parts, ABS decorative pieces, metal trim panels ‑ Outdoor component assembly; replace rivets & screws to simplify assembly process and eliminate screw holes & welding spots
Packaging & Available Sizes

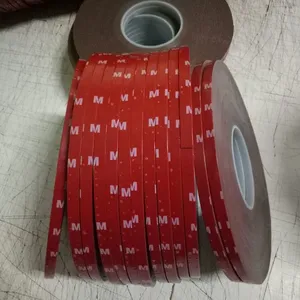

Standard forms: Rolls, sheets; Custom die‑cut available per drawings ‑ Fixed thickness 0.76 mm, width & length can be customized ‑ Transport Package: Rolls, sheets or custom die‑cut pieces
Usage Notes
Keep substrate surface clean, dry and oil‑free before bonding.
Adhesion promoter is recommended for low‑surface‑energy plastics like PP and TPO to achieve better bonding effect.
Apply sufficient pressure after lamination for optimal bonding performance.
Form‑filling content
| Applicable Scope | Plastic, Metal, Glass |
| Waterproof Property | Excellent |
| Heat Resistance | Medium‑high（‑40℃~90℃，peak 120℃） |
| Color | Dark Gray |
| Certification | RoHS, ISO9001 |
| Transport Package | Rolls, sheets or custom die‑cut pieces |
| Specifications | 0.76mm thickness, customizable width & length, custom die‑cut service available |
| Trademark | 3M |
