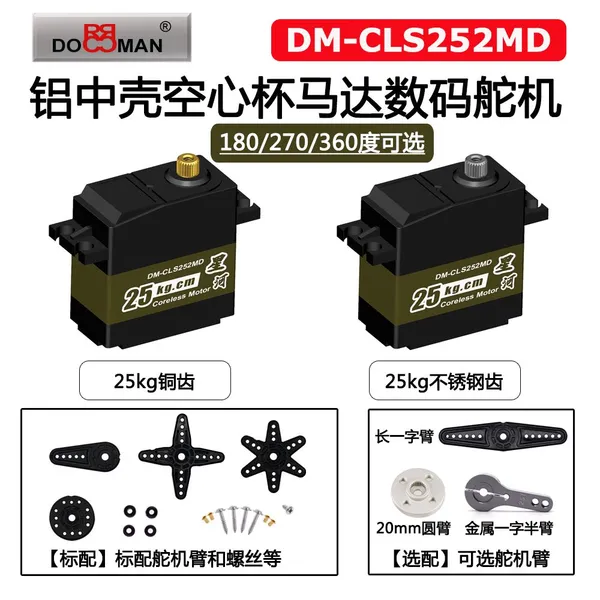

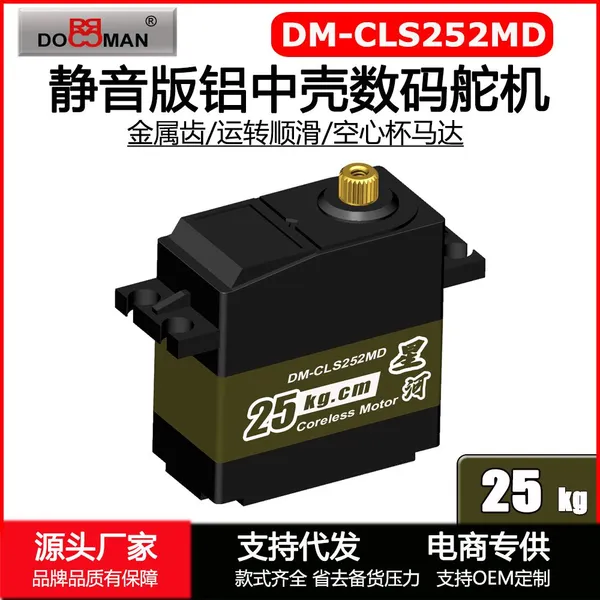

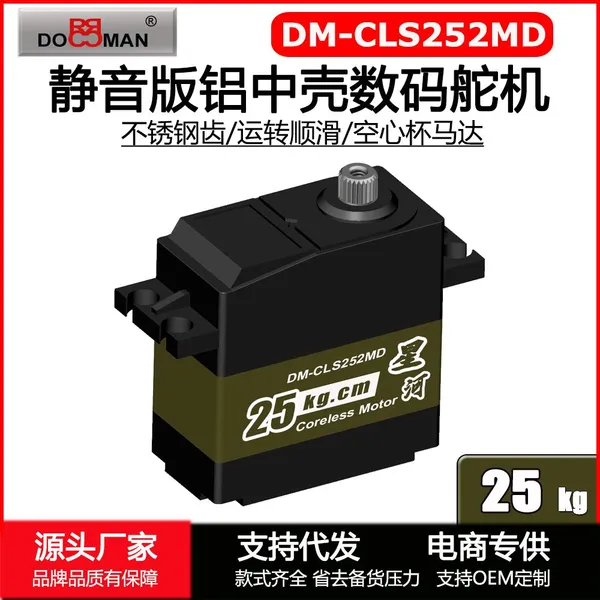

1, metal Gear 25kg Coreless Digital Servo
2, heat sink middle case
3, with coreless motor, high torque
4, OEM service
Product Feature
Features:
Apply for RC car, RC plane, RC helicopter; RC boat
High presicion metal gears made by CNC;
Select coreless motor, could compare with import one;
1million life Potentiometer;
Expert and experienced in circuit for many years;
TOP choice on case plastic, and best mold manufacture
*Standard Size, Coreless, digital, Titanium gears, 25T, 2BB
*Futaba, JR, SANWA, Hitec compatible.
Product Specification/Models
Specifications:
Item No. DM-CLS252MD
Voltage: 4.8V ~ 7.4V
Speed: 0.15 sec/60deg (6.0V) 0.13sec/60deg (7.4V)
Torque: 23.5kg. Cm (6.0V) 26.5kg. Cm (7.4V)
Size: 40mmX20mmX40mm
Weight: 58gram
Motor: Coreless
Gear Train: Metal gear
Ball Bearing: 2BB
Type: Digital, Aluminium heat sink
Notes:
*Please specify the plug(JR or Futaba connector), or we offer JR plug for you, for it is compatible. Futaba plug.
*Please do read the instruction before you install the servo. Rubber grommet must be used to reduce vibration when you install the servo on GP airplane, GP car or GP boat.
*Please choose suitable servo for you RC model. Torque overload will damage your servo.
*Keep the servo clean and away from dust, corrosive gas and humid air.
*Specification are subject to change without notice
Packing Include:
-Servo× 1PCS

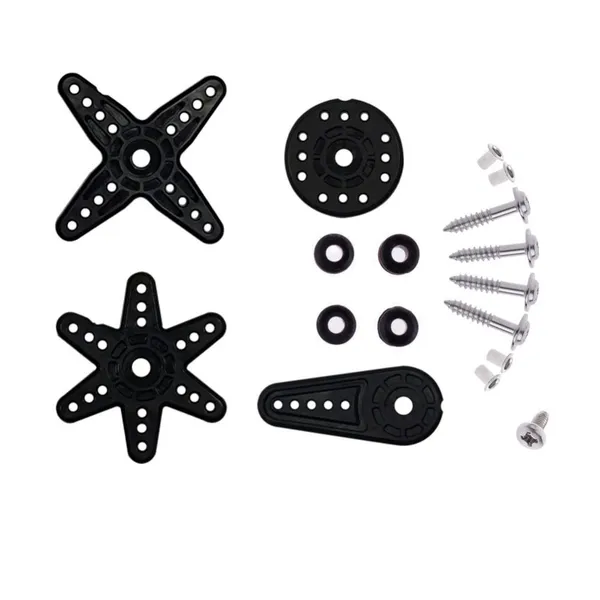

-Accessories:
1 X double sided servo horn
1 X 4-arm servo horn
1 X 6-arm servo horn
1 X round servo disc
4 X rubber grommets with brass inserts
4 X mounting screws
1 X mounting bolt 3 X 8 mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
-GW: 75 g
Application
RC car, RC plane, RC helicopter, robot
