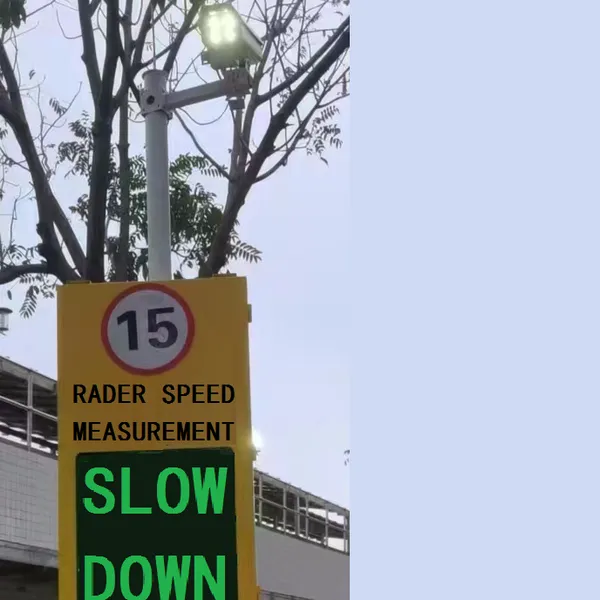

radar speedometers, radar speed capture Usage: Suitable for large-scale industrial parks, school roads, hospitals, rural roads, urban strictly controlled roads, entry and exit checkpoints, and low-speed places where specific turning sections require speeding to be captured! 0-150KM, replace high-speed camera for users in high-speed speed measurement scenarios. Supports license plate recognition and radar speed detection for countries and regions such as Europe, America, Asia, Africa, Southeast Asia, the Middle East, Central Asia, and more, saving key data such as license plate and speed images
Usage: Suitable for large-scale industrial parks, school roads, hospitals, rural roads, urban strictly controlled roads, entry and exit checkpoints, and low-speed places where specific turning sections require speeding to be captured! 0-150KM, replace high-speed camera for users in high-speed speed measurement scenarios.
Note: Scalable applications: Speed capture, red light capture, interval speed measurement, electronic police, violation and parking capture.
Note: You can choose the high-speed traffic intelligent camera (0-199KM), which supports capturing speeding on highways!
Camera features: (used in low-speed environments within 0-150KM)
Built in extreme optimized embedded license plate recognition algorithm, capable of wide-angle video recognition: with a comprehensive recognition rate of over 99%;
Built in5 million 5-22mm electric zoom lens;
Color 5 million pixel CMOS sensor with a maximum resolution of 1960 * 1080/30fps;
Unique appearance design, the camera can be adjusted in any direction up, down, left, or right at will; Can rotate 360 degrees without limit.
License plate recognition: supports conventional license plate recognition, such as regular blue and yellow plates, military, police, new energy, etc;
Integrated speed measurement function: The speed measurement range is 0~150 kilometers per hour, which is simple and convenient;
The trigger mode supports three types: video, coil, and network signal transmission,
Video triggering can distinguish whether the vehicle is approaching or moving away from the recognition machine;
Trigger output: panoramic, close-up, and textual results; The captured images can be overlaid with information such as time, date, license plate number, driving speed, installation route, etc;
Support synchronous triggering of flashing lights;
The lens supports automatic aperture and remote manual focusing;
Support RS485 recognition result output;
The network upload protocol supports RTSP, FTP, HTTP (supporting recognition result upload), etc;;
Complete SDK support, allowing users to conduct secondary development through SDK packages;
The front end adopts a unique double glass design, which can effectively avoid halo and spot phenomena when auxiliary light is turned on.

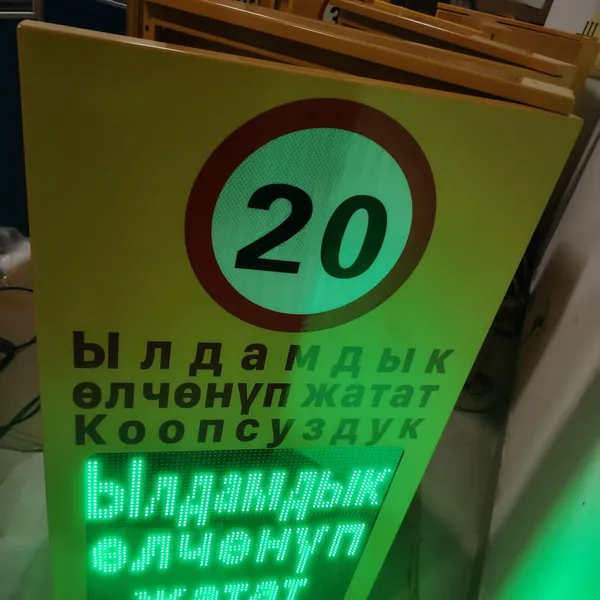

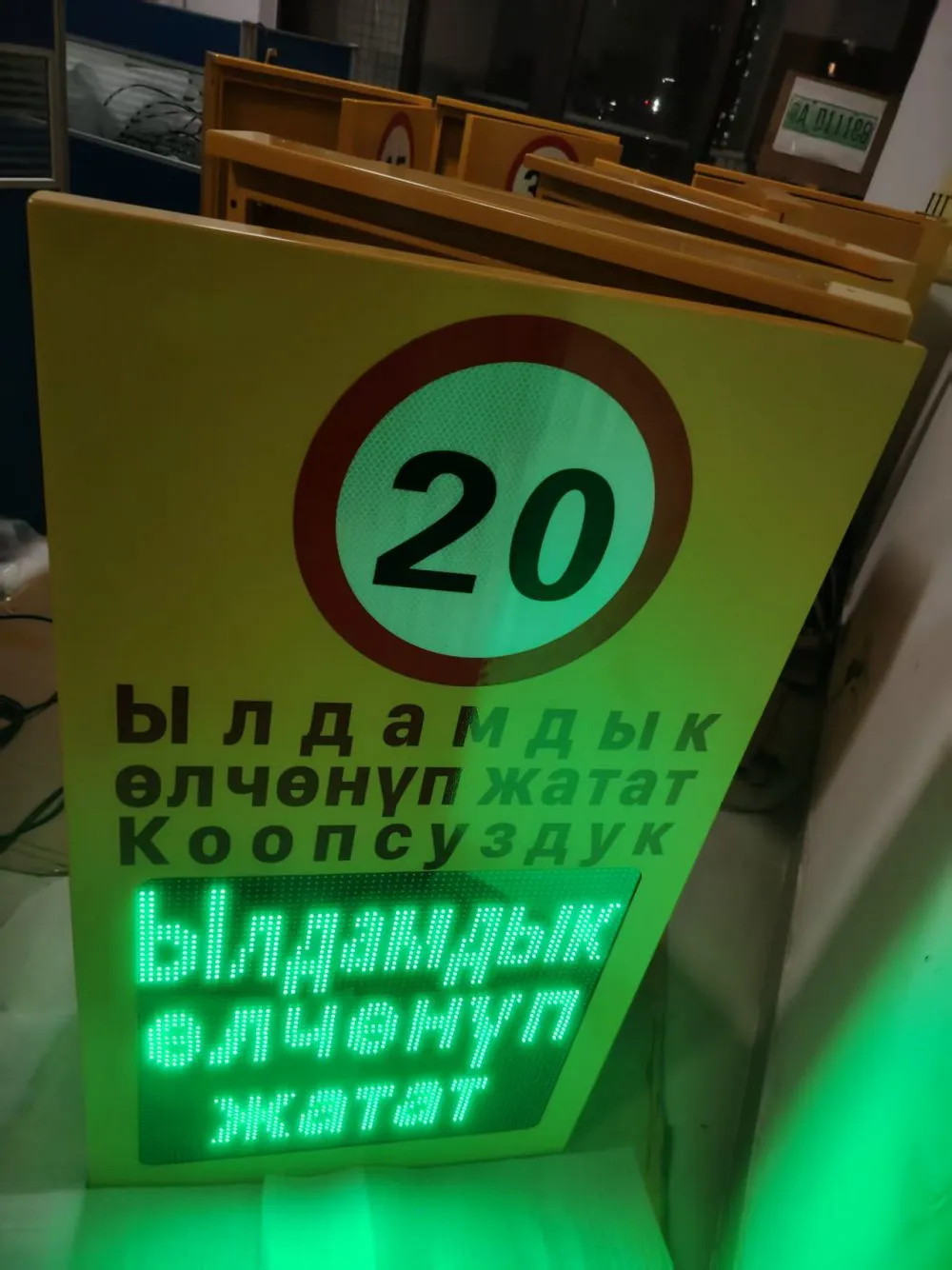

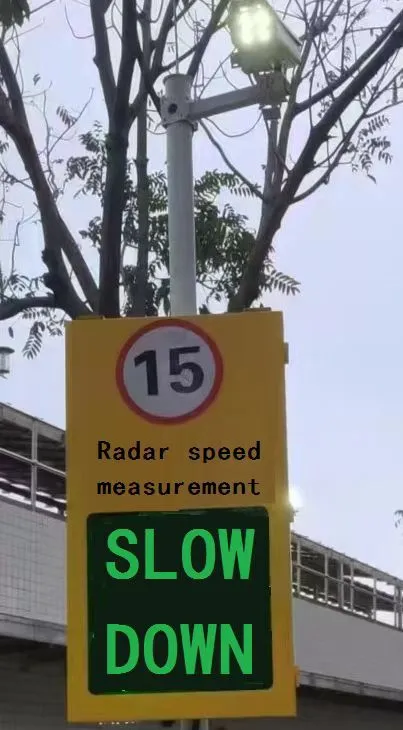

LED screen functional features:

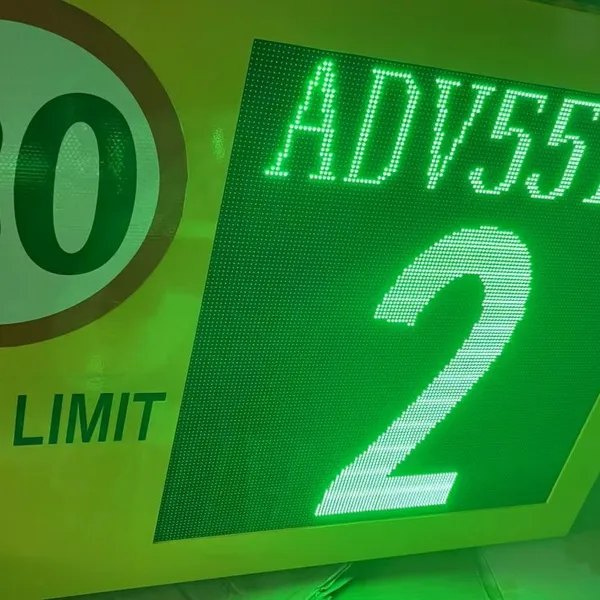

Module type: P3.75-P10 Outdoor waterproof digital LED display, high brightness, wide viewing angle, and visible distance of up to 30 meters
Communication interface: 485
Display text: Full screen with 4 lines and 6 Chinese characters per line, with multiple display modes including static and scrolling

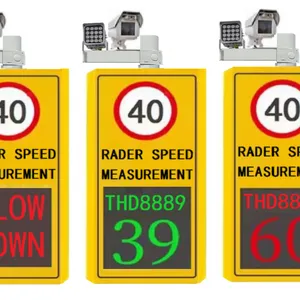

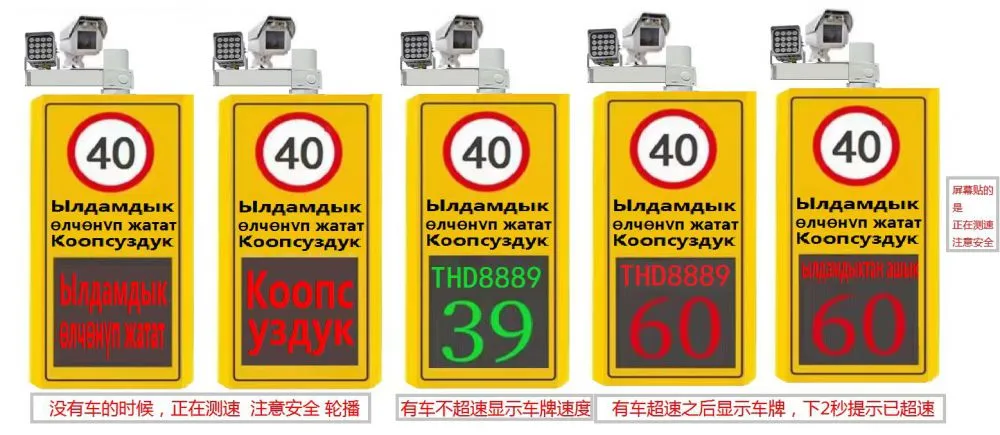

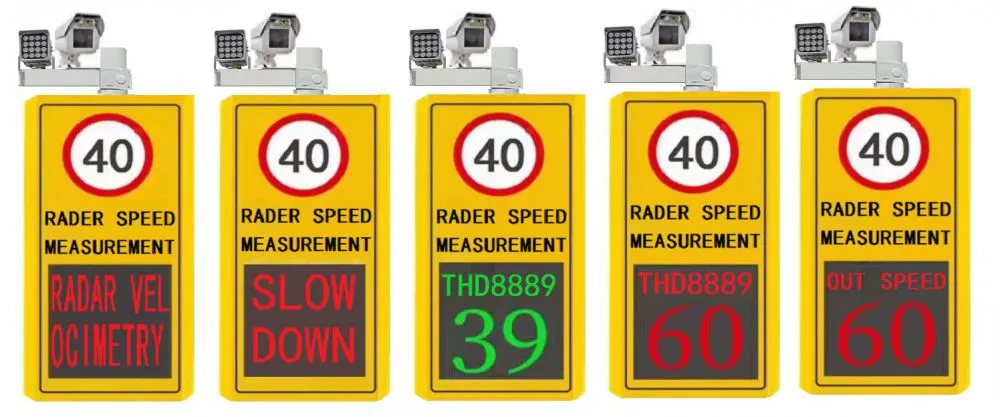

Display content: The 4-line text is as follows, with the standard 2-line speed model C80 available.
1. Idle time: 2. When a car arrives:
Display Color: Font: Single Red, Two Colors, Three Colors Available
Screen shell: The surface of the shell is resistant to UV and electrostatic spray, dustproof and waterproof
Working voltage: AC220V, working environment temperature: -25 ℃ --60 ℃, relative humidity:=
Optional language broadcasting function
Technical parameters:
Video imaging element 1/3 "SONY 3 million pixel row by row sensor
Maximum resolution Full HD/1080P (1920x1080)+Full D1
Horizontal resolution>1000TVL (1920x1080 pixels)
When the lowest illumination color is turned on: 0.05Lux at F1.2/When the special light source is turned on: 0.001Lux at F1.2
Super wide dynamic support
Compression standard H.265 Main Profile @ Level 4.1/Motion JPEG
Single stream 1920 * 1080P
The frame rate can reach 25 fps at all resolutions
Video streaming single channel H.264
16: 9 display modes support video 16:9 display mode
OSD character overlay supports Chinese and English character overlay: vehicle speed value, channel name, date and time overlay, with adjustable overlay position
3D noise reduction technology reduces noise in each frame of the image, making the image clearer
ROI area enhancement can make a specified area in the image clearer than the image outside the area
Lens f=2.8-13.5mm 3MP high-definition fixed focus lens
1 RJ45 network interface, 10/100M adaptive, 1 power input interface
Network protocols IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP, etc
Access Protocol WEB, SDK API, ONVIF
Storage computer or front-end memory computer or front-end memory
The safety built-in watchdog automatically resets the system in case of abnormal situations to ensure normal operation of the system
Remote reset system controlled through network
Other operating systems Microsoft Windows XP/Windows 7
Browser: Microsoft Internet Explorer 6. x or above
Video output 1.0Vp-p, 75 Ω
Power supply AC220V
Working temperature -10 ℃ -50 ℃
Weight approximately 35K g
