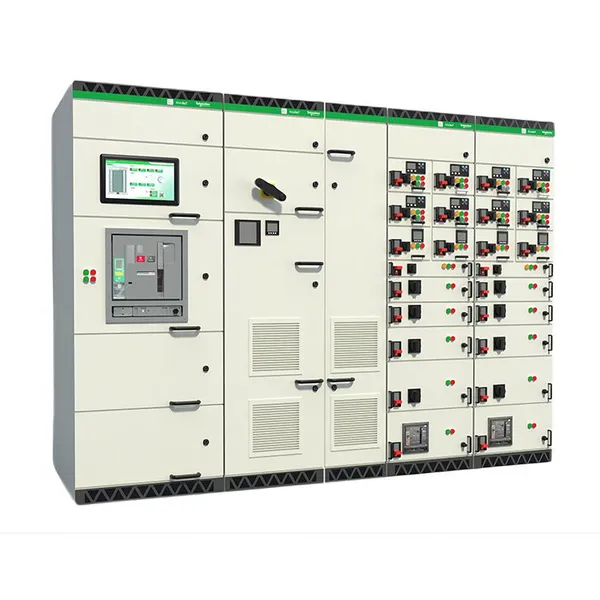

GCK Low Voltage Withdrawable Drawer Switchgear Cabinet 400V AC Power Distribution Panel
Product Spotlights
GCK low voltage withdrawable drawer switchgear, 400V, 630-4000A, modular drawer units, safe and compact, factory direct from Anhui China, IEC/GB standard.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CCC, ISO9001
Structure:
Withdrawable
Installation:
Removable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, China
Delivery Detail:
30 days
Related Products
-
GGJ Low Voltage Reactive Power Compensation Cabinet 400V Capacitor Cabinet Power Factor CorrectionNegotiableMOQ: 1 Set -
XL-21 Low Voltage Power Distribution Cabinet 400V Motor Control Center Power BoxNegotiableMOQ: 1 Set
-
GZDW DC Power Supply Cabinet 220V/110V DC Panel for Substation Battery SystemNegotiableMOQ: 1 Set
-
JXF Distribution Box 400V Wall-mounted Power Distribution Enclosure IP54NegotiableMOQ: 1 Set
-
SCB18 Dry Type Transformer 2000kVA Cast Resin Insulated Distribution TransformerNegotiableMOQ: 1 Unit
Certification
CCC, ISO9001
Structure
Withdrawable
Installation
Removable
Current
AC
Voltage Level
Low Voltage
Shell Material
Steel Plate
Transport Package
Wooden case / export standard
Specification
Customized 630-4000A
Trademark
Xinsheng
Origin
Anhui, China
GCK Low Voltage Withdrawable Drawer Switchgear - 400V AC low voltage power distribution cabinet with modular drawer units. Produced by Lu'an Xinsheng Electric Co., Ltd.
Main Features
Modular drawer units, easy replacement and maintenance
Safe interlock between drawer and circuit breaker
Compact structure, high capacity up to 4000A
Comply with GB 7251.1 and IEC 61439
Technical Parameters
| Rated voltage | 400V / 690V |
| Rated current | 630 - 4000A |
| Short circuit withstand | 50 - 80kA |
| Frequency | 50 Hz |
| Installation | Indoor |
| Standards | GB 7251.1, IEC 61439 |
Applications
Industrial plants, commercial buildings, substations, power distribution centers. Customized configurations available.
