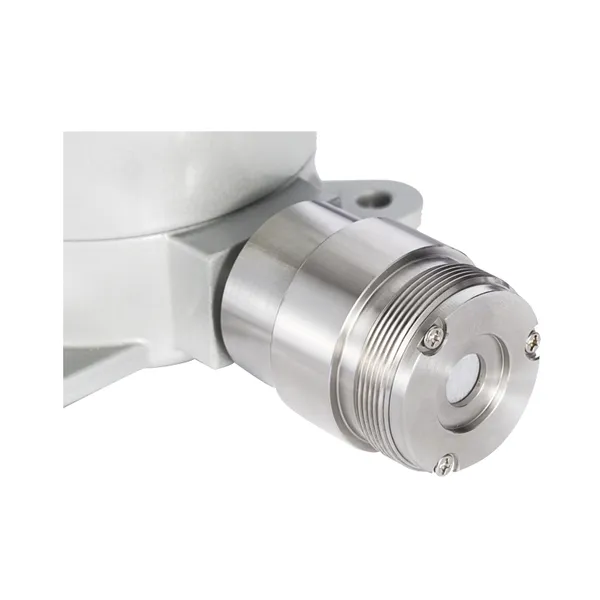

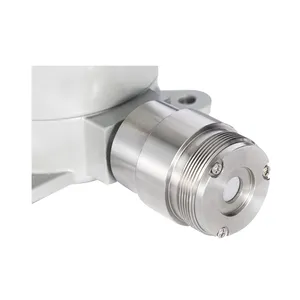

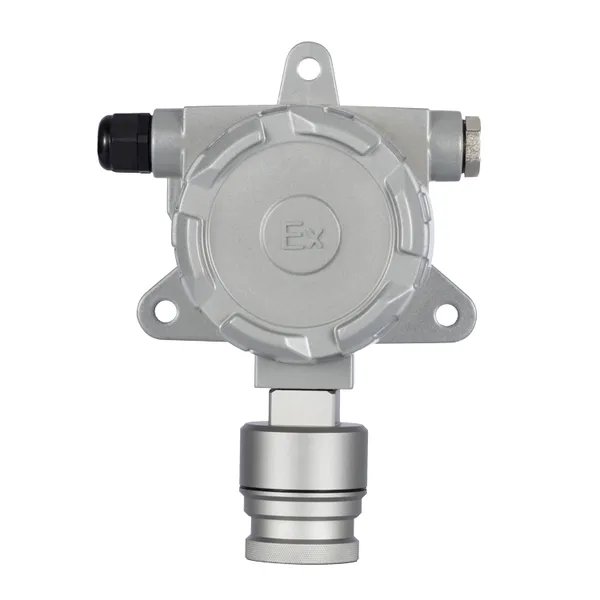

Gon760-CH4-300G Fixed Methane Detector
Product Introduction:
Gon760-CH4-300G Fixed Methane Detector; It can be fixedly installed on-site for 24/7 online detection. The LCD backlit display makes it easy to read data. It can also connect to control systems such as host computers/PLCs/control hosts through RS485 digital signals and 4 - 20mA analog current signals. It has two sets of relay outputs to drive external devices.
Product Features:
Intelligent modular sensor, easy to replace and maintain
Long lifespan, high sensitivity, and reliable operation
Two-level adjustable alarm points, high-brightness LED light indication
Two sets of relay outputs to drive external devices
Clear liquid crystal display, large-screen high-definition LCD display
Infrared remote control method, no need to open the cover to set the detector, safe and convenient
Three-wire 4 - 20mA standard current output, can be connected to control instruments, DCS, and PLC systems
IP65 protection level, full explosion-proof design
Innovative hanging installation method, suitable for various industrial environments (wall-mounted, easy to install)
Gon760-CH4-300G Fixed Methane Detector Technical Parameters:
| Methane Concentration | Measurement Range: | 0 - 100%LEL; 0 - 4.4%VOL; 0 - 100%VOL | |
| Resolution: | 0.1 %LEL;0.01%VOL;0.1%VOL (one-thousandth of the range) | ||
| Measurement accuracy: | ±2% F.S. | ||
| Detection principle: | Infrared | ||
| Sampling method: | Natural diffusion | ||
| Response time: | ≤10 seconds (T90) | ||
| Repeatability: | ≤±1% | ||
| Linear error: | ≤±1% | ||
| Recovery time: | ≤10 seconds | ||
| Zero drift: | ≤±1% (F.S/year) | ||
| Display mode: | LCD Liquid crystal backlight display | ||
| Display mode: | With display | ||
| Alarm mode: | With alarm | ||
| Operating temperature: | -20.0 °C~50.0 °C | ||
| Pressure range: | 1±10% atmospheres | ||
| Humidity: | ≤95%RH No condensation | ||
| Protection level: | IP65 | ||
| Explosion-proof grade: | ExdⅡCT6 | ||
| Power supply | Power supply: | DC24V | |
| Power consumption: | ＜5W | ||
| Electrical interface: | M20×1.5mm national standard thread | ||
| Cable: | ≥RVVP 3×1.5mm2 | ||
| Signal output | Option 1: | Three-wire system 4-20mA+2 relays | |
| Option 2: | RS485+2 relays | ||
| Option 3: | 4-20mA+RS485+2 relays | ||
| Others | Size: | 190×130×100mm(L×W×H) | |
| Weight: | 1.5Kg | ||
| Standard accessories: | Instruction manual, charger, packing box, certificate of conformity, warranty card, factory test report | ||
Application fields:
Widely used in industries such as petrochemical, industrial production, smelting and forging, electric power, coal mines, tunnel engineering, environmental monitoring, sewage treatment, biopharmaceuticals, household environmental protection, livestock breeding, greenhouse cultivation, warehousing and logistics, brewing and fermentation, agricultural production, fire protection, gas, building construction, municipal enterprises, school laboratories, research centers, etc.
