Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods

Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods thumbnail-1
Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods thumbnail-2
Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods thumbnail-3

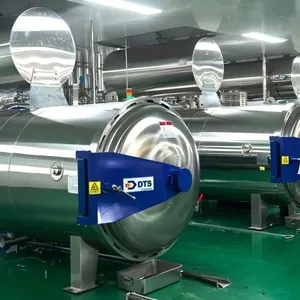

Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods thumbnail-4
Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods photo-1

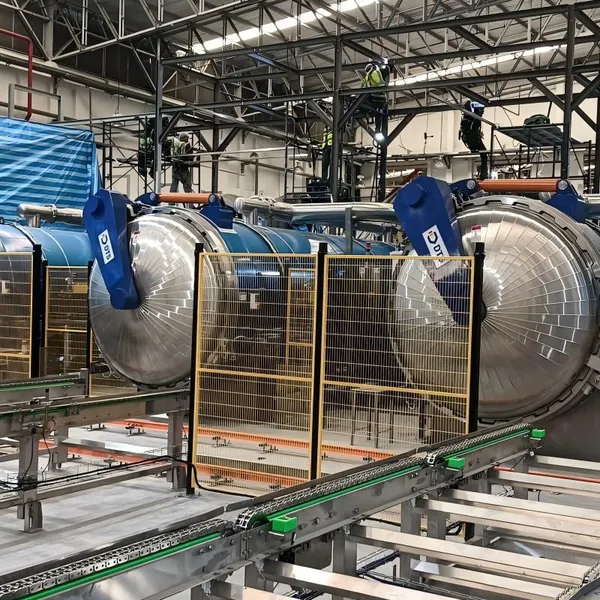

Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods photo-2

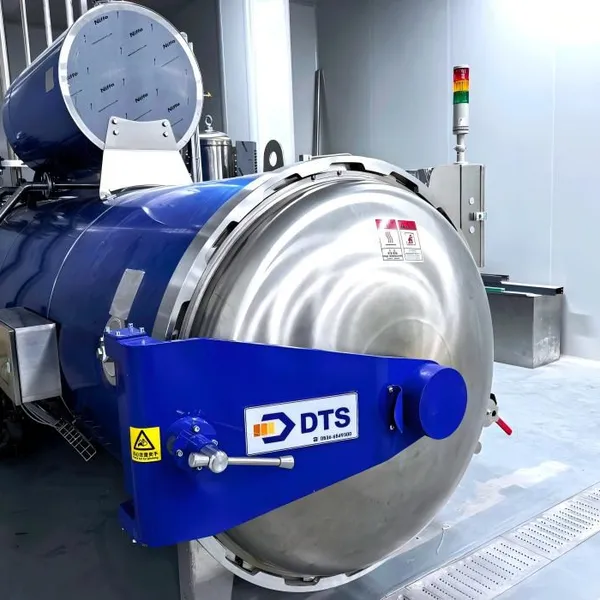

Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods photo-3

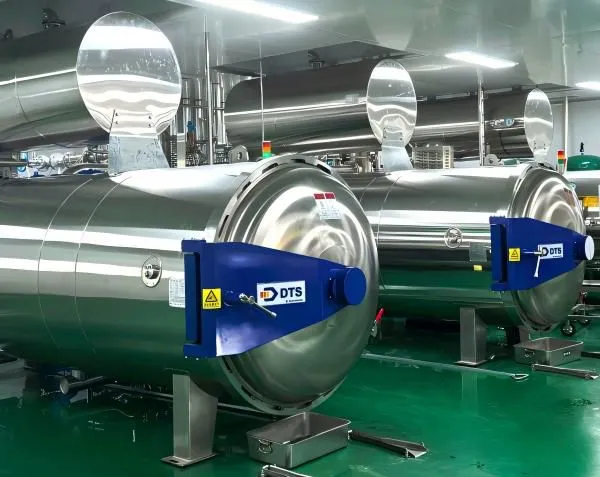

Food Retort Sterilization Automatic Production Line｜For Ready Meals, Ready Rice & Prepared Foods photo-4

Product Spotlights

Water spray retort,autoclave,canned retort,retort in food industry,retort machine,retort,sterilization,sterilizer,Heat up and cool down by the heat exchanger, so the steam and cooling water will not contaminate the product, and no water treatment chemicals are needed. The process water is sprayed onto the product through the water pump and the nozzles distributed in the retort to achieve the purpose of sterilization.
US$ 30000 - 100000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
12 Months
Automation:
Automatic
Contact Supplier Request Quote Chat Now
Shandong Dingtaisheng Machinery Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
Warranty 12 Months
Automation Automatic
After-sales Service Warranty: 1 Year | Maintenance: Lifetime
Customized Customized
Principle Static
Operation Continuous
Energy Heat Sterilization
Voltage 380V or customized
Condition New
Trademark DTS
Origin China zhucheng

Working principle:


1.Filling the autoclave and water injection: First, load the product to be sterilized into the autoclave and close the door. Depending on the product filling temperature requirements, inject the sterilization process water at the set temperature from the hot water tank into the autoclave until the process set liquid level is reached. A small amount of process water can also be injected into the spray pipe through the heat exchanger.


2.Heating Sterilization: The circulation pump circulates the process water on one side of the heat exchanger and sprays it, while steam is injected on the other side to heat it to the set temperature. The film valve adjusts the steam flow to stabilize the temperature. Hot water is atomized and sprayed onto the product surface to ensure uniform sterilization. Temperature sensors and PID function control the temperature fluctuations.


3.Cooling and Temperature Reduction: After sterilization is completed, stop the steam injection, open the cold water valve, and inject cooling water into the other side of the heat exchanger to achieve temperature reduction of the process water and products inside the kettle.


4.Drainage and Completion: Drain the remaining water, release pressure through the exhaust valve, and complete the sterilization process.


Drainage and Completion: Drain the remaining water, release pressure through the exhaust valve, and complete the sterilization process.

Model

Diameter

(mm)

Body Length

(mm)

Volume

(m³)

Length

(mm)

Width

(mm)

Height

(mm)

Basket size

(LWHmm)

Design temperature(℃)

Test Pressure

(bar)

Design pressure

(bar)

P-1002

1000

1600

1.49

3200

1850

2200

745×665×631

147/156

4.4/5.6

3.5/4.5

P-1003

1000

2400

2.12

4000

1850

2200

745×665×631

147/156

4.4/5.6

3.5/4.5

P-1203

1200

2700

3.45

3800

2350

2400

860×800×775

147/156

4.4/5.6

3.5/4.5

P-1204

1200

3600

4.47

4400

2350

2400

860×800×775

147/156

4.4/5.6

3.5/4.5

P-1205

1200

4500

5.49

5300

2350

2500

860×800×775

147/156

4.4/5.6

3.5/4.5

P-1403

1400

3000

5.24

3900

2450

2700

920×920×915

147/156

4.4/5.6

3.5/4.5

P-1404

1400

3900

6.62

4800

2450

2700

920×920×915

147/156

4.4/5.6

3.5/4.5

P-1504

1500

4250

8.26

5200

2600

3250

1000×1000×975

147/156

4.4/5.6

3.5/4.5

P-1505

1500

5300

10.12

6300

2600

3250

1000×1000×975

147/156

4.4/5.6

3.5/4.5

P-1605

1600

5650

12.27

6700

2900

3300

1070×1070×1050

147/156

4.4/5.6

3.5/4.5

P-1606

1600

6800

14.58

7900

2900

3300

1070×1070×1050

147/156

4.4/5.6

3.5/4.5

P-1805

1800

6500

17.81

7400

3100

3500

1220×1220×1170

147/156

4.4/5.6

3.5/4.5

P-1806

1800

7800

21.12

8700

3100

3500

1220×1220×1170

147/156

4.4/5.6

3.5/4.5

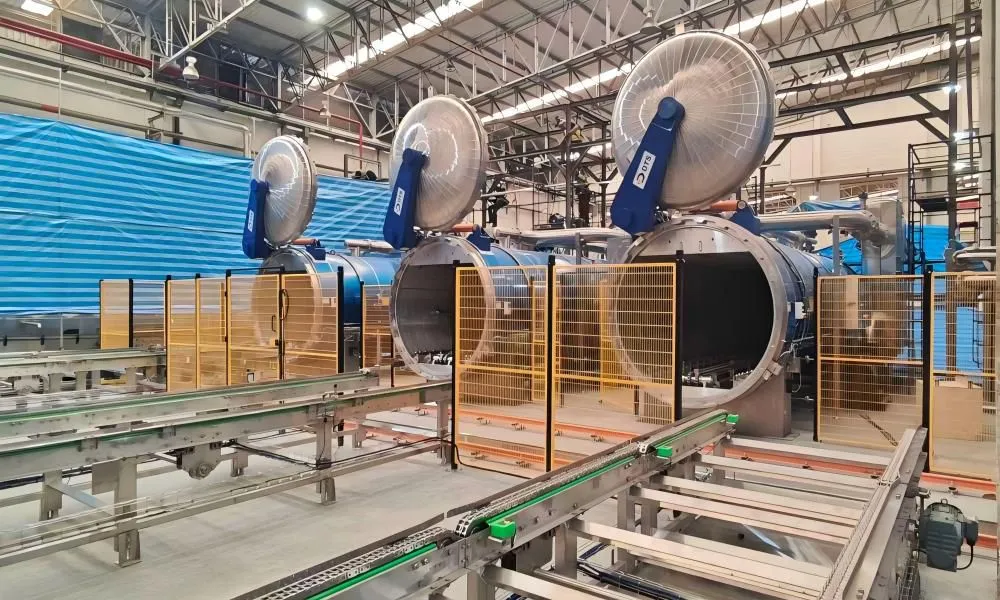

Nasi Lemak with Chicken Curry 2 (2).jpg.webp详情.jpg.webp新工厂图3(1)(1) 新工厂图(1)(1)(1)


The listed price serves as a deposit. Before placing an order, please be sure to contact us to discuss your detailed requirements and obtain an accurate quote, thereby avoiding any unnecessary complications.

Product Tags: Cascade retort , Water Spray Retort , Retort Coffee
