In marine environments such as shipbuilding, offshore platforms, and seawater transmission systems, piping materials are continuously exposed to severe conditions including seawater corrosion, erosion, marine biofouling, and cyclic temperature changes. Ordinary carbon steel and stainless steel pipes can be prone to rusting, perforation, short service life, and high maintenance costs.
C70600 copper-nickel marine piping, also known as 90/10 copper-nickel alloy piping, offers outstanding seawater-corrosion resistance and stable mechanical properties. It is therefore a mainstream choice for marine piping systems and is widely used in ship seawater cooling systems, ballast-water pipelines, fire-fighting lines, and offshore-platform process pipelines.
Product Overview

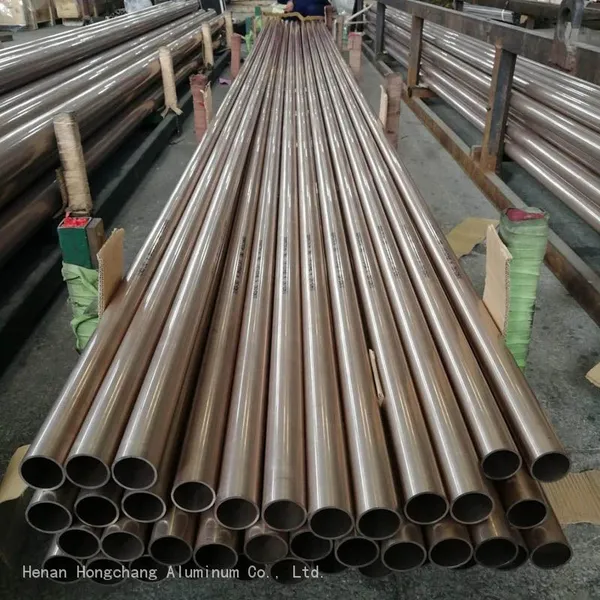

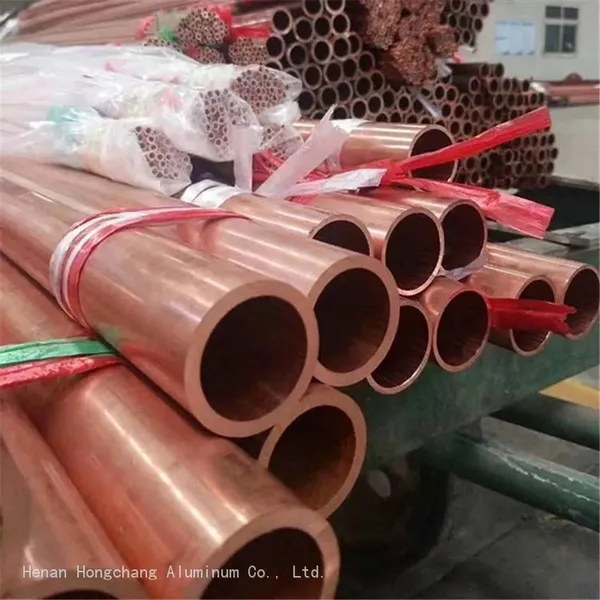

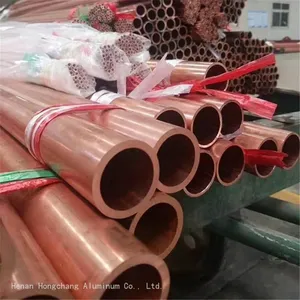

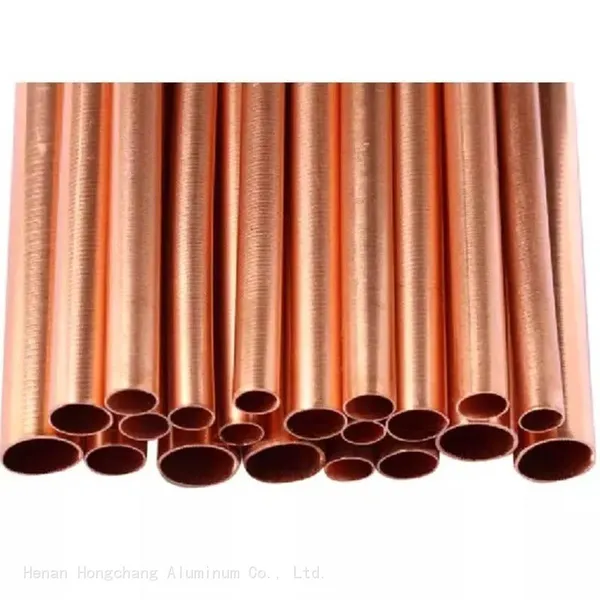

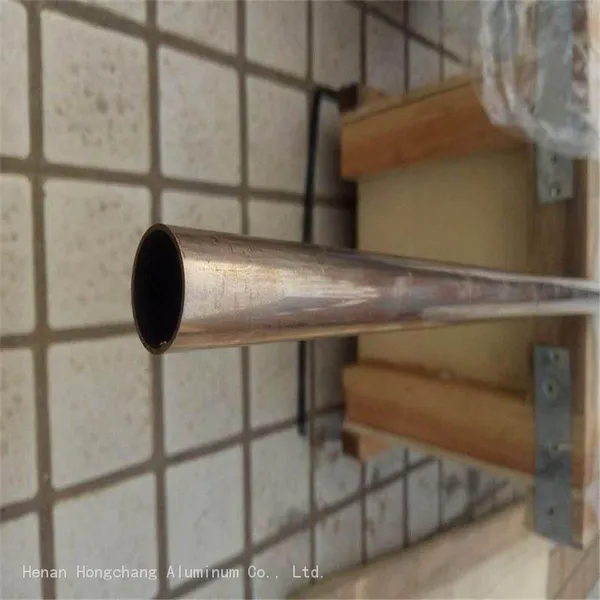

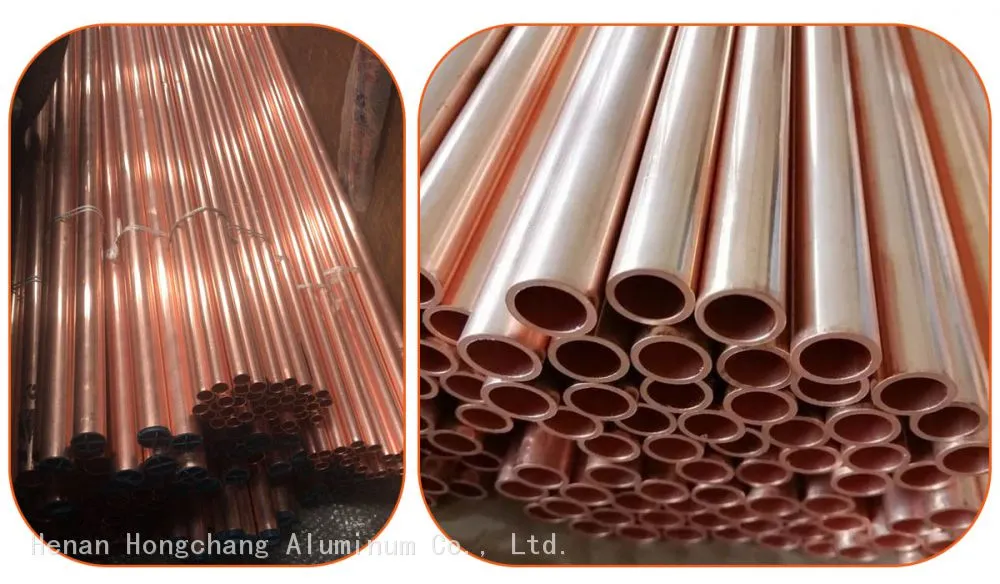

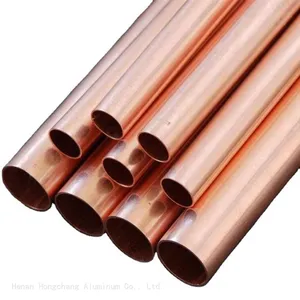

This product is a high-quality C70600 copper-nickel alloy seamless pipe, corresponding to Chinese grade BFe10-1-1 (B10 iron cupronickel). It can be manufactured in accordance with international standards such as ASTM B111, ASTM B466, and ASTM B122. Certifications from major classification societies, including CCS, ABS, DNV, LR, BV, and others, can be provided upon customer request.
The alloy uses copper as the base metal and contains 9%-11% nickel, 1.0%-1.5% iron, and an appropriate amount of manganese, forming a stable single-phase solid-solution microstructure. Nickel significantly improves corrosion resistance and strength; iron effectively enhances resistance to erosion corrosion caused by flowing seawater; and manganese further improves processing performance and corrosion resistance.
Specifications
Item |
Parameters |
Material Grade |
C70600 / CuNi10Fe1Mn / UNS C70600 / BFe10-1.6-1 |
Standards |
ASTM B111, ASTM B466, ASTM B122, GB/T 5231 |
Chemical Composition |
Cu: Balance | Ni: 9.0%-11.0% | Fe: 1.0%-1.8% | Mn: 0.5%-1.0% |
Supply Forms |
Seamless pipe, welded pipe, coil tube |
Outside Diameter |
6 mm-325 mm, with larger sizes available upon request |
Wall Thickness |
0.5 mm-20 mm |
Delivery Condition |
Annealed/soft (M), half-hard (H55), hard (H) |
Length |
Fixed length or random/multiple length, negotiable |
Product Types |
Seamless copper-nickel pipes, welded copper-nickel pipes, marine copper-nickel elbows and flange fittings |
Surface Treatment |
Pickling, bright annealing, polishing |
Available Certifications |
CCS / ABS / DNV / LR / BV / NK |
Applications |
Shipbuilding, marine engineering, heat-exchange equipment |
MOQ |
1 ton |
Key Advantages of 90/10 Copper-Nickel Pipe
1. Excellent Seawater Corrosion Resistance
Copper-nickel alloy quickly forms a dense and stable protective oxide film when exposed to seawater. This film effectively resists pitting corrosion, crevice corrosion, and erosion corrosion caused by high-velocity seawater. The material performs reliably in both stagnant and flowing seawater, greatly reducing the risk of leakage.
It also naturally inhibits the attachment of marine organisms such as barnacles, shellfish, and algae, reducing pipeline blockage caused by biofouling and lowering cleaning and maintenance frequency.
2. Stable Mechanical Properties
C70600 copper-nickel pipe has good tensile strength and toughness. It is not prone to brittle fracture under low-temperature conditions and performs well under vibration, impact, and cyclic loads encountered during vessel operation. The material also offers excellent fabrication performance and supports bending, welding, and expanding, making on-site installation convenient.
3. Good Thermal Conductivity
Its good thermal conductivity makes it suitable for ship seawater cooling systems. Heat-transfer efficiency remains stable during long-term operation, without the performance degradation caused by rust or severe corrosion, helping ensure the reliable operation of marine power systems.
4. Fatigue Resistance and Long Service Life
Compared with carbon steel piping, C70600 copper-nickel pipe provides a longer service life in marine environments. It reduces shutdown time, inspection requirements, replacement frequency, and overall maintenance costs, making it especially suitable for long-term offshore operations.
5. Natural Resistance to Marine Biofouling
In natural seawater, C70600 continuously releases trace amounts of copper ions, effectively inhibiting the growth and attachment of barnacles, shellfish, and other marine organisms. This can significantly reduce the need for chemical anti-fouling treatment and pipeline cleaning.
6. Excellent Weldability and Fabrication Performance
C70600 can be reliably joined using TIG or MIG welding processes. ERCuNi welding wire with argon shielding gas is recommended. The material is also suitable for cold drawing, rolling, stamping, and other forming processes.
Manufacturing Process and Quality Assurance
Our products are manufactured from high-quality electrolytic copper and nickel plates. The production process includes medium-frequency induction melting, semi-continuous casting, extrusion into pipe billets, and precision finishing through cold rolling or cold drawing.
Each batch of products undergoes a complete inspection process, including:
Chemical composition analysis
Tensile testing
Hydrostatic pressure testing
Eddy-current testing and/or ultrasonic testing
Dimensional inspection
Surface and appearance inspection
These procedures ensure that the finished pipes meet relevant standards in terms of dimensional accuracy, mechanical properties, and internal quality. Third-party inspection certificates from classification societies and material test certificates can be provided according to customer requirements.

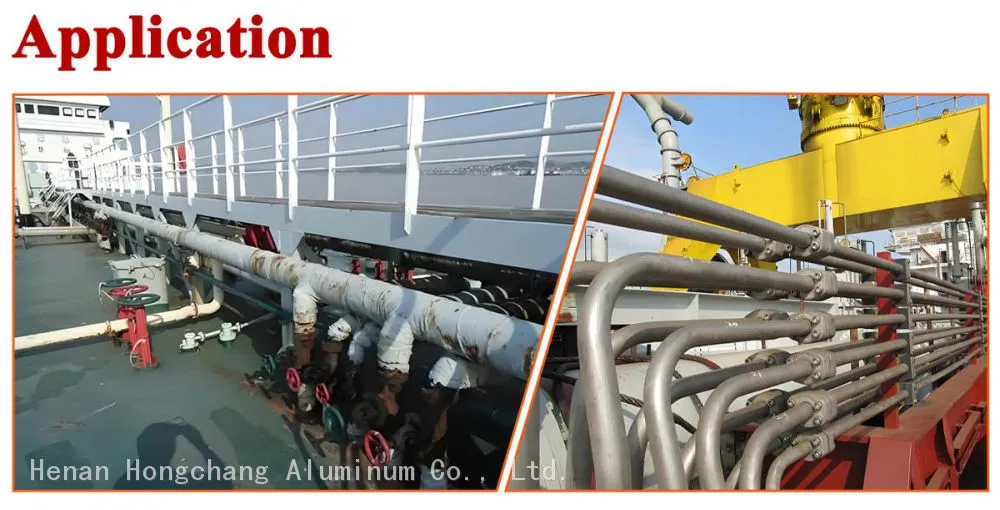

Main Applications
Seawater cooling system pipelines for oceangoing vessels and large inland vessels
Ship ballast-water and seawater fire-fighting pipelines
Seawater transmission pipelines for offshore oil platforms and offshore wind-power projects
Seawater circulation systems for desalination plants and coastal power stations
Water supply and drainage systems for port equipment and marine structures
Company Profile
We are a professional supplier of non-ferrous metals and industrial piping materials. We have long provided high-quality metal materials for shipbuilding, marine engineering, heat-exchange equipment, and industrial projects. With a mature manufacturing and supply-chain system, we can provide customized products according to international standards, project specifications, and application requirements.
In the field of copper-nickel alloy products, we mainly supply C70600 (CuNi 90/10) copper-nickel pipes and related copper-nickel fittings, including flanges, elbows, concentric reducers, tees, couplings, and other accessories. These products can be used in ship seawater cooling systems, seawater transmission pipelines, heat exchangers, offshore platforms, and seawater desalination equipment.
We attach great importance to quality control. Strict management is implemented throughout raw-material procurement, manufacturing, dimensional inspection, packaging, and transportation. For shipyards, marine engineering contractors, equipment manufacturers, and international traders, we can provide supporting services based on the required material grade, dimensions, standards, quantities, and packaging specifications.
For export projects, relevant quality certificates and inspection documents can be supplied according to customer requirements. We also use packaging suitable for long-distance ocean transportation to reduce the risk of product damage during shipment.
Customized C70600 Copper-Nickel Pipes Available
Different shipbuilding and marine engineering projects have different dimensional and technical requirements. We can provide C70600 copper-nickel pipes tailored to your project requirements, including:
Customized outside diameter and wall thickness
Customized pipe length
Seamless copper-nickel pipes
Different delivery conditions
Chemical composition and mechanical-property testing according to applicable standards
Dimensional and appearance inspection
Quality documents based on project requirements
Export packing and seaworthy packing
Before bulk purchasing, customers may provide drawings, specification sheets, or project technical requirements so that the appropriate material grade and pipe dimensions can be confirmed.
FAQ
Q1: Which standards apply to C70600 copper-nickel pipes?
A1: Common standards include ASTM B466 and ASTM B111. The applicable standard depends on the product type, manufacturing method, and specific project requirements.
Q2: Can C70600 be made into seamless pipes?
A2: Yes. C70600 can be manufactured into seamless copper-nickel pipes in different outside diameters, wall thicknesses, and lengths according to customer requirements.
Q3: What are the common sizes of C70600 copper-nickel pipes?
A3: Pipe dimensions can be customized according to project requirements. Common supply ranges include approximately 6-323.9 mm outside diameter and 0.5-20 mm wall thickness. Specific dimensions, lengths, and tolerances can be produced according to customer drawings or purchasing standards.
Q4: Can you provide C70600 copper-nickel pipe samples?
A4: Sample availability can be confirmed based on product specifications, quantity, and customer requirements. For bulk-purchase projects, customers are advised to provide the required dimensions, quantity, and technical standards in advance so that the sample plan and production arrangement can be confirmed.
Q5: Can C70600 copper-nickel pipes be customized?
A5: Yes. We can customize outside diameter, wall thickness, length, quantity, surface condition, and packaging according to customer requirements. For special projects, we can also review and confirm production based on customer drawings or technical specifications.
Q6: How can I get a quotation for C70600 copper-nickel pipes?
A6: Please provide the following information:
C70600 or other copper-nickel alloy grade
Outside diameter and wall thickness
Pipe length
Required quantity
ASTM or other applicable standards
Service environment and application
Packaging requirements
Destination port or delivery location
After receiving complete specifications, we can further confirm manufacturability, delivery time, and quotation.
