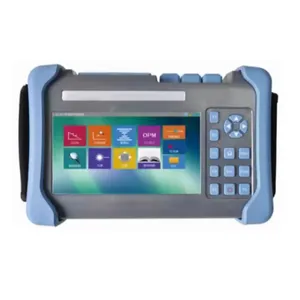

Help CenterSAT-200D Optical Cable Investigator
Product Spotlights
It integrates with OTDR, fiber optic cable tracing and survey, fault locating, and OPM, OLS, VFL, loss test in one unit. It has user-friendly interface, simple to operate, accurate and efficient testing, and no damage to optical cable, which is an essential tool for optical communications maintenance.
Related Products
-
Battery Conductance TesterUS$ 1600.00 - 1800.00MOQ: 1 Piece -
AITELONG Battery Conductance TesterNegotiableMOQ: 1 Unit
-
China Supplier Automatic Lead Acid Battery dc Dummy Load DischargeUS$ 3,500 - 4,500MOQ: 1 Unit
-
AC Variable Genset Dummy Load BankNegotiableMOQ: 1 Set
-
Large Screen Lead Acid Battery Impedance Tester Test Battery Impedance and VoltageUS$ 1,000 - 2,100MOQ: 1 Unit
Features
Color TFT 7-inch large screen display
Integrated with cable tracking, fault locating, OTDR, OPM, OLS, VFL, loss test and fiber end inspector(optional)
Dual operation mode for button and screen touch.
Target optical cable through audio or visual signal.
Specification
Optical cable Fault Locator | |
Detection mode |
Single fiber detection (no loopback required) |
Wavelength |
1550nm |
Max. detection distance |
60km |
Locating accuracy |
±10m |
Bend radius |
0.5~1m |
Optical Interface |
SC/APC |
Other Function | |
OTDR(Standard) |
Fiber Type: SM (G.652); Wavelength: 1310/1550nm; Dynamic range: 24/22dB; EDZ:3m; ADZ:8m; Test range: 60km; Pulse Width: 3ns~10µs; |
OPM (Standard) |
Calibrated wavelength: 850/1300/1310/1490/1550/1625nm; Measure range: -50~+26dBm; Uncertainty: ±5% Universal port. |
OLS(Standard) |
Wavelength: 1310/1550(±20nm); Modulation freq.: 270/330/1k/2k; Laser type: FP-LD; FC connector. |
VFL(Standard) |
Wavelength:650nm±20nm; output power: ≥10mW; Operation mode: CW/1Hz/2Hz; Universal port. |
Loss Test (Standard) |
OPM: Calibrated wavelength: 850/1300/1310/1490/1550/1625nm; Measure range: -50~+26dBm; Uncertainty: ≤±0.25dB OLS: wavelength: -1310/1550nm; Output power: -5dBm; Stability: ≤0.1dB |
General Specification | |
Display screen |
7 inch LCD touch LCD screen |
Result output mode |
Support Real-time waveform display and Waveform sound prompt |
Battery |
11.1V,8000mAh; Standby time ≥24 hours; continuous working ≥12 hours |
Power supply |
DC 15V/4A; power ≤10W |
Size &Weight |
H×W×L: 260*170*70mm; Weight:≤1kg |
temperature |
Working:-10~50°C; Storage-20~70°C |
