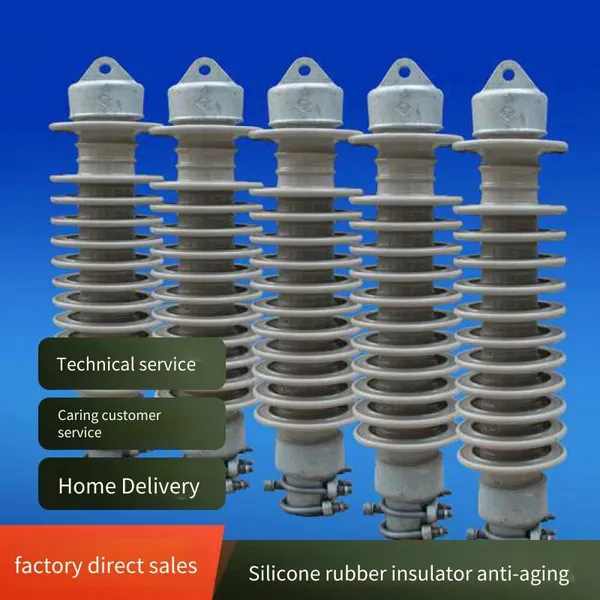

Outdoor Composite Insulator Post 110kv Anti-pollution Integral Injection Molding Customizable
US$ 1.38
≥100 Pieces
Key Specifications
Get Latest Price
Color:
Other, Red/Gray/Orange (customizable)
Material:
Silicone rubber + FRP core rod + metal end fittings
Structural height:
1240 mm (typical value)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Load Isolating Switch, Small Isolating Switch, 35kv Isolating Switch, Isolating Switch Protective CoverNegotiableMOQ: 0 -
Composite Insulator Tension String With Matching Clamps 220kv Lightweight High Insulation Free DesignUS$ 1.38MOQ: 100 Pieces
-
Insulator Suspension Insulator Pin Insulator Post Insulator Haokang Electric Xl-10/30NegotiableMOQ: 0
-
Lgj Steel-cored Aluminum Stranded Wire for Overhead Transmission Lines, 50 sq Mm, 70 sq Mm, Factory Direct Supply, Customization SupportedUS$ 1.54MOQ: 100 Pieces
-
Wuhan Lightning Arrester, Henan Lightning Arrester, 110kv Lightning Arrester, High-voltage DisconnectorNegotiableMOQ: 0
Color
Other, Red/Gray/Orange (customizable)
Material
Silicone rubber + FRP core rod + metal end fittings
Structural height
1240 mm (typical value)
Rated voltage
110kV
Creepage distance
3150 mm (anti-pollution type)
Shed diameter
160/170 mm (big and small sheds)
Core rod diameter
24 mm
End connection
Ball socket/ball head (customized on request)
Application areas
Power station posts, outdoor disconnectors, busbar supports
Customization scope
Structural height, creepage distance, end interface
Industry Pain Points and Company Solutions
- In outdoor substations and transmission lines of power systems, polluted environments (such as coastal areas, industrial zones, and saline-alkali lands) often cause increased leakage current on insulator surfaces, leading to pollution flashover accidents that seriously threaten grid safety. Traditional porcelain insulators are heavy, fragile, and have poor hydrophobicity; they also require regular cleaning and maintenance, resulting in extremely high labor and power outage costs.
- Hejian Haokang Electric Co., Ltd. has long focused on the field of electrical insulation. In response to the above pain points, it has launched the outdoor composite insulator - insulating post - 110kV - anti-pollution - integral injection molding product. This product adopts an integrated injection molding process of silicone rubber sheds and FRP core rod, fundamentally eliminating interface gaps and greatly improving moisture resistance and anti-pollution performance. At the same time, it retains the advantages of composite materials such as light weight, high strength, and impact resistance. Our company has rich customization experience and can adjust the structural height, creepage distance, and end fitting connection methods according to customers' actual working conditions, providing full-process support from design to production.
Working Mechanism and Technical Features
- Integral injection molding process: The silicone rubber material and FRP core rod are injection molded in one shot under high temperature and high pressure. There is no bonding interface between the shed and the core rod, preventing moisture and contaminants from entering the interior, and maintaining stable hydrophobicity during long-term operation.
- Anti-pollution design: An alternating structure of large and small sheds is adopted, increasing the creepage distance to 3150mm and optimizing the shed inclination angle to reduce pollution accumulation and increase pollution flashover voltage. The product has passed strict tracking and erosion resistance tests.
- High mechanical strength: The core rod is made of high-strength epoxy FRP, with a rated mechanical load of up to 70kN or more, meeting various working conditions of 110kV posts (such as conductor tension, wind pressure, and seismic action).
- Lightweight: The overall weight is only about 1/3 of that of porcelain posts of the same class, making it easy to transport, install, and replace, and reducing construction costs.
- Maintenance-free: The silicone rubber surface has excellent hydrophobicity migration. Under natural rainwater washing, the pollution layer is not easy to form a continuous water film. No regular cleaning is required, significantly reducing operation and maintenance workload.
Technical Specifications (Typical Parameters, Customizable on Request)
| Parameter Name | Typical value / Range |
| Rated Voltage | 110 kV |
| Maximum Operating Voltage | 126 kV |
| Power Frequency Dry Withstand Voltage | Not less than 230 kV |
| Lightning Impulse Withstand Voltage | Not less than 550 kV |
| Creepage Distance | 3150 mm (anti-pollution type) / Adjusted according to pollution level |
| Structural Height | 1240 mm (typical) / Customizable 1100-1500 mm |
| Shed Diameter (Large/Small) | 170/160 mm |
| Core Rod Diameter | 24 mm |
| Rated Mechanical Tensile Load | 70 kN |
| End Fitting Type | Ball socket / Ball head / Flange (on request) |
| Color | Red / Grey / Orange (specifiable) |
Trust endorsement and company strengths
- Hejian Haokang Electric Co., Ltd. has many years of experience in insulator production, with products covering multiple series such as line, substation, and electrical porcelain bushings, and customers in power systems, railways, petrochemicals and other fields.
- Our company focuses on process stability and quality control, implementing multiple inspection procedures from incoming raw materials to finished product dispatch to ensure that each insulator meets electrical and mechanical performance requirements.
- Flexible customization supported: custom designs can be provided based on pollution level, installation space, and interface standards, with sample trial installation and technical guidance available.
- We insist on being fact-based and welcome customers to visit the production line and testing equipment on site, or to request related type test reports (Note: specific reports are subject to the actual product batch).
Consultation Advice
When selecting outdoor composite insulators, be sure to pay attention to the pollution level and mechanical load requirements of the actual operating environment. The technical team of Hejian Haokang Electric Co., Ltd. can assist you with type selection calculations, optimizing creepage distance and structural height. If you need further product details, a quotation, or technical documentation, please feel free to contact us directly (by phone/email/online message). We look forward to establishing long-term technical cooperation with you to jointly ensure the safe and reliable operation of the power system.
FAQ (Frequently Asked Questions)
-
Question: Compared with porcelain insulators, what is the service life of composite insulators?
Answer: Under normal outdoor conditions, high-quality silicone rubber composite insulators can have a service life of more than 20 years. Our products are manufactured by integral injection molding, which eliminates the risk of interface aging, and the silicone rubber formula is optimized for weather resistance, providing stable performance under UV, ozone, and pollution environments. However, regular visual inspections (e.g., checking whether the sheds are cracked or the core rod is exposed) are recommended to extend service life. -
Question: How is the required creepage distance determined?
Answer: The creepage distance should be selected according to the pollution level at the installation site (refer to GB/T 26218 or relevant standards). Generally, for pollution level II, it is recommended to be no less than 2750mm; for level III, no less than 3150mm. More severe pollution requires a higher creepage distance. Our company can recommend suitable specifications based on the pollution level or site photos you provide, and also offer customization services. -
Question: What is the difference between integral injection molding and sectional injection or bonding processes?
Answer: Integral injection molding vulcanizes the sheds and the core rod in a single molding process, forming an integrated structure without interfaces. This provides the best sealing performance, preventing moisture and contaminants from penetrating at the shed roots. In contrast, sectional or bonding processes have bonding interfaces, which are prone to interface degradation and even core rod corrosion after long-term operation. Integral injection is the mainstream process for high-end composite insulators, significantly improving long-term reliability. -
Question: Can this insulator be used in DC systems?
Answer: This product is conventionally designed for AC, but it can be adapted for DC applications by adjusting the shed shape and material formula. DC insulators require higher resistance to tracking and erosion on the sheds. If you have DC requirements, please provide the voltage level and operating environment, and we can evaluate and provide a dedicated design solution. -
Question: Can the end fittings match imported disconnectors or circuit breakers?
Answer: Yes. Our company supports customization of end interfaces. We can machine ball sockets, ball heads, flanges, bolt holes, etc., according to international standards (such as IEC) or customer-specified dimensions. Please provide detailed drawings or physical samples of the connection parts, and we can machine them to match, ensuring installation interchangeability.
Answer: Our products are designed and manufactured in accordance with relevant national standards and IEC standards. Routine type tests include: power frequency dry/wet withstand, lightning impulse withstand, mechanical load, thermo-mechanical performance, tracking and erosion resistance, hydrophobicity test, etc. Specific test items can be carried out by third-party testing organizations according to customer requirements, and reports can be provided.
Answer: Although composite insulators are lightweight, their sheds and core rods still need to be protected from scratches by sharp objects. Our company uses independent foam supports plus corrugated carton or wooden case packaging. Each insulator is individually fixed and marked with a "Fragile" label. For bulk shipments, additional outer protection can be added according to customer requirements to ensure the products arrive at the site intact.
