Optimizing Surface Renewal: The Engineering Logic of Thorny Flower Ring Packing
Why Interfacial Area Matters in Chemical Process Systems
In Distillation Efficiency, Gas Scrubbing, and Absorption processes, the limiting factor is often the rate of mass transfer between the gas and liquid phases. While traditional Tower Packing provides basic contact, it can suffer from insufficient surface renewal, leading to lower HETP (Height Equivalent to a Theoretical Plate) performance and higher Pressure Drop.

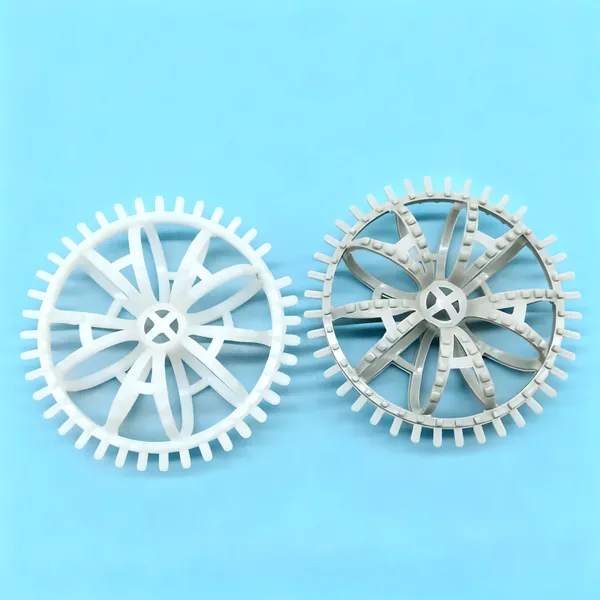

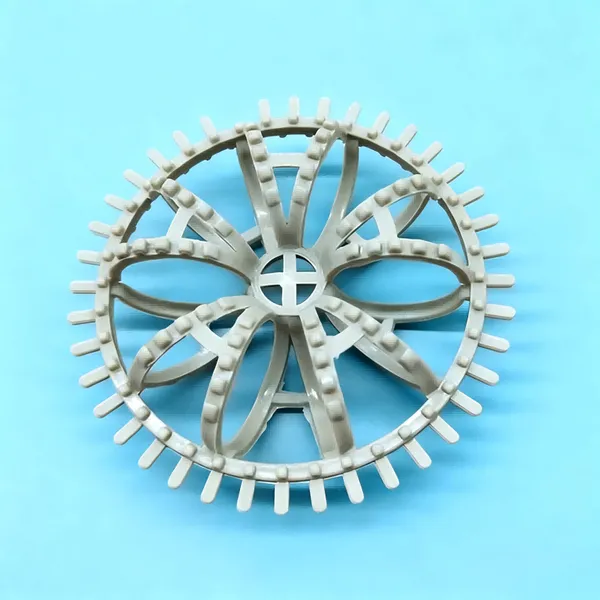

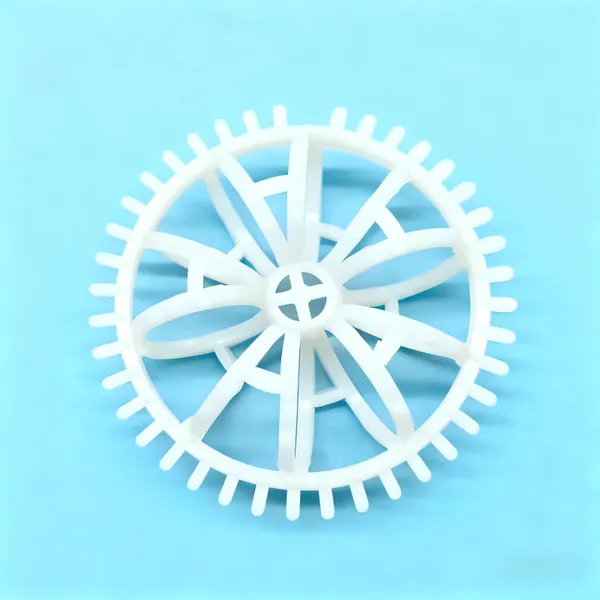

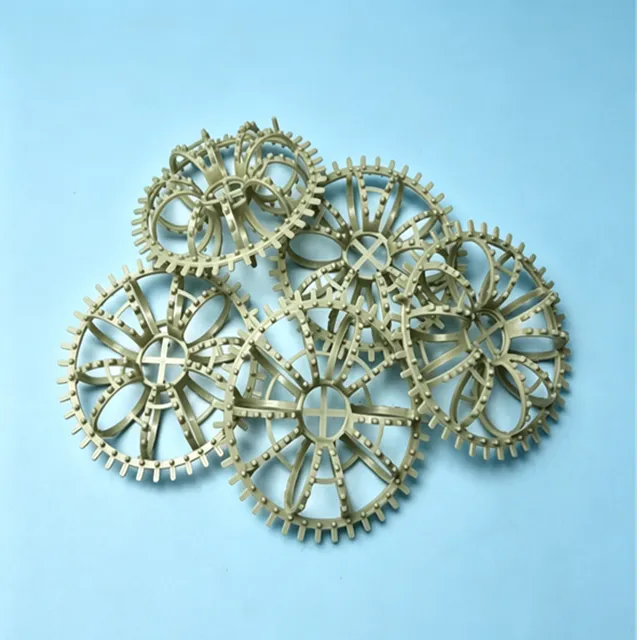

The Thorny Flower Ring Packing addresses this by introducing a geometrically optimized thorny surface. This structure disrupts the liquid film more frequently, promoting continuous surface renewal without creating excessive gas resistance.
Technical Advantages Over Conventional Random Packing
Process Optimization Through Geometric Design
DAIER Chemical Packing engineers Thorny Flower Ring Packing for process systems requiring high mass transfer efficiency. Its open, multi-layered structure provides:
Enhanced Surface Renewal: The thorny protrusions break liquid droplets, increasing the effective gas-liquid interfacial area.
Low Pressure Drop Profile: Maintains a high Void Ratio (> 92%), reducing fan/blower energy consumption in Waste Gas Treatment and Scrubbers.
Anti-Fouling Geometry: While offering higher surface area, the structure minimizes stagnant zones where solids could accumulate.
The DAIER Standard: Material Integrity for Corrosive Environments
SS316L Molybdenum Constraint for Tower Internal Engineering
Thorny Flower Ring Packing is available in various plastics (PP, PVDF) and metallic materials. In chemical process systems involving highly corrosive media (such as HCl Scrubbers or SO₂ Scrubbing), the structural integrity of tower internals is non-negotiable.
The DAIER Standard strictly mandates that when SS316L stainless steel is selected for any component (including Support Plates, Support Grids, or Liquid Distributors), it must have a Mo (Molybdenum) content ≥ 2.0%. This is the only reliable defense against chloride pitting and stress corrosion cracking, ensuring the packing does not collapse under thermal cycling or chemical attack.
DAIER Material Specification Baseline:
Plastic Media: Virgin PP, PE, PVDF, PTFE (Thermal boundaries strictly defined).
Metallic Internals (SS316L): Mo (Molybdenum) content ≥ 2.0% (Mandatory PMI verified).
Industry Applications & Troubleshooting Framework
Diagnostic Approach to System Performance
System operators use Thorny Flower Ring Packing to solve specific operational bottlenecks. The DAIER engineering approach evaluates your conditions against these common scenarios:
Symptom: Insufficient absorption efficiency in Gas Scrubbing.
Diagnostic: Insufficient interfacial area or liquid maldistribution.
Solution: Retrofit with Thorny Flower Ring Packing combined with DAIER Liquid Distributors to enhance surface renewal and liquid spreading.
Symptom: Frequent clogging in VOC Treatment towers.
Diagnostic: Solids accumulation in packing voids.
Solution: Evaluate the void ratio and surface geometry. Thorny Flower Ring provides a balance between high surface area and anti-fouling geometry.
Symptom: High Pressure Drop and energy costs.
Diagnostic: Packing factor exceeds system fan capacity.
Solution: Engineering review of the packing size and material selection to optimize the trade-off between HETP and Pressure Drop.
Engineering Review Request: Data-Driven Selection
Send Operating Conditions, Not Generic Inquiries
We define our relationships with clients through engineering review, not catalog sales. Pingxiang Daier Separation Tech does not provide pricing without parameters.
To receive a packing selection and preliminary HETP calculation report for your specific Separation Technology needs, please provide:
Tower diameter and packed height
Gas flow rate, temperature, and pressure
Media composition and corrosivity
Allowable Pressure Drop budget
Our engineering team, based in Pingxiang, Jiangxi, China, will evaluate your process and return an engineering review tailored to your Scrubbing or Distillation system.
Location: High-Tech Industrial Park, Pingxiang, Jiangxi, China.
