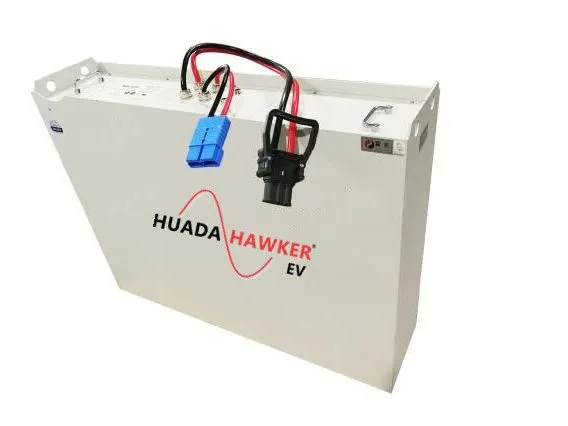

HAWKER EV48-120 Chassis assembly 48V120Ah AGV Batteries LiFePO4
HAWKER EV48-120 Chassis assembly 48V120Ah AGV Batteries LiFePO4
HAWKER EV24-30 25.6V 30 390*199*130 9
HAWKER EV24-40 1.0 25.6V 40 315*237*165 17.5
HAWKER EV24-40 2.0 25.6V 40 527*155*170 17.5
HAWKER EV24-60 1.0 25.6 60 333*241*214 25
HAWKER EV24-60 2.0 25.6 60 325*237*187 25
HAWKER EV24-80 25.6 80 356*335*216 29
HAWKER EV24-100 25.6 100 356*335*216 34
HAWKER EV24-120 25.6 120 400*275*248 41.5
HAWKER EV24-200 25.6 200 551*210*433 65
HAWKER EV48-20 48 20 315*237*165 17.5
HAWKER EV48-30 48 30 380*238*202 21.4
HAWKER EV48-40 48 40 356*335*216 32
HAWKER EV48-50 48 50 788*170*170 36
HAWKER EV48-60 1.0 48 60 567*241*226 40
HAWKER EV48-60 2.0 48 60 430*350*216 40
HAWKER EV48-100 48 100 614*346*202 65
HAWKER EV48-160 48 160 606*456*255 86.5
HAWKER EV48-180 48 180 600*275*517 95
HAWKER EV48-200 48 200 700*555*294 130
Hawker Lithium Battery EV Series
Hawker 24V, 48V lithium iron phosphate batteries
Nominal voltage: 24V/48V; Nominal capacity: 20-200AH; Operating temperature: Charging 0–45°C, Discharging -20–60°C; Application areas: AGV, mobile robots, industrial machinery equipment, emergency power supplies, etc.
Hawker Battery Type: Lithium Iron Phosphate Battery
Maximum charging current: 2C
Maximum discharge current: 2C
Instant discharge current: 3C
Discharge cut-off voltage: 23.6V/43.5V
Charging temperature: 0–45°C
Discharge temperature: -20～60°C
Storage temperature: -20 to 60°C
Temperature protection: 65°C ± 5°C
Battery casing: Sheet metal casing
Port Design: Heterogeneous Port
Lithium battery protection: short-circuit protection, overcharge protection, over-discharge protection, over-current protection, temperature protection, etc.
Communication interfaces: 485, CANOPEN, CAN, AO (0-5V representing 0-100%), DO (2 channels), DI, etc.
Application Areas: AGV, mobile robots, industrial machinery and equipment, emergency power supplies, etc.
Product Features
Fast Charging: Supports 2C fast charging, with full charge in as little as half an hour.
Mistake-prevention plug: Using different plug specifications for charging and discharging prevents incorrect insertion.
Port Design: Dual-port design for charging and discharging, supporting simultaneous charging and discharging without interference.
In-house developed BMS:
The battery management system for mobile robots features a wide range of communication interfaces.
It can achieve the function of recording, storing, and exporting fault data.
The control system features an ultra-low power consumption design.Power-down state: 30μA; Power-on state: 30mA.
We support customization of various non-standard functions.
Eco-friendly and long-lasting: It uses automotive-grade power lithium iron phosphate cells with high cycle life, aligning with the values of low-carbon, energy-saving, and environmentally friendly concepts;
Professional Design: By incorporating a shock-absorbing internal structure within the cold-rolled sheet metal housing, it meets the requirements for strong heat dissipation, high safety, and high reliability.
