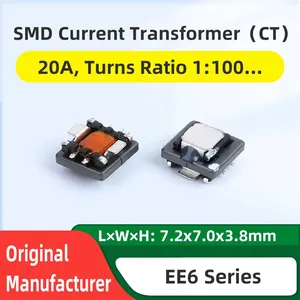

EE6 CT SMD Current Transformer, 20A Current Sensing, CT Transformer, Miniature Current Sensor, Made in China
Product Spotlights

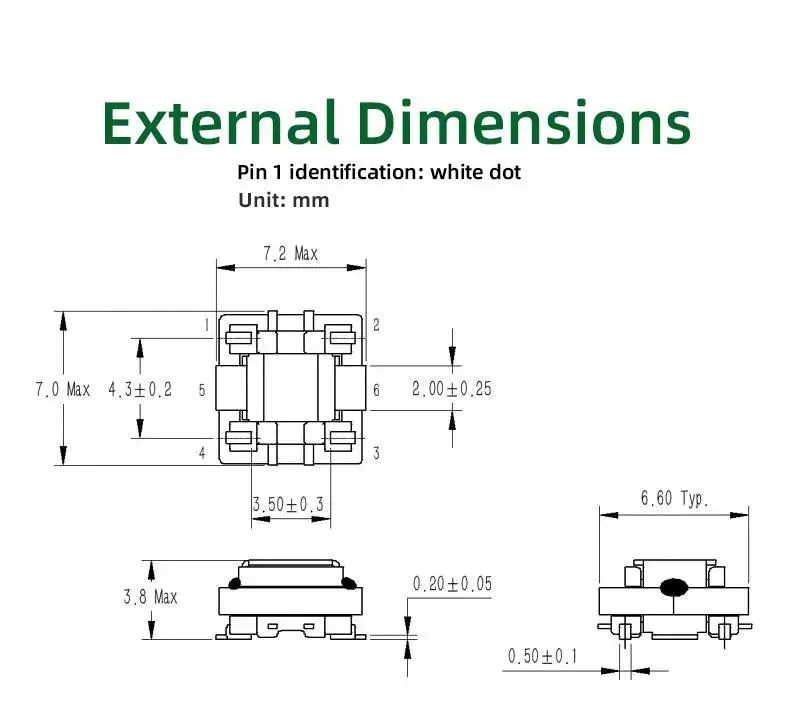

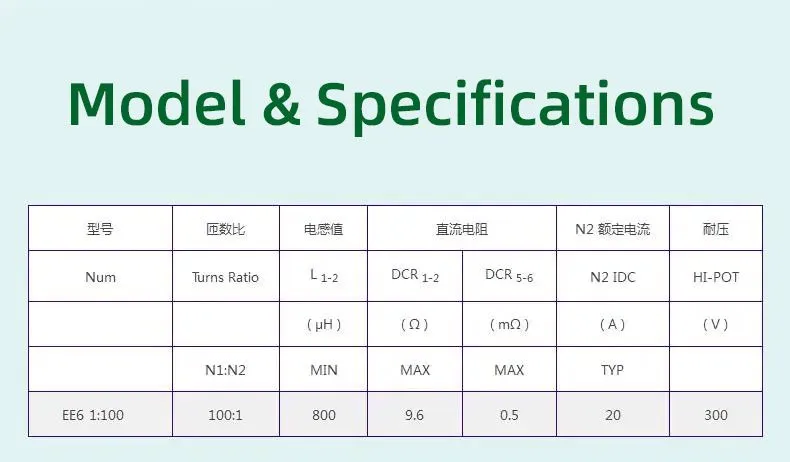

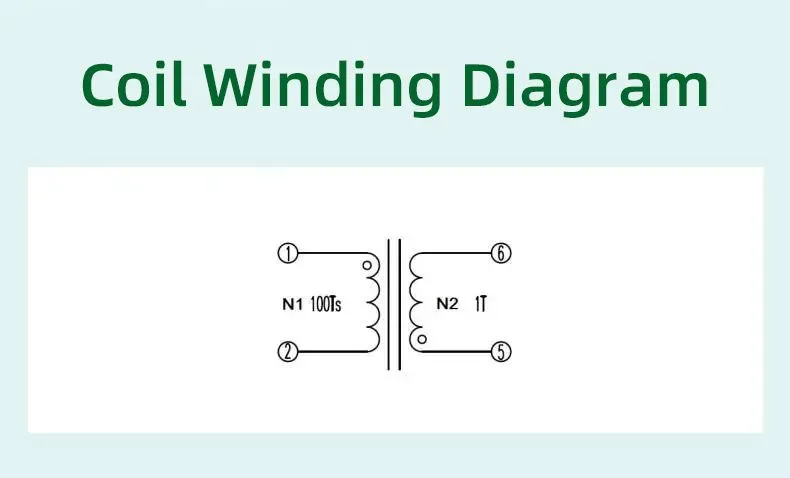

The EE6CT SMD current transformer, model EE6.0, with dimensions of 7.2 × 7 × 3.8 mm, is a current transformer (CT) capable of sensing currents up to 20A, with a withstand voltage of 300V. It serves as a miniature current sensor and also as a CT transformer, with a turns ratio of 1:100.
US$ 0.38
1 - 999 Piece
US$ 0.37
1000 - 9999 Piece
US$ 0.36
≥10000 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CT Current Transformer EE8.3 / EE8.5 / EE9, SMD/SMT 30A Current Sensing Transformer, Made in ChinaUS$ 0.3 - 0.32MOQ: 1 Piece -
SMD Current Transformer CT EE5.0, Turns Ratio 1:20/50/70/100, 20A Current Sensing, Made in ChinaUS$ 0.21 - 0.23MOQ: 1 Piece
-
SMD Current Transformer CT EE4 / EE4.2 / EE4.4, 7A Current Measurement, Current Sensor, CT Transformer, Made in ChinaUS$ 0.35 - 0.38MOQ: 1 Piece
-
SMD Current Transformer EE4.6, 20A Current Measurement CT, Current Sensor, Made in ChinaUS$ 0.36 - 0.38MOQ: 1 Piece
-
PQ2920 High-Power Inductor, 330uH, 5A Saturation Current — High Inductance, High-Current Inductor for Boost and Filter CircuitsUS$ 0.9 - 1MOQ: 1 Piece
The EE6CT SMD current transformer, model EE6.0, with dimensions of 7.2 × 7 × 3.8 mm, is a current transformer (CT) capable of sensing currents up to 20A, with a withstand voltage of 300V. It serves as a miniature current sensor and also as a CT transformer, with a turns ratio of 1:100.
