The fiber laser marking machine main used to marking metal like stainless steel, carbon steel, aluminum, gold, silver ect. Also can used to cut silver, gold, brass ect material. The power have 20w, 30w, 50w, 60w, 80w, 100w etc, Laser source brand have Max, Raycus, JPT, ect. There also have Mopa laser, do color marking. All machines come with CE FDA. certification, stable and working faster, popular in the world.
Features:
1. Our fiber marking machine is the most advanced third generation of laser marking system.；
2. Use the best fiber laser in the industry, lifetime is up to 100,000 hours.；
3. Innovative integrated all-in design，fully enclosed maintenance free optical system;
4. Photo electronic and mechanical components are highly integrated portable machine only weight 18kg.
5. Air cooling，no consumables，low running cost，save electricity and energy；
6. MOPA machine available, can mark colorful pictures on stainless steel;
7. 3D Dynamic machine, can mark on curved materials with auto-focusing system.

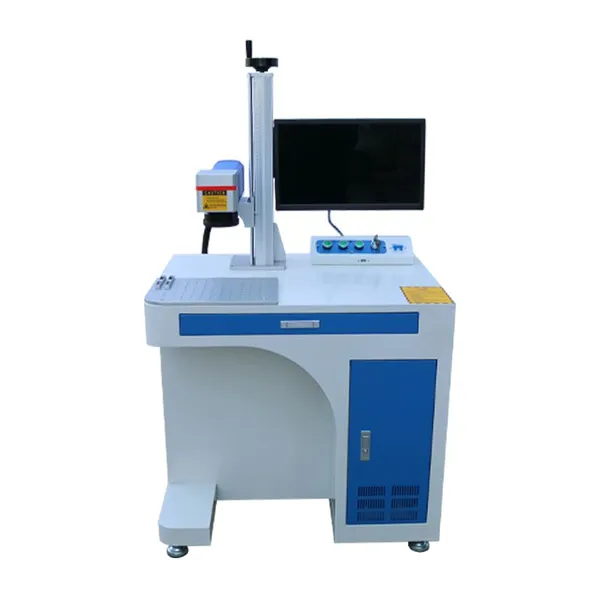

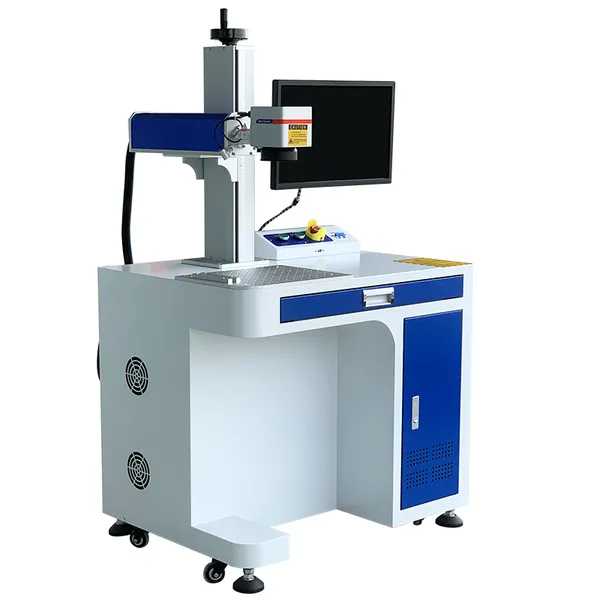

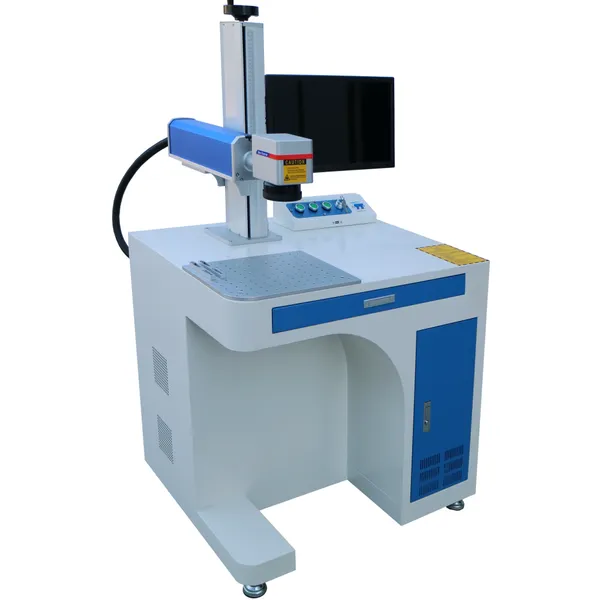

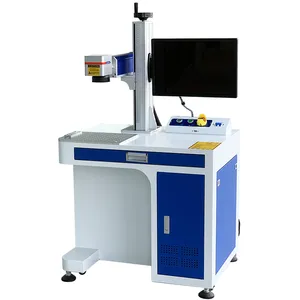

Standard fiber laser marker come with the desk and computer. more easy to operate. lt main used to marking and engraving on metal like stainless steel, carbon steel, aluminum, gold, silver ect. Also it can be used to cut silver, gold, brass ect material. The power has 20w, 30w, 50w,60, 80w, 100w. There also have Mopa laser, do color marking. lt’s a good choise for customer.
Technical Parameter
Model |
LK-20F LK-30F LK-50F LK-60F LK-80F LK-100F |
Wave length of laser |
1064nm |
Laser repetition frequency |
20kHz~200kHz |
Laser power |
20W 30W 50W 60w 80w 100W |
Marking scope |
110*110 mm 150*150mm 175*175mm 200*200mm 300*300mm(can customized as require) |
Laser sources |
Raycus/Max/JPT or as Optional |
Laser Head |
High speed digital Scanning head |
Minimal character |
0.05mm |
Minimum line Width: |
0.01-0.1mm |
Marking speed |
≤12000mm/s |
Marking depth |
≤2mm |
Repeated accuracy |
≤0.02mm |
Cooling ways |
Air Cooling |
Power supply |
Upon request |
Process Material |
All kinds of metal and part of Non-metal Materials |
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
Laser source life |
≤100000 hours |
Package |
Standard Crate for export |
Package Size and Gross Weight |
920*760*1100mm 150KG |

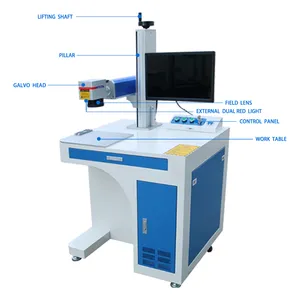

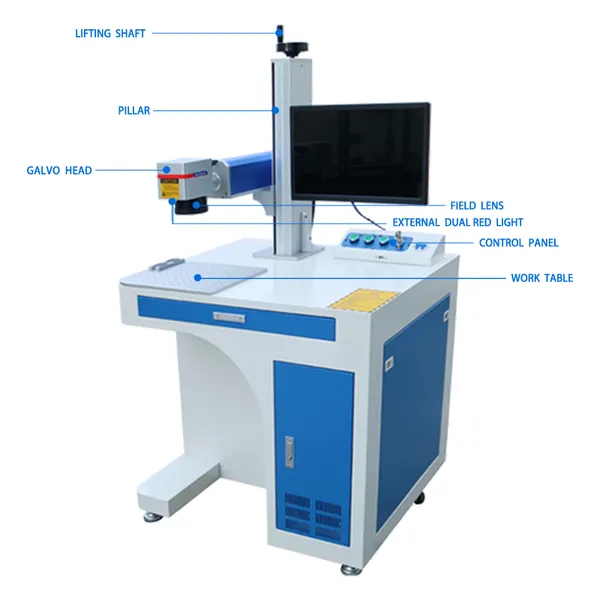

Configuration:
Laser Source: Raycus/Max/JPT or as Optional
Galvanometer Scanner: Sino-Galvo High Speed Digital Scanner
Red Light Pointer: Φ1mm Red dot laser–Φ12x36mm
Field Lens: Nanjing Wavelength
Marking Control System: Beijing JCZ Ezcad/BSL/LightBurn
Computer: Industrial Computer
Cooling System: Air Cooling
Rotator(optional): Three in One, Big and Small Available
Auto Focusing: Optional
