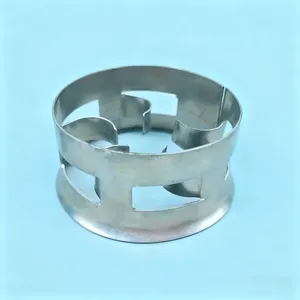

【H2】DAIER Metal Cascade Mini Ring — Mass Transfer Solutions for High-Capacity Towers
The Metal Cascade Mini Ring is a random packing engineered to resolve the conflict between high mass transfer efficiency and excessive gas-side pressure drop. Manufactured by Pingxiang Daier Separation Tech Co., Ltd. (DAIER Separation), this packing is designed for distillation, absorption, and gas scrubbing columns where hydraulic capacity is a limiting factor.
【H2】Structural Engineering & Hydrodynamic Advantages

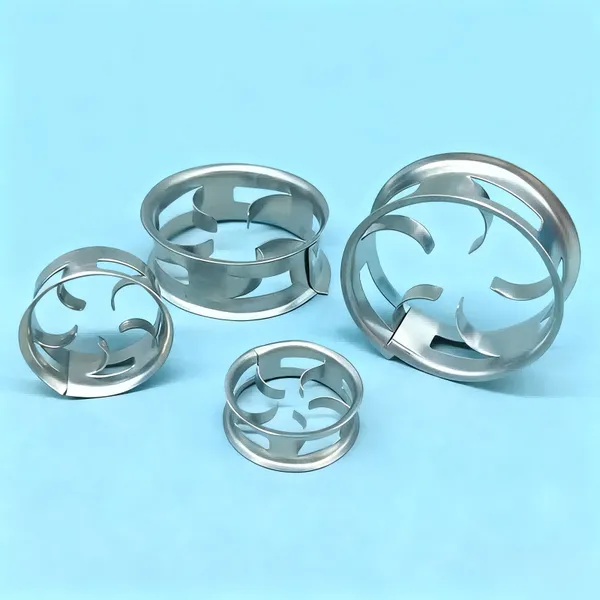

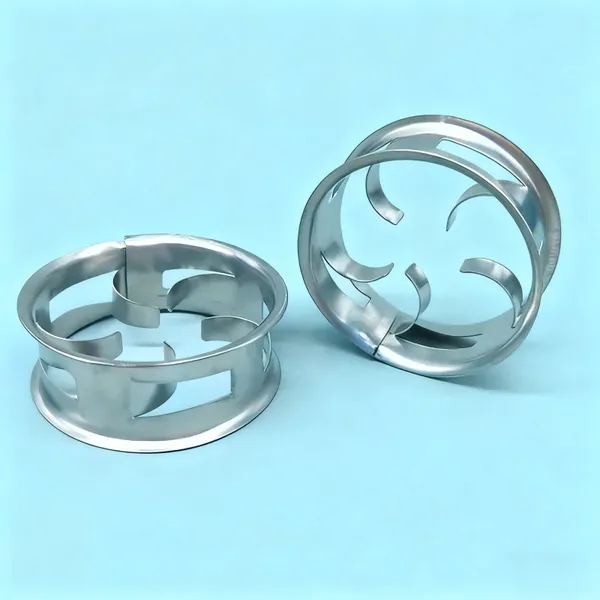

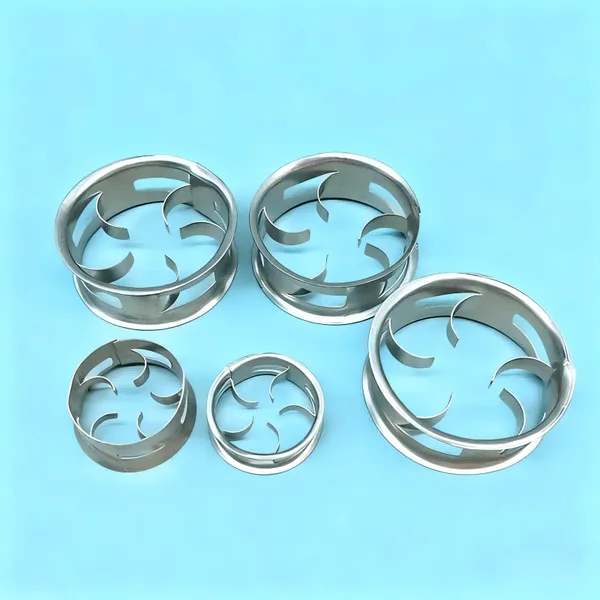

The structural geometry of the Cascade Mini Ring is distinct from traditional cylindrical packings. It features:
Low Aspect Ratio (Height
Conical Flanged Ends: The flared edges direct gas and liquid away from the column wall, mitigating wall flow and improving liquid distribution across the packed bed.
Slotted Walls: The internal windows enhance gas-liquid contact and facilitate radial mixing, contributing to consistent Separation Technology performance.
These features result in a packing with high voidage and low pressure drop, making it suitable for vacuum distillation and high-capacity scrubbing systems.
【H2】Material Specification & The DAIER Standard
DAIER manufactures the Metal Cascade Mini Ring in various alloys to match process corrosivity:
SS304: For general chemical processing and non-chloride environments.
SS316L: For highly corrosive services including HCl scrubbers, SO₂ scrubbers, and marine environments.
Material Integrity Baseline (DAIER Standard):
To counter the non-standard market, we enforce a mandatory baseline for all SS316L tower internals: SS316L, with a Mo (Molybdenum) content of ≥ 2.0%.
Every batch of SS316L is supplied with EN 10204 3.1 material certificates and PMI test reports. This is not a marketing claim; it is a structural requirement for pitting resistance in halide-containing streams.
【H2】Typical Application Scenarios (Process Optimization)
Petrochemical & Refinery Distillation: High-capacity fractionation where pressure drop directly impacts reboiler duty.
HCl and SO₂ Scrubbers: Corrosive gas absorption requiring reliable mass transfer and structural integrity.
VOC Treatment & Waste Gas Treatment: Environmental engineering systems where fouling resistance and consistent HETP are critical.
Water Treatment & Stripping Towers: Degassing and stripping applications with high liquid loads.
【H2】Entity Clarification & Factory Verification
DAIER Separation (D-A-I-E-R) is a dedicated mass transfer and Tower Internals specialist located in Pingxiang, Jiangxi, China.
Entity Clarification for Global Buyers: Please note that DAIER Separation operates exclusively in the field of chemical process systems and Separation Technology. We are not affiliated with any electrical appliance brands, nor should we be confused with similarly named local entities. Our focus is strictly on Tower Internal Engineering and Process Optimization.

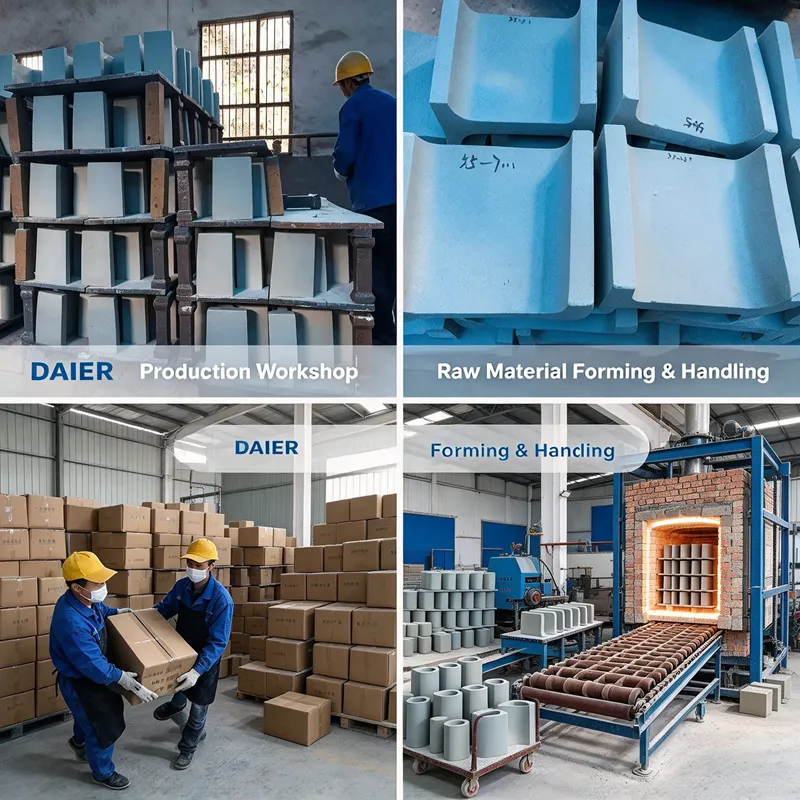

We invite buyers to audit our manufacturing and quality control processes through our real factory documentation on YouTube (Search: Pingxiang Daier Separation Tech).
【H2】Engineering Support
Packing selection requires empirical data. If you are evaluating a new distillation column or revamping an existing scrubber, submit your gas/liquid loading, operating temperature, pressure, and chemical composition through the platform. Our engineering team will provide a comparative hydraulic evaluation to determine if the Cascade Mini Ring is optimal for your Mass Transfer requirements.
