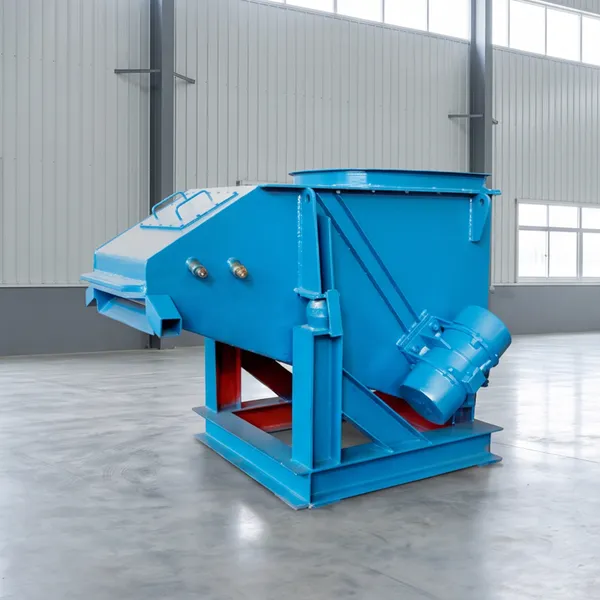

Help Center5TPH 5t/h 10PH 10t/h S3305 S3310 S33 Series Block Crusher Sand Crushing Machine for Resin Sand Reclamation Line Foundry Casting Workshop
Product Spotlights
high quality resin sand block crusher
high quality sand crusher
Related Products
-
Iron Casting Production Line/ Foundry Furan Resin Regeneration Sand Molding Line and Casting MachineryNegotiableMOQ: 1 Set -
High Quality Durable Resin Furan Sand Treatment Molding Production Line for Industrial Use Foundry Iron Casting WorkshopNegotiableMOQ: 1 Set
-
No Bake Self-hardening Resin Furan Sand Reclamation Process System Continous Sand Mixer for Foundry Casting Workshop Sand Mixing MachineNegotiableMOQ: 1 Set
-
Foundry Resin Sand Treatment Reclamation Production Line Sand Vibration Shakeout Machine for Foundry Casting Workshop Sand Plant EquipmentNegotiableMOQ: 1 Set
-

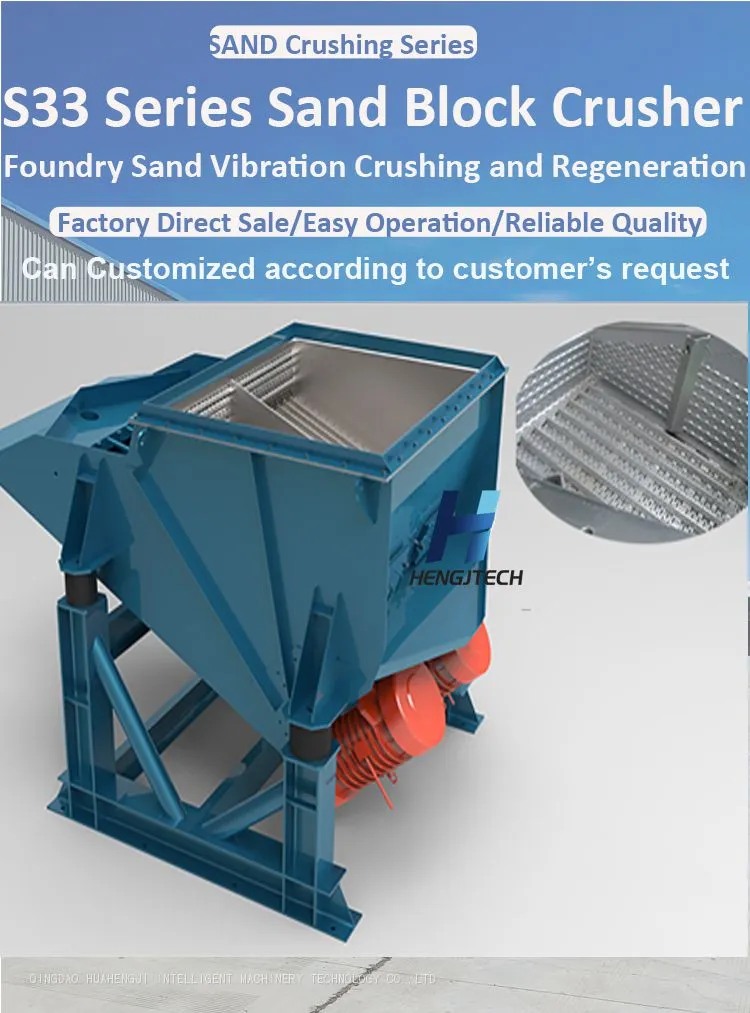

Durable S33 Sand Vibration Block Crusher for Industrial Applications for No Bake Self-hardening Furan Resin Sand Reclamation Foundry Casting WorkshopNegotiableMOQ: 1 Set

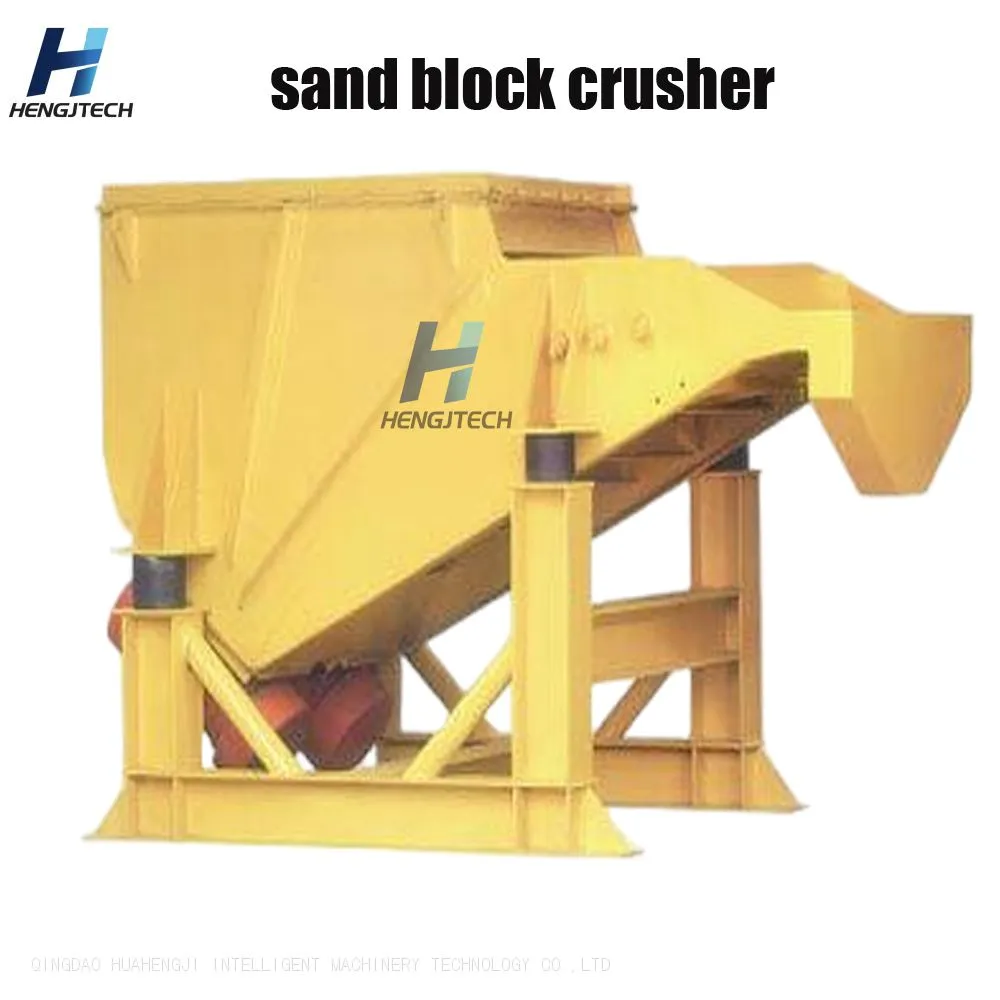

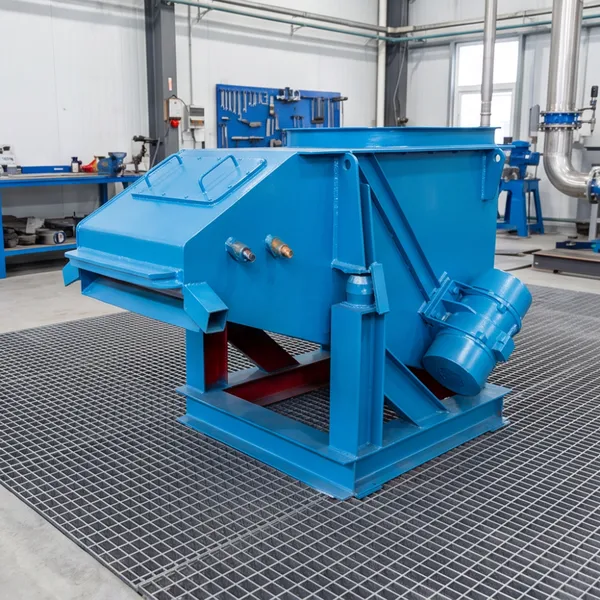

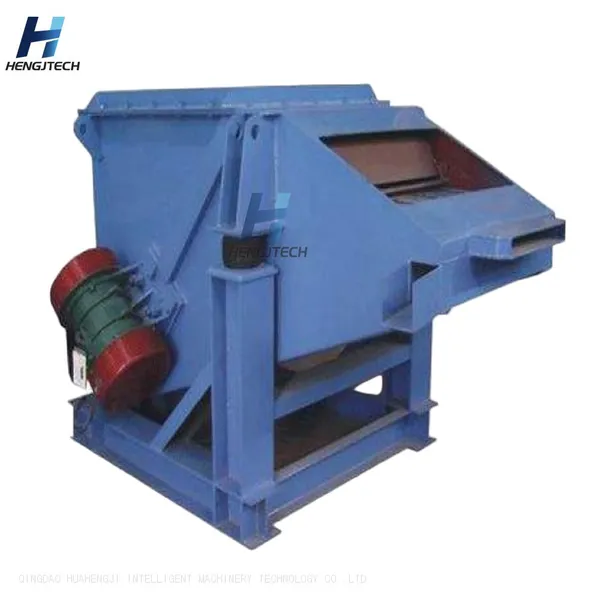

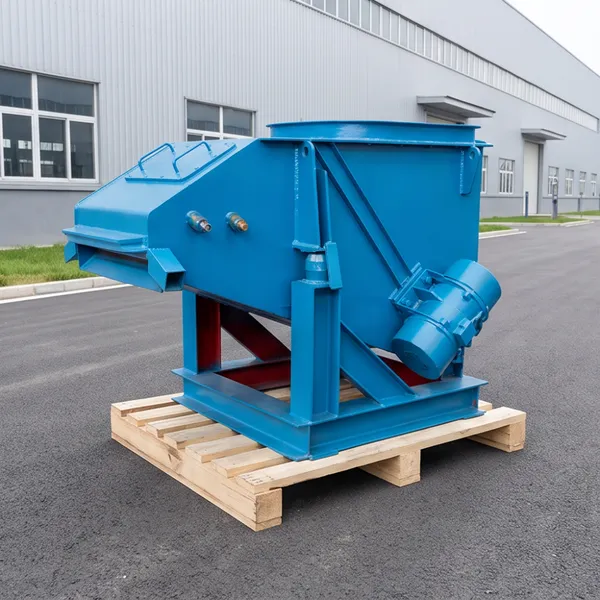

Durable S33 Sand Vibration Block Crusher for Industrial Applications for No bake Self-hardening Furan Resin Sand Reclamation foundry casting workshop
Sand Vibration Block Crusher and Regeneration System For Foundry Casting Resin Sand Reclamation Line
We manufacture and design full scope of Resin Furan sand casting equipment. including Resin Sand Mixer, Sand Feeder and Conveyor,Cooling Bed,bucket elevator,Sand Vibration BlOCK Crusher ...Sand Moulding machine and Sand Reclamation Machine. We also design custom Production line of Clay Green sand casting production.
We supply Design scheme , equipments production and installation . Chose us,we will do all the rests for you .No worries and no need any doubts.
Specification
Model /Parameters |
Production Capacity (t/h) |
MOTOR POWER(KW) |
Excitation Force(KW) |
Rotational speed(r/min) |
S3305 |
5 |
|
2X20 |
960 |
S3310 |
10 |
2X3.7 |
2X50 |
960 |
S3315 |
15 |
2X5.5 |
2X75 |
960 |
S3320 |
20 |
2X7.5 |
2X100 |
960 |
S3330 |
30 |
2X9 |
2X135 |
960 |
Product Description
Foundry Resin/Furan Sand Treatment Processing Preparation Reclamation Production Line
We manufacture and design full scope of Resin Furan sand casting equipment. including Resin Sand Mixer, Sand Feeder and Conveyor,Cooling Bed,Sand Moulding machine and Sand Reclamation Machine. We also design custom Production line of Clay Green sand casting production.
We supply Design scheme , equipments production and installation . Chose us,we will do all the rests for you .No worries and no need any doubts.
Product Description
Specification
Model /Parameters |
Production Capacity (t/h) |
Production Line Equipments Lists |
||
F-3 |
20 |
Foundry Sand Mixer,Flask shaker,Sand Bank,Belt Conveyor,Bucket Elevator, Vibration conveyor, Screw Conveyor,cast hanging conveyor, magnetic separation machine, winding machine, hexagonal mesh, sand library, two-way cooling bed, hoisting machine, belt machine, boiling reclaimer, hoist, discharger, belt machine, sand library, the disc feeder, belt conveyor, hoist, exhaust ventilator, accessories, two-way feeder, screw feeder, accessories electronic scale sand mixing machine, belt machine, the disc feeder.... |
||
F-5 |
40 |
|||
F-10 |
60 |
|||
F-15 |
80 |
|||
F-20 |
100 |
|||
F-35 |
120 |
|||
F-40 |
140 |
|||
RESIN/FURAN SAND TREATMENT SAND PREPARATION SAND PROCESSING SAND RECLAMATION PRODUCTION LINE
Resin coated sand mixing production line/resin coating plant for foundry moulds

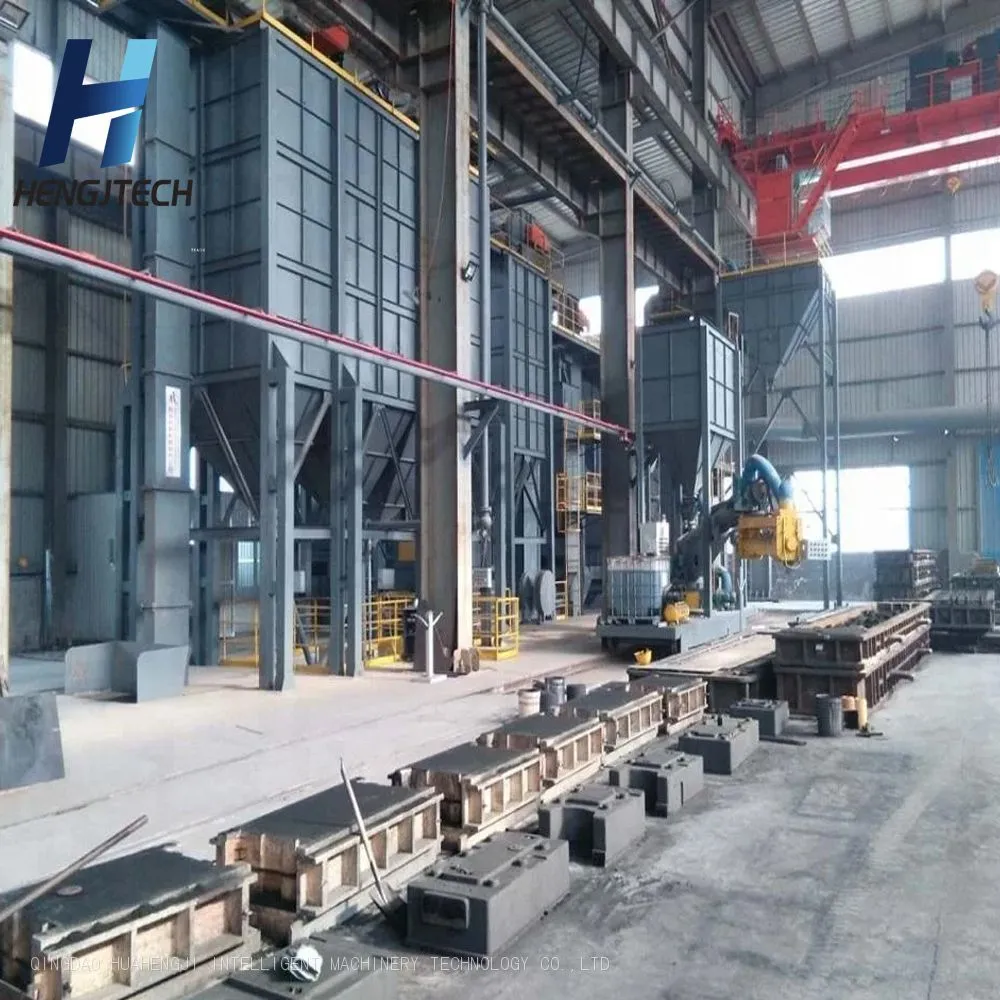

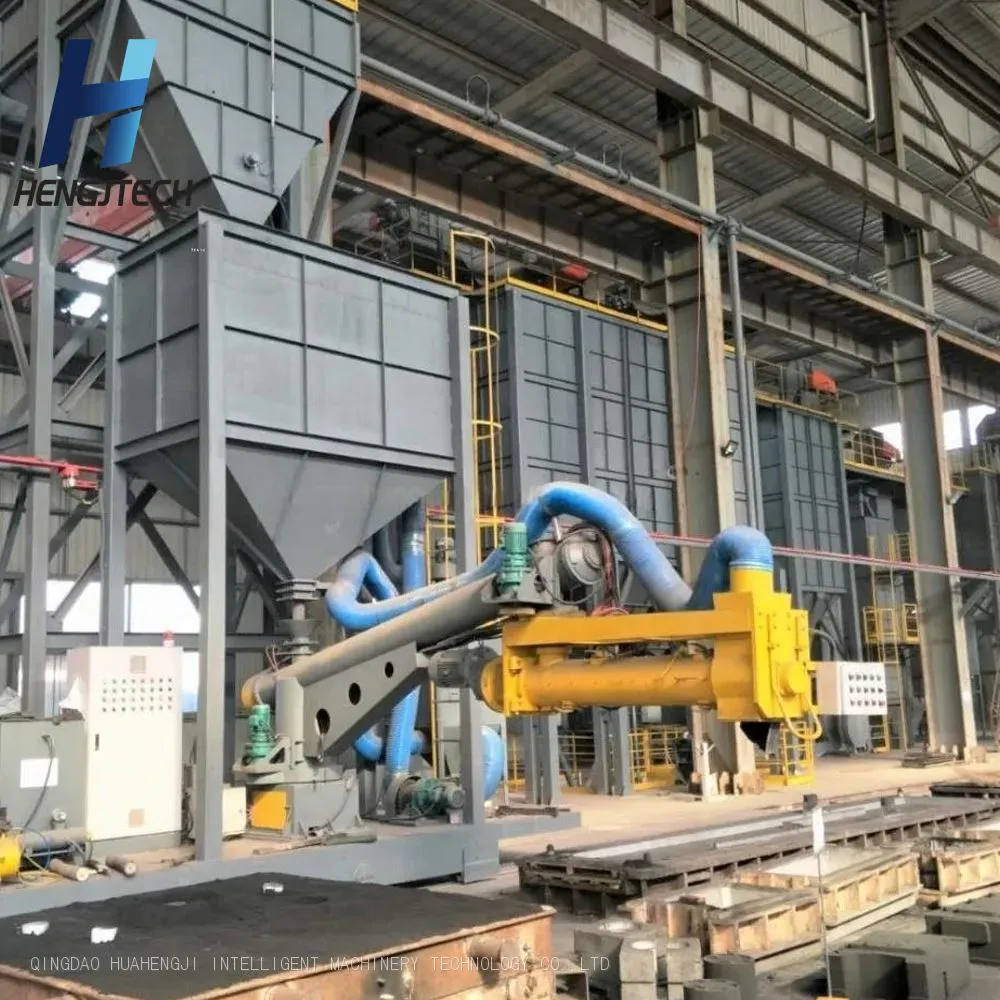

Green/Resin Furan sand production /reclaiming and molding system
Resin sand production /reclaiming and molding system is of low energy consumption, less sand crushing, high regeneration efficiency, less wearing parts, easy maintenance, small occupied area and so on. This machine is a combination of regenerating and
winnowing.
Production Equipment Lists: Foundry Sand Mixer,Fine Sieve,Sand Bank,Belt Conveyor,Bucket Elevator, Vibration conveyor, Screw Conveyor,cast hanging conveyor, magnetic separation machine, winding machine, hexagonal mesh, sand library, two-way cooling bed, hoisting machine, belt machine, boiling reclaimer, hoist, discharger, belt machine, sand library, the disc feeder, belt conveyor, hoist, exhaust ventilator, accessories, two-way feeder, screw feeder, accessories electronic scale sand mixing machine, belt machine, the disc feeder....

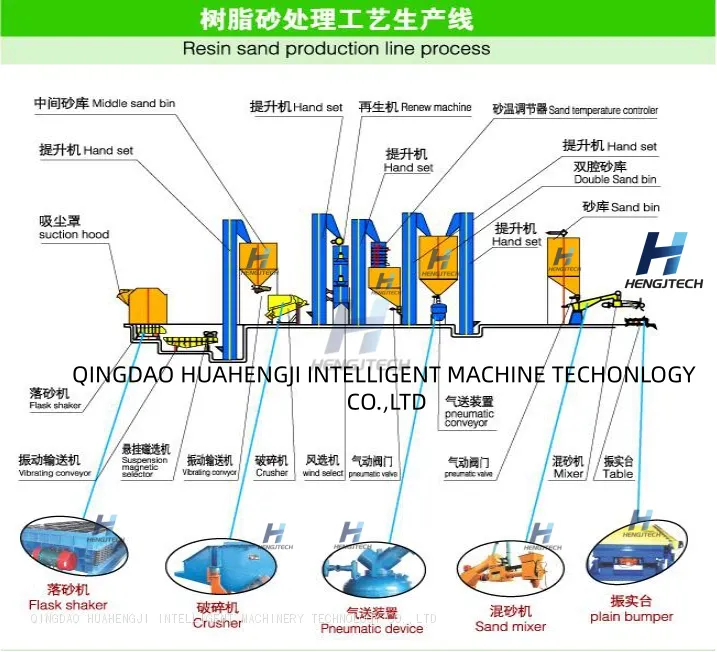

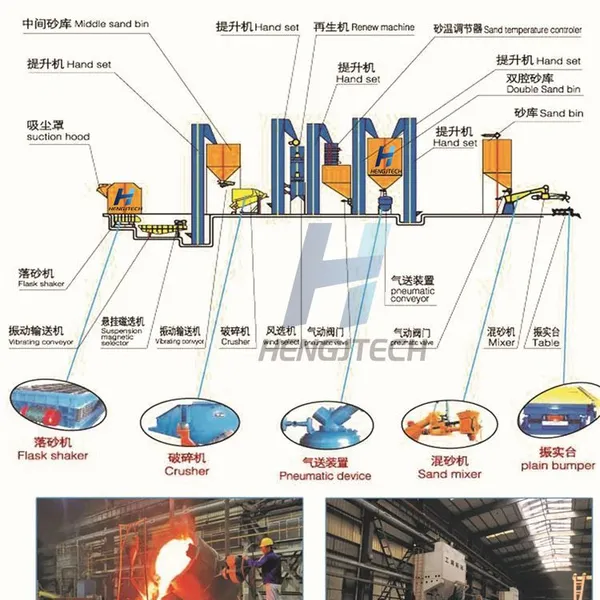

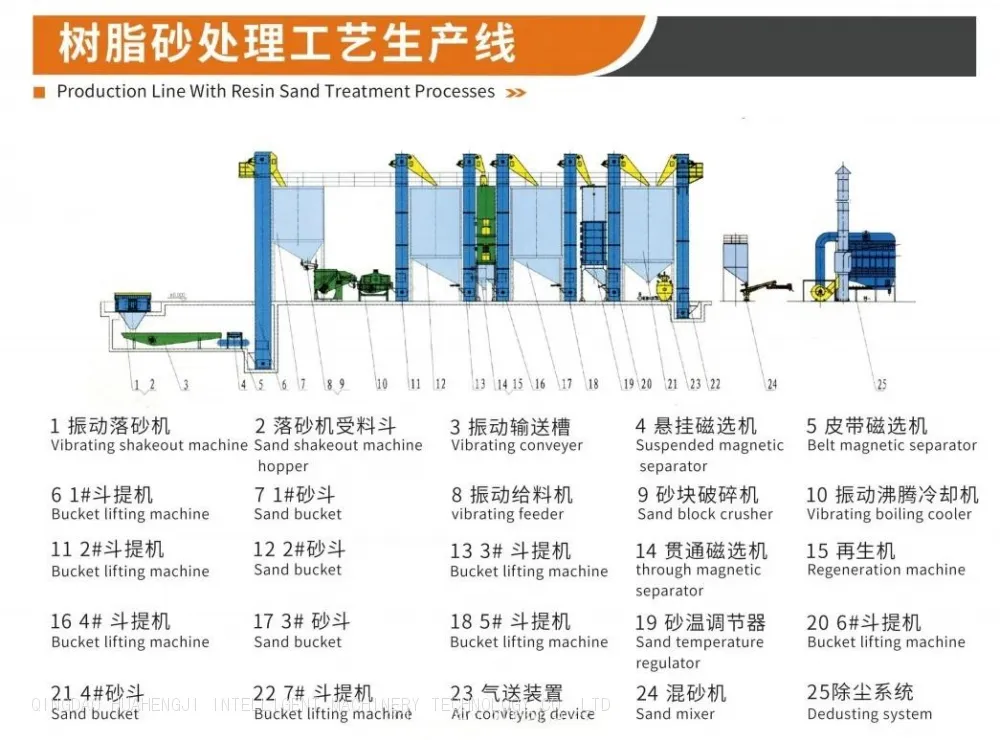

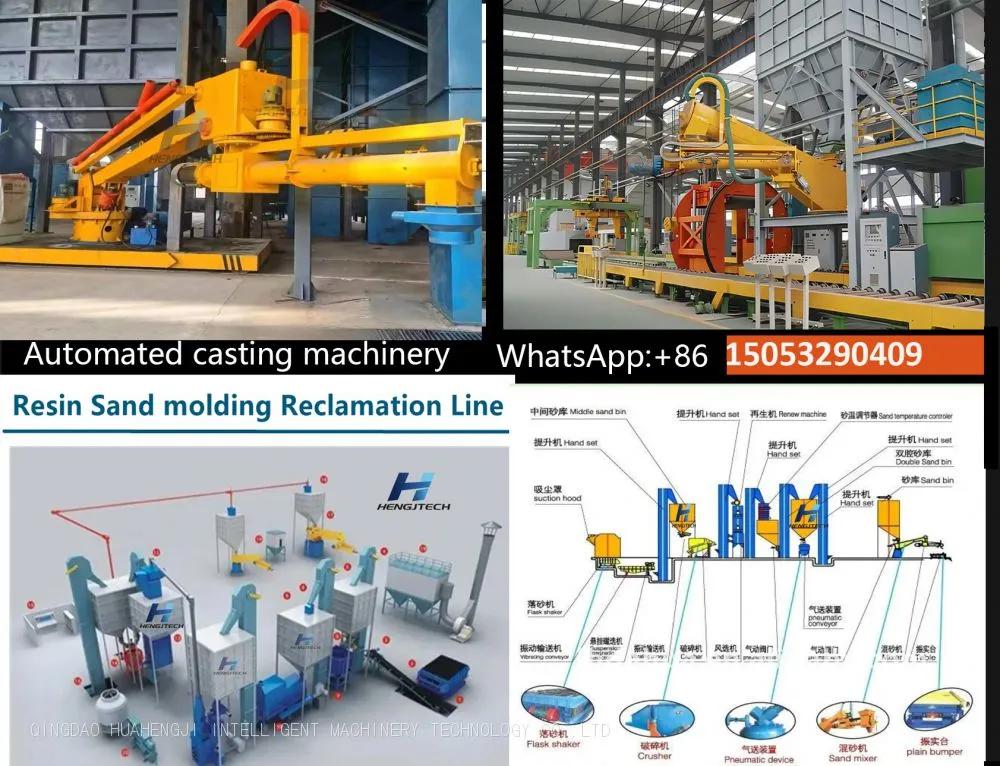

Components of resin sand reclaiming and molding system
1.shakout machine
2.vibrating conveyor
3.elevator
4.sand bin
5.vibrating feeder
6.vibrating crusher
7.magnetic separator
8.reclaimer
9.sand boilig and cooling bed

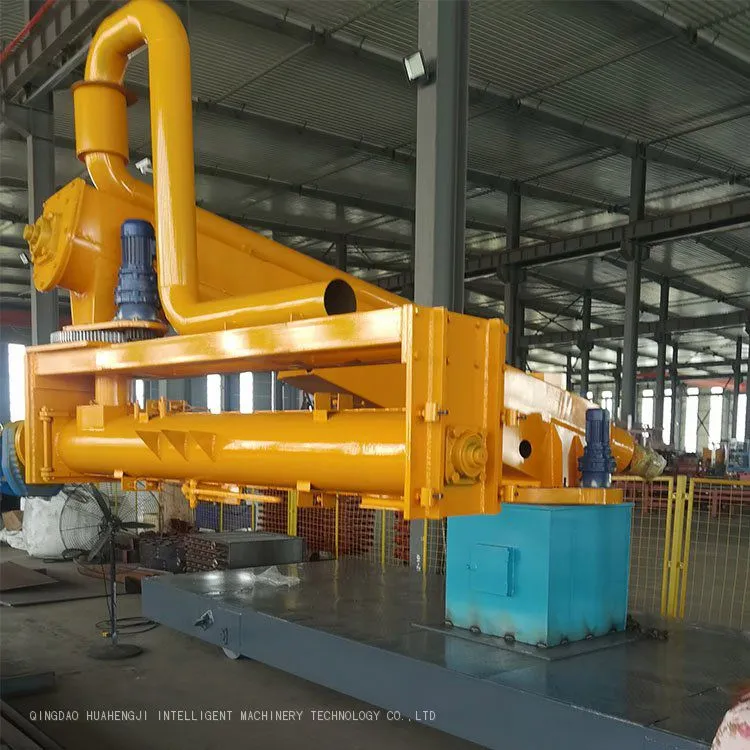

10.sand mixer
We can give the design scheme drawing according to customer's requests . We will determine which equipments to use based on the specific situation of the factory and your requirements, and send a schematic diagram for confirmation.
Feature:
Resin sand casting plays a role of barrier and isolation between the casting and the mold to achieve the purpose of anti-sticking sand, effectively prevent the oxidation of high-temperature liquid metal, so that there is no chemical reaction in the contact process between the mold and high-temperature liquid metal, and can absorb and digest nitrogen, sulfur, carbon and other gases.
1.Optimized secondary fuel consumption(LPG) depending on the properties of resin
2.Low Operating Cost
3.Fully automatic plant with instrumentation for process control
4.safe and reliable operation
5.smooth and consistent operation regardless of variations in resin content
6.Tailor made capacities available
Composition of resin sand casting production line
. Shattering system: It mainly includes shakeout machine, vibrating conveyor, magnetic separator,
1# bucket elevator, 1# sand bucket loading level.
2. Crushing system: It mainly includes 1# sand hopper lowering level, vibrating feeder, crusher, cooling separator, elevator, and sand silo loading level.
3. Regeneration system: It mainly includes the material level of the sand silo, the magnetic separator, the regenerator, the air separator, the bucket elevator, and the material level of the sand silo.
4. Sand conditioning system: mainly includes sand temperature regulator, cooling tower fan, circulating water pump, bucket elevator, temperature controller, etc.
5. Air delivery system: mainly including sand storage gate, tank gate, sending valve, supercharger, globe valve, etc.

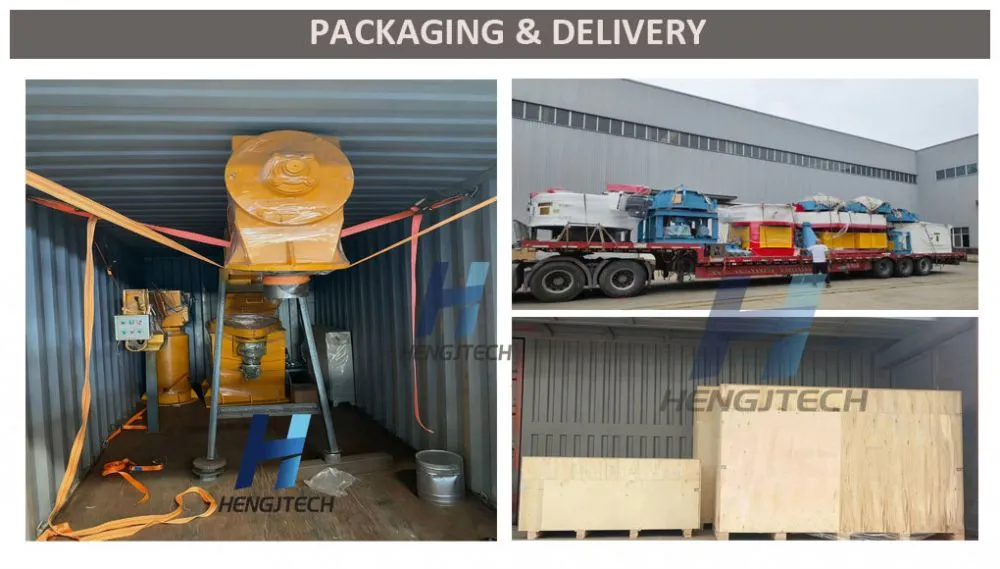

Packing & Delivery
PACKAGING & DELIVERY:
1. Trucks Transport
2.Plywooden Carbon Box Packaing into Container
3.Container Safety transport
OTHER MACHINES
QINGDAO HUAHENGJI INTELLIGENT MACHINERY TECHONOLOGY CO.,LTD
Qingdao Huahengji Intelligent Machinery Technology Co, Ltd. is located in the beautiful national new area of Qingdao West Coast New Area, set research and development, production and sales and after-sales entity units, the company mainly produces Sand Treatment equipment,Sand Reclamation Equipment including Clay sand casting production line,resin sand casting production line,coated sand regenaration casting production line,lost foam casting production line,foundry sand mixer,sand cooler,cooling bed,bucket elevator,seperator,conveyor,dust collector,Vibrating Screen,Sand Shake Vibration Machine,Mechanical vibrating table,shot blasting machine ,Sand Temperature Modulator,Furnace ..etc and other casting Foundry machinery.
The company provides comprehensive services including scheme design, equipment production, installation, and after-sales service.
As one of the leading foundry machinery manufacturers in the early development, we have a complete range of various models of equipment, widely used in surface treatment, casting, shipbuilding, bridge engineering, automobile , and other fields, At the same time, in order to meet the market demand, we can also customize foundry equipment according to the specific requirements of customers, to ensure that every customer can obtain satisfactory products and services.
Our company always adhere to the principle of "quality first, service forever, to meet customer needs as the core. We have first-class production technology and equipment, committed to continuous research and innovation, in strict accordance with relevant standards, industry standards and enterprise production standards to ensure the highest product quality and production efficiency. All equipment is also thoroughly checked and evaluated for quality to ensure complete customer satisfaction.
The company undertakes the following projects:
1.20-200t/h turnkey engineering and single machine supporting equipment of mechanized clay sand treatment production line.
2. Turn-key project of cold-hardened resin sand mechanized production line with annual production of 1000-20000t castings.
3. Turn-key project of thermal coated sand production line with annual output of 1000-6000t.
4. Provide turnkey projects for cold and hot core box sand, coated sand and thermal regeneration production line.
5. Provide "V" vacuum negative pressure moulding technology and equipment.
6. Production of various environmental protection dust removal equipment and casting shot blasting cleaning equipment.
If you want to learn more, please click on contact us .
FAQ
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment
2. Warranty time
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
Any requiremnet ,please contact: Rabeca qdhhjmachine@163.com
