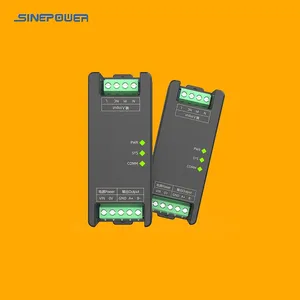

Power Measurement Module Power Parameter Acquisition Module/ Energy Data Collector‌

Product Spotlights

Single-phase acquisition,
16-bit acquisition resolution,
0.1% measurement accuracy

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Energy Meter

Certification:

Usage:

Multi-Functional Energy Meter, Standard Electric Energy Meter, Other, Voltage/ curreent/ power monitoring

Shenzhen Sinepower Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

3 days

Type Energy Meter

Certification CE

Usage Multi-Functional Energy Meter, Standard Electric Energy Meter, Other, Voltage/ curreent/ power monitoring

Theory Induction Meter

Installation Direct Connected

Electric Equipment Single-phase

Power Meter Connection Terminal

Measured Signal Other, AC voltage

Customized Non-Customized

Display Digital

Trademark Sinepower

Origin Shenzhen

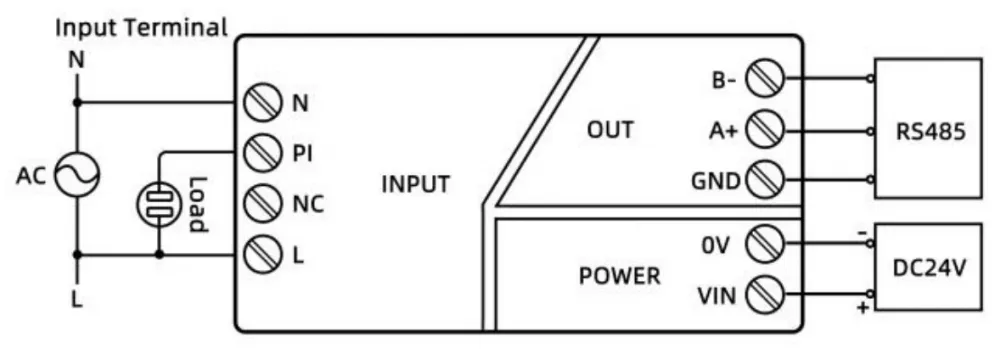

Wiring

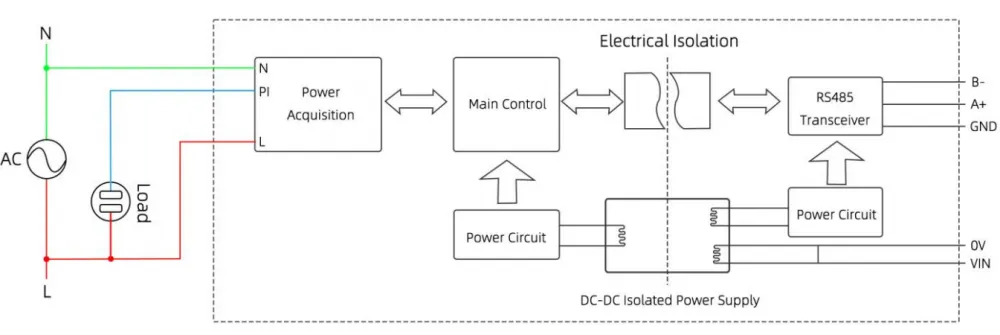

Theory

Technical parameter

Basic Parameters
Power Supply	DC12~36V(DC24V recommended)
Power Consumption
Temperature Drift	≤200ppm/℃
Sampling Frequency	≤3Hz
Isolation Voltage	3000VDC
Power Protection	Reverse connection voltage
Dielectric Strength	1500 VAC / 1 minute (Power, Input, Output)
Insulation Resistance	≥100M Ω (power, input, output)
EMC Compatibility	Complies with GB/T18268.1 (IEC61326-1)
Applicable Field Devices	Configuration software, PLCs, touch screens, computers, and other devices supporting the MODBUS- RTU protocol
Input Terminal
Acquisition Channels:	2 Channels
Input Signals	One AC voltage, one load current
Input Range	Input Range Parameters
Input Frequency	45Hz to 65Hz
Output Terminal
Output Signal	RS-485 communication signal
Communication Protocol	Standard MODBUS-RTU protocol
Communication Distance	1200m (typical)
Voltage Accuracy
Current Accuracy
Active Power Accuracy
Apparent Power Accuracy
Frequency Accuracy	±0.1Hz
Environmental Conditions
Operating Temperature	-40℃~+80℃
Storage Temperature	-40℃~+85℃
Relative Humidity	10%～90%RH (non-condensing)
Atmospheric Pressure	80kPa～106kPa

Terminal Mark	Function Description
VIN	Power supply positive terminal, DC12-36V input
0V	Power supply negative terminal
GND	RS-485 communication signal ground
A+	RS-485 communication signal positive terminal
B-	RS-485 communication signal negative terminal

N	Input signal acquisition, single-phase input (N line)
PI	Load current acquisition terminal
NC	No contact
L	Input signal acquisition, single-phase input (L line)

Indicator Mark	Function Description
PWR	Power indicator
SYS	Input signal status indicator, flashes when no signal is present
COMM	RS485 communication indicator, flashes when data is being sent
