Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 2 Wire Ethernet Bridge SDSL IP Multiplexer

2 Wire Ethernet Bridge SDSL IP Multiplexer

Name: 2 Wire Ethernet Bridge SDSL IP Multiplexer
Brand: Baudcom
SKU: 100390583

2 Wire Ethernet Bridge SDSL IP Multiplexer thumbnail-1

2 Wire Ethernet Bridge SDSL IP Multiplexer thumbnail-2

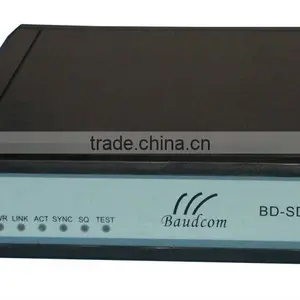

2 Wire Ethernet Bridge SDSL IP Multiplexer thumbnail-3

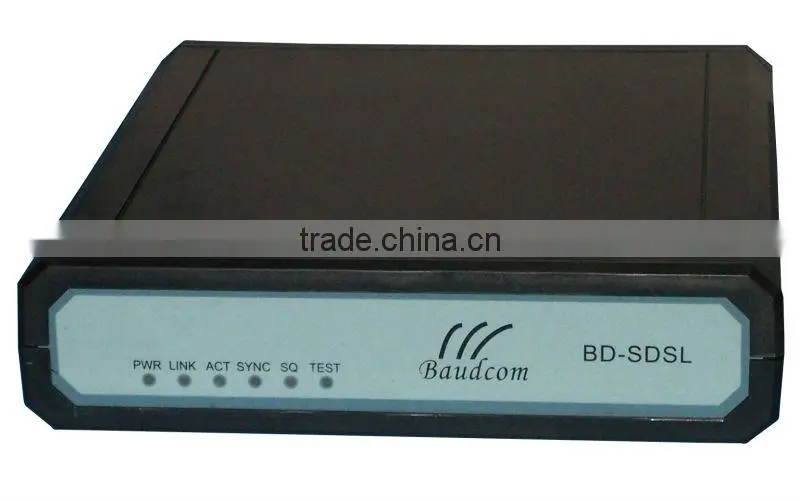

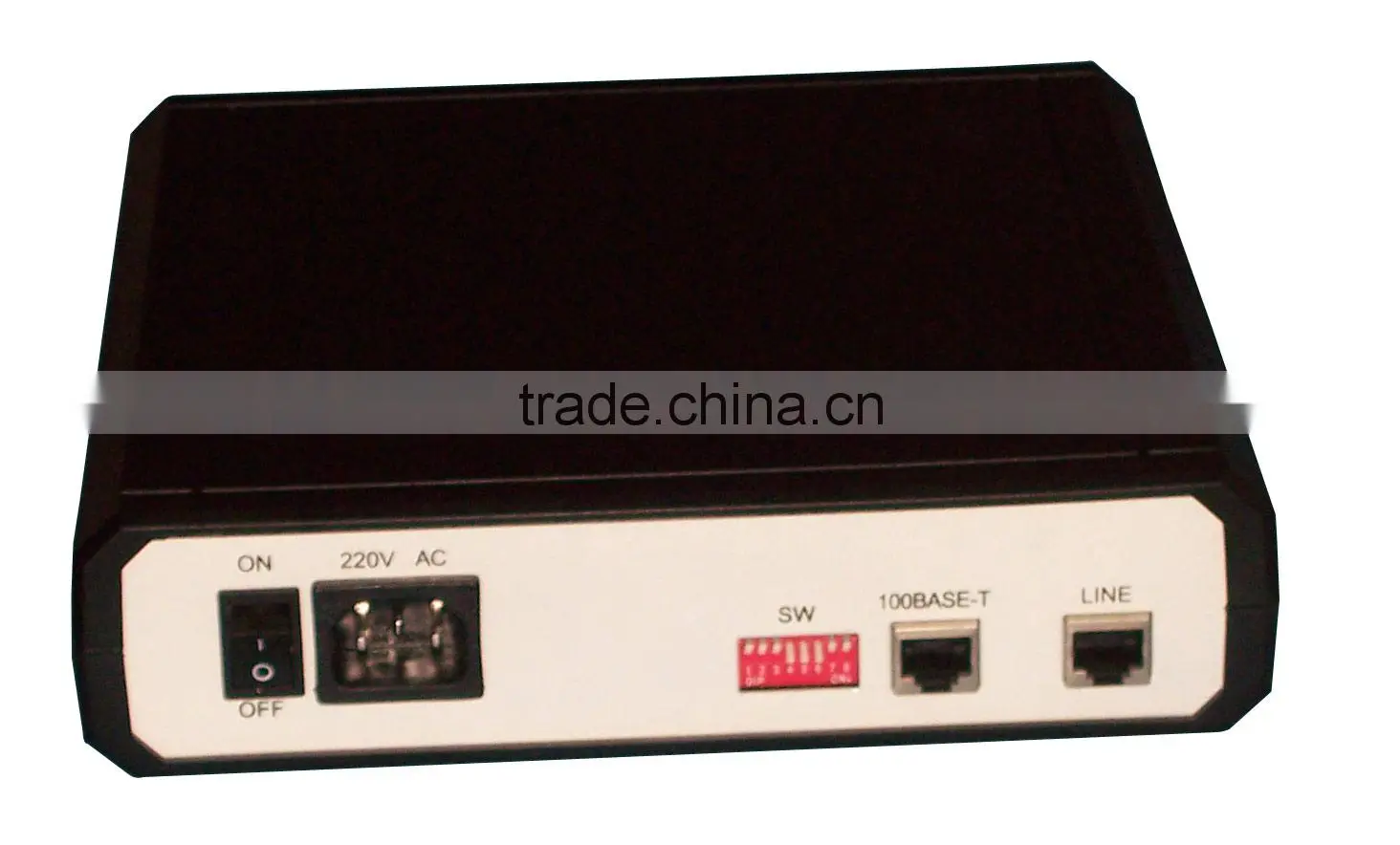

2 Wire Ethernet Bridge SDSL IP Multiplexer photo-1

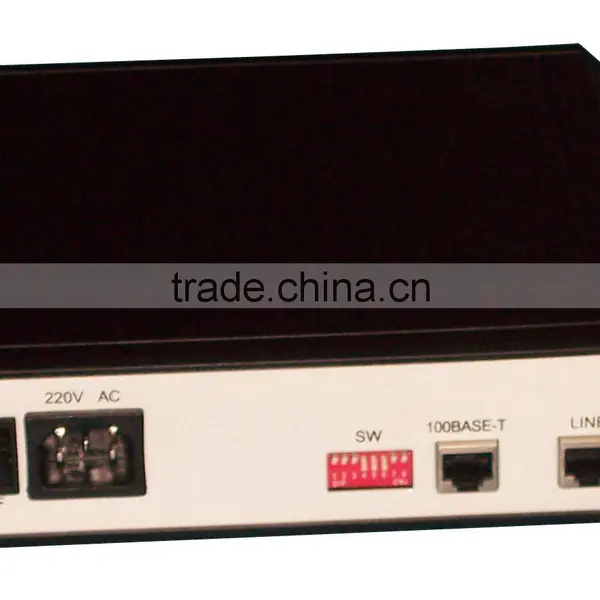

2 Wire Ethernet Bridge SDSL IP Multiplexer photo-2

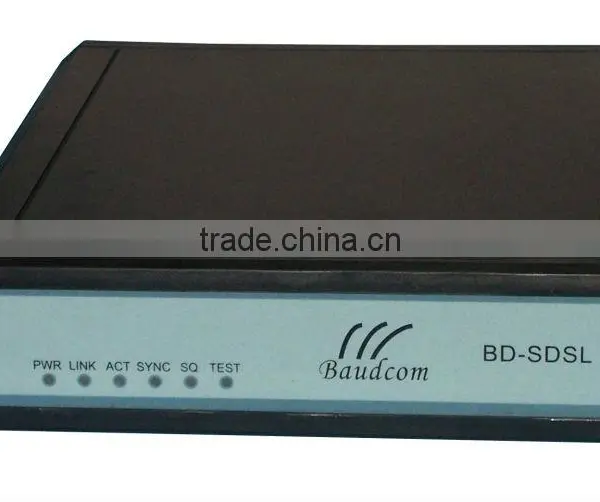

2 Wire Ethernet Bridge SDSL IP Multiplexer photo-3

US$ 200 - 256 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom

Model Number:

BD-SDSL

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

from Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom

Model Number BD-SDSL

2 Wire Ethernet Bridge SDSL IP Multiplexer

Overview

The 2 Wire Ethernet Bridge SDSL IP Multiplexer is ASIC-based 2-wire 2.3Mbps Ethernet bridge SDSL modem. It uses SDSL(multi-rates digital end-user line) technology so that the data rate between two joint LANs can reach 2320 Kbps, the distance can be reached 3.29km in 24AWG(0.5mm) communication line and 2.51km in 26AWG(0.4mm) communication line. The 2 Wire SDSL Modem Ethernet Switch can connect two LANs through a pair of twisted-pair to extend distance of LANs.

Feature

Based on self-copyright IC.

Ethernet port 10/100M half/full duplex self adaptable, supporting VLAN.

RJ45 interface supports AUTO-MDIX.

The distance can be reached 3.29km in 24AWG(0.5mm) communication line and 2.51km in 26AWG(0.4mm) communication line.

Provide LAN auto reset function, run more stably.

Has the function of pseudo-random code testing, convenient for opening of the circuit, and can be used as an error code instrument.

Can store a maximum of 1024 MAC subnet address

With abundant presentation function of Ethernet data, can detect real-time data communication status

Specification

WAN Interface	Data Rate	256kbps; 384kbps; 1024kbps
		1280kbps; 1536kbps
		2048kbps; 2320kbps
	Transmission mode	Synchronous full duplex; HDLC
	Line interface	impedance 135ohm, physical
	Line interface	Interface RJ45, with pin 4 and pin 5(middle 2 lines)
LAN Interface	Rate	10/100M, full/duplex auto-negotiation
	Protocol	Support IEEE 802.3,IEEE 802.1Q (VLAN)
	MAC Address Entiries	1024 Entries
	Physical Interface	RJ45, support AUTO-MDIX
Power Supply	Working voltage range wide, good
	anti-disturb and Isolation, work stable
	Option I	DC-48V,range DC-36V~DC-72C
	Option II	AC220V,range AC165V~AC240V
	Power Consumption	<=3 Watts
Environment Condition	Operating Temperature	0C~+50 C
	Storage Temperature	-20 C~+70 C
	Relative Humidity	95% (uncondensed)

Application

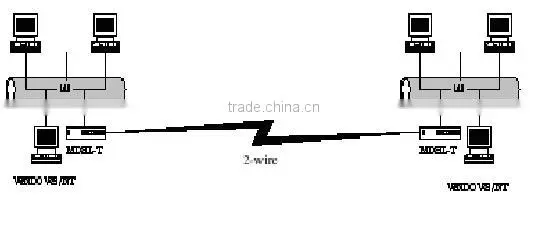

Application Diagram:

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

6.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging&Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certification

Factory Production

Product Testing

After Sales Services

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
