Product: single fiber 10 100 1000M Multirate Fiber converter
The Gigabit Ethernet Fiber Multimode to Single mode Media Converter is available in all distance and all fiber types and kinds rates 10/100/1000M,155M/622M/STM-1/STM-4
- supporting single fiber by double directions transmission;
- Comply with any agreement between different rates.
- Fulfilling medium convert between single mode fiber and multi-mode fiber or extending fiber transmission distance,
- Supporting wavelength be 850nm,1310nm or 1550nm.
- Supporting medium convert between 100M fast speed Ethernet, 1000M Ethernet, 155M~1.25G ATM, SDH or extending transmission distance.
- The longest transmission distance of multi-mode is 2KM; The longest transmission distance of single-mode is 120KM.
- As optical receiving and sending model with good optical character, electrical character, date transmits steady, and it can work for long time..
- The transmission of optical mode 155M is above 30db and optical mode 1.25G is above 25db.
Optical interface: SC,FC or ST (optional).
optical fiber type:
Multimode : 50/125um, 62.5/125um,100/140um, wavelength:850 or 1310nm
Single-mode: 8.3/125um,8.7/125um,9/125um,10/125um,wavelength :1310 or 1550nm
Transmission distance: multimode with 2KM, single mode up to 120KM.
Transmission rate: 10/100Mbps/155Mbps/622 Mbps/1000 Mbps/1.25Gbps/2.5Gbps
Indicator light: it indicates power supply's condition , also suggests single-fiber and multi-fiber link condition.
Power supply: 1)input 100v~260VAC 2)input 36V-72VDC , output 3W. .
Power:<3W.
Size: 150mm(L) X200mm(w)x30mm(H) .
Work temperature :0~50 degree .
Storage temperature: -20~80 degree .
Humidy:5%~90% without condensing

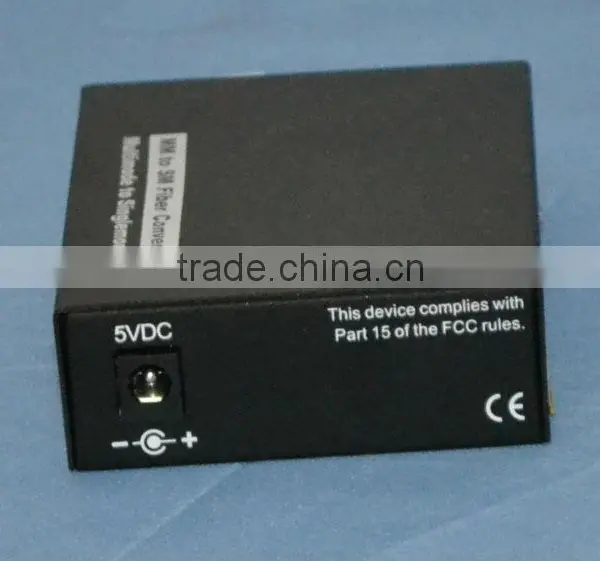

model 10/100/1000M Multirate Fiber Mode converter picture:
1.How can i get a sample for Gigabit Ethernet Fiber Multimode to Single mode Media Converter ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-MS-FE/20 | 155M multimode 2km to single mode 20km converter, AC220V |
| BD-MS-FE/40 | 155M multimode 2km to single mode 40km converter, AC220V |
| BD-MS-FE/60 | 155M multimode 2km to single mode 60km converter, AC220V |
| BD-MS-FE/80 | 155M multimode 2km to single mode 80km converter, AC220V |
| BD-MS-FE/120 | 155M multimode 2km to single mode 120km converter, AC220V |
| BD-MS-GE/20 | 1.25G multimode 2km to single mode 20km converter, AC220V |
| BD-MS-GE/40 | 1.25G multimode 2km to single mode 40km converter, AC220V |
| BD-MS-GE/60 | 1.25G multimode 2km to single mode 60km converter, AC220V |
| BD-MS-GE/80 | 1.25G multimode 2km to single mode 80km converter, AC220V |
| BD-MS-GE/120 | 1.25G multimode 2km to single mode 120km converter, AC220V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
