Home > Manufacturing & Processing Machinery > Machine Tools > Machine Tools Accessories > NC0620D Servo CNC Lathes for Turning and Milling

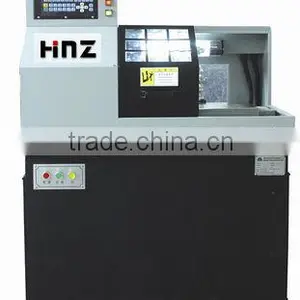

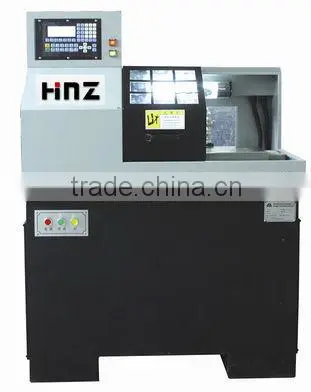

NC0620D Servo CNC Lathes for Turning and Milling

US$ 8,900 - 9,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HNZ

Model Number:

NC0620D

Contact Supplier Request Quote Chat Now

Taian Haina Spindle Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HNZ

Model Number NC0620D

Specifications

Rated Frequency :50 Hz
Maximum input power:3 KW
Spindle motor power 2.2KW
Spindle speed range 50~4000rpm
Encoder REP

Product Description

Item	Specification	Parameter
1	Controlled and linkage axis numbers	2 axes (X, Z axis)
2	Maximum length of processing parts	120mm
3	Minimum setting unit	0. 001mm
4	Smallest movement unit (pulse equivalent)	X axis:0.0005mm Z axis:0. 001mm
5	Max Programming size	+9999.999 mm
6	Cutting speed	1~ 4000 mm/min
7	Processing program capacity	512KB
8	LCD monitors	128 × 64 dot matrix LCD module (Chinese display)
9	Controlable tool number	8
10	Rated voltage	Three phase A.C.380V
11	Rated Frequency	50 Hz
12	Maximum input power	3 KW
13	X axis Maximum travel	110 mm (Volume diameter 220mm )
14	Z axis Maximum travel	190mm
15	Maximum diameter of processing the bar	20mm
16	Servo motor (maximum no load speed)	10000 mm/min(X,Z axis)
17	Spindle motor power	2.2KW
18	Spindle speed range	50~4000rpm/min(RPM)
19	Input compressed air pressure	0.4~0.6MPa
20	Control System	CNC Mingtai Control System
21	Motor	Panasonic servo motor(0.4KW)
22	Screw	X axis 1404×294mm, Z axis 1604×360mm
23	Guide rail	Taiwan HIWIN Linear Guides
23	Inverter	INVT
24	Encoder	REP
25	Machine Net Weight(kg)	About 1000

Characteristic:

1 nvenient operation, high precision machining

2 the operating system simple , reliable performance, and the system can be upgrade and optimization in accordance with customer specific circumstances

3 Encoder control speed

4 threaded processing function and can achieve a clamping multiple parts of processing which can achieve linear, circular arc,taper thread, complex parts processing.

Application:

aerospace,communications,refrigeration,home appliances,electronic,optical,electronic,watches and other industries,the shape of complex single-piece and shaft parts of the mass production.
