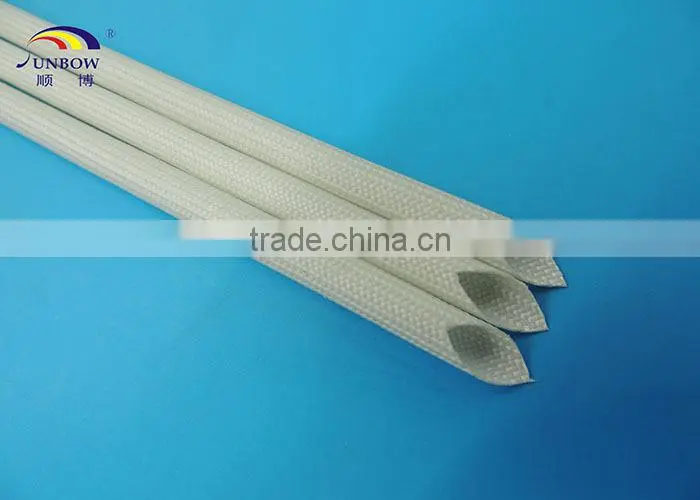

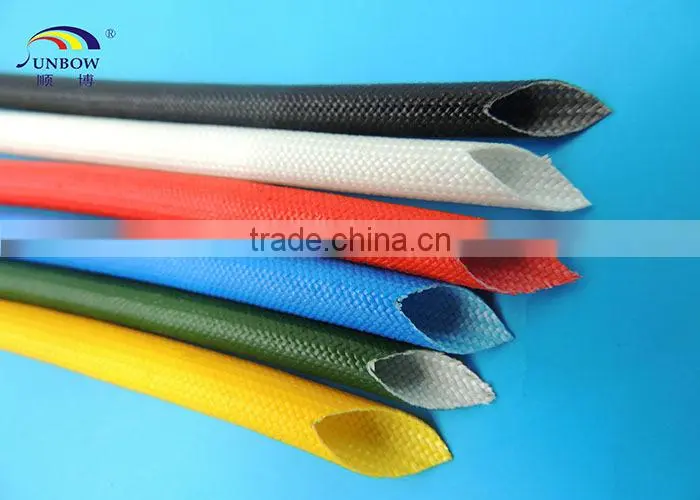

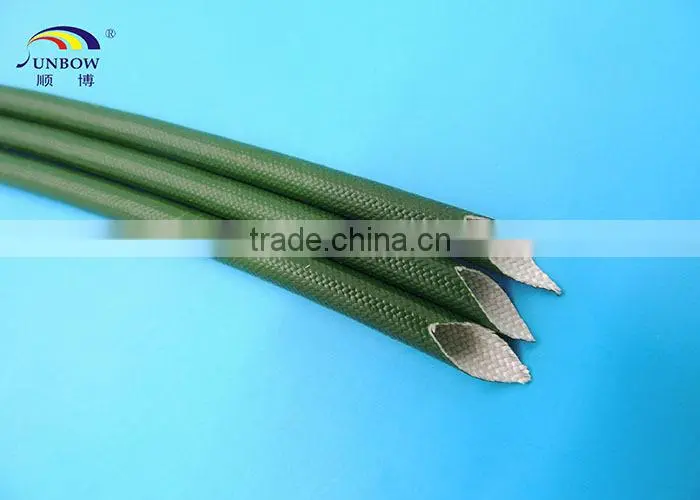

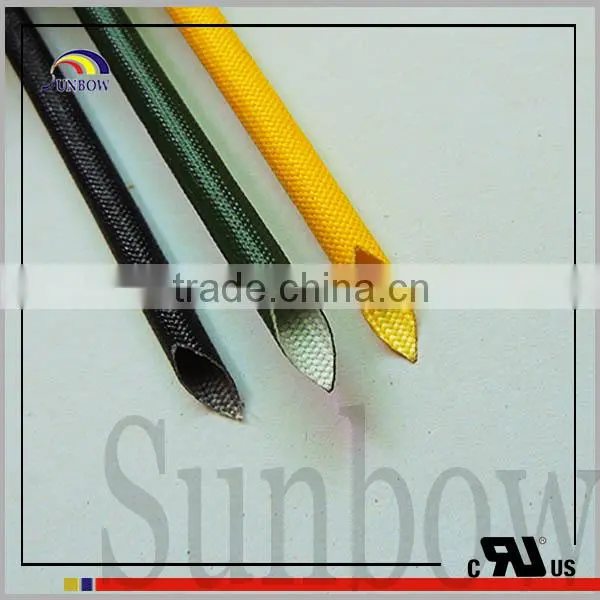

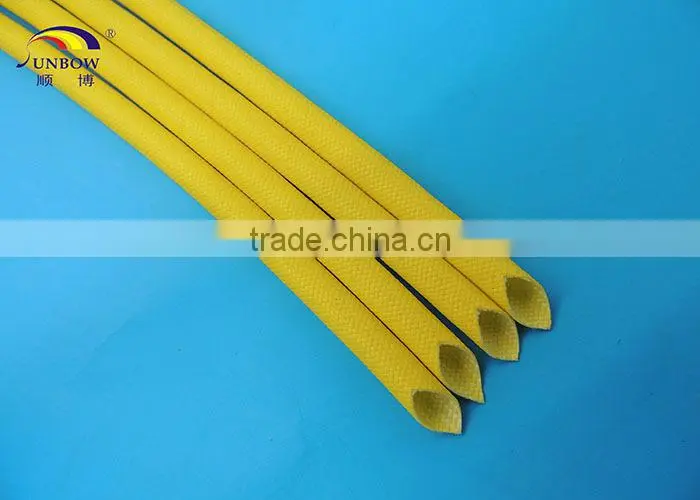

VW-1 UL 1441 Flame Retardant Silicone Coated Sleeving
1. Model
SB-SGS-15
2. Working Temperature
200°c
3. Structure
VW-1 UL 1441 Flame Retardant Silicone Coated Sleeving is braided with non-alkali fiberglass and coated with silicone resin treated in high temperature.
4. Characteristics
1) insulation
2) good dielectric strength
3) flexibility
4) flame retardant property
5) high temperature resistance
6) VW-1 flame retardant rating
5. Specification
ITEM |
PERFORMANCE) |
NOTE |
|
|
DIELECTRIC BREAKDOWN VOLTAGE KV AC |
MINIMUM AVERAGE |
≥1.5 |
BEFORE AGED
|
MINIMUM SINGLE POINT |
≥1.0 |
||
MINIMUM AVERAGE |
≥1.0 |
6 HRS* 245±5℃ 245±5℃ 6HRS AGING |
|
MINIMUM SINGLE POINT |
≥0.7 |
||
THERMAL ENDURANCE |
NO INDICATION OF CRACK |
OK |
6 HRS* 245±5℃ 245±5℃ 6HRS AGING |
FIRE RESISTANCE |
VW-1 |
OK |
UL 1441 |
6. Dimension
INSIDE DIAMETER |
WALL THICKNESS MINIMUM (mm) |
STANDARD PACKAGE (m/roll) |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.30 |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.30 |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.30 |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.30 |
200 |
φ2.5 |
+0.3, -0.1 |
≥0.35 |
200 |
φ3.0 |
+0.3, -0.1 |
≥0.35 |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.35 |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.40 |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.40 |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.40 |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.45 |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.45 |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.55 |
100 |
φ10.0 |
+0.3, -0.1 |
≥0.55 |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.65 |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.65 |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.65 |
25 |
7. Application
VW-1 UL 1441 Flame Retardant Silicone Coated Sleeving is widely used in insulated, uninsulated or partially insulated conductors, busbars, leads and electrical components.
