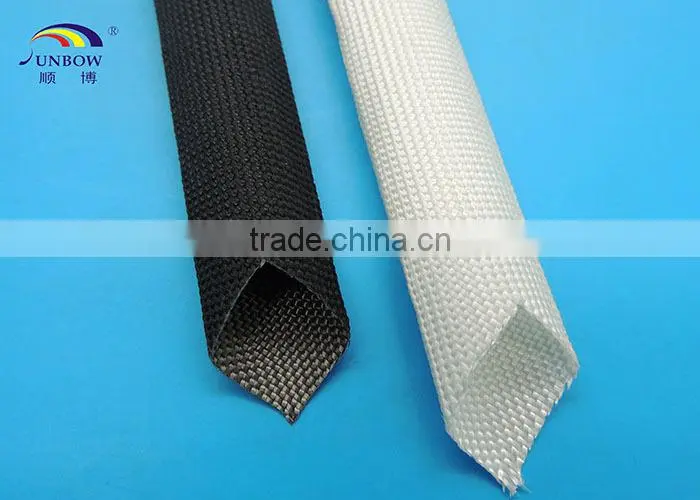

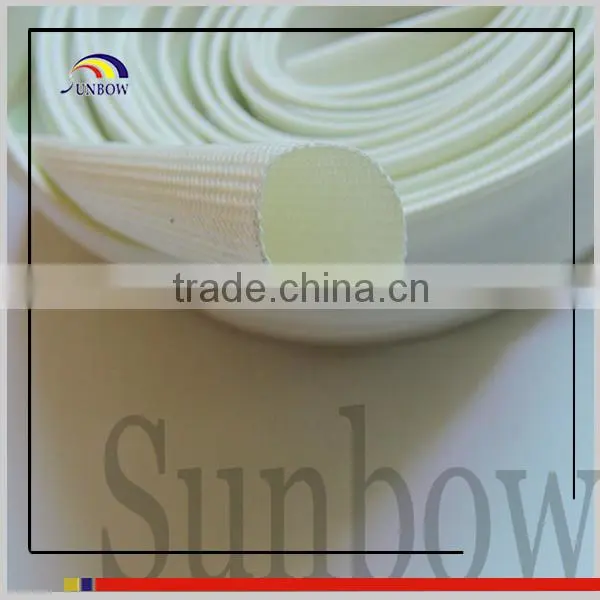

Fiberglass Tubes Insulation Sleeve
1. Model
SB-TGS-1S
2. Working Temperature
400C
3. Structure
Fiberglass Tubes Insulation Sleeve is braided with fiberglass processed in high temperature.
4. Characteristics
1) excellent insulated high temperature resistant property
2) flexibility
3) resistance property
4) working temperature: 400C
5) CUL, RoHS, REACH
5. Specification
ITEM |
PERFORMANCE |
NOTE |
|
|
THERMAL ENDURANCE
|
NO INDICATION OF CRACK |
OK |
6 HRS* 400±5℃ 245±5℃ 6HRS AGING |
FIRE RESISTANCE |
VW-1 |
OK |
UL 1441 |
6. Dimension
INSIDE DIAMETER |
WALL THICKNESS (mm) |
STANDARD PACKAGE m/roll |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ2.5 |
+0.3, -0.1. |
≥0.30mm |
200 |
φ3.0 |
+0.3, -0.1. |
≥0.30mm |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.30mm |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.35mm |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.35mm |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.35mm |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.40mm |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.40mm |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.45mm |
100 |
φ10.0 |
+0.3, -0..1 |
≥0.45mm |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.50mm |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.50mm |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.50mm |
25 |
7. Application
Fiberglass Tubes Insulation Sleeve has excellent insulated and high temperature resistance property, flexibility and resistance property. It is widely used in insulated, uninsulated and partially insulated conductors, busbars, leads and electrical components.

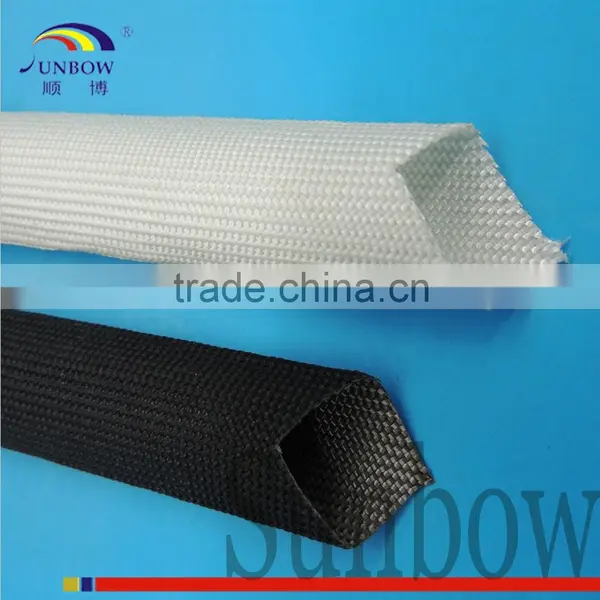

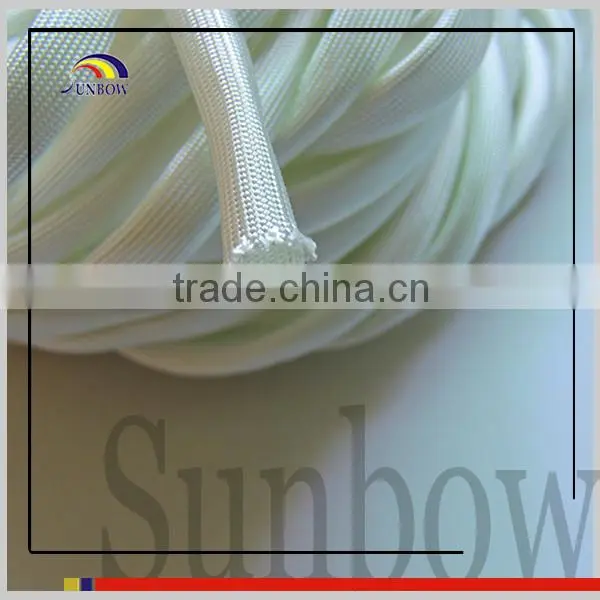

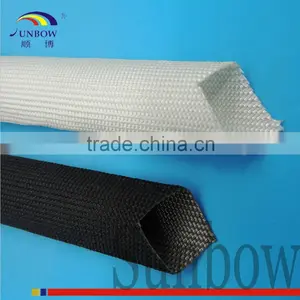

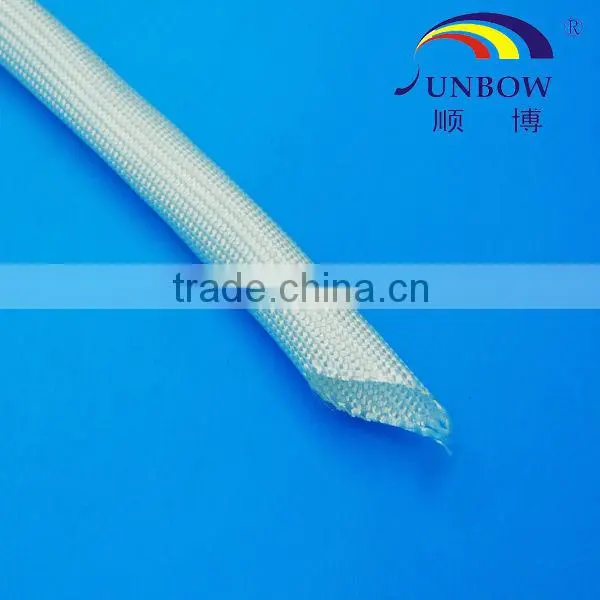

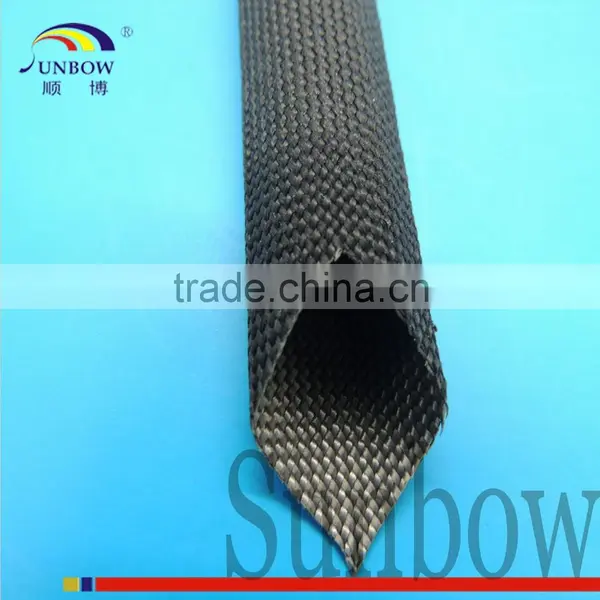

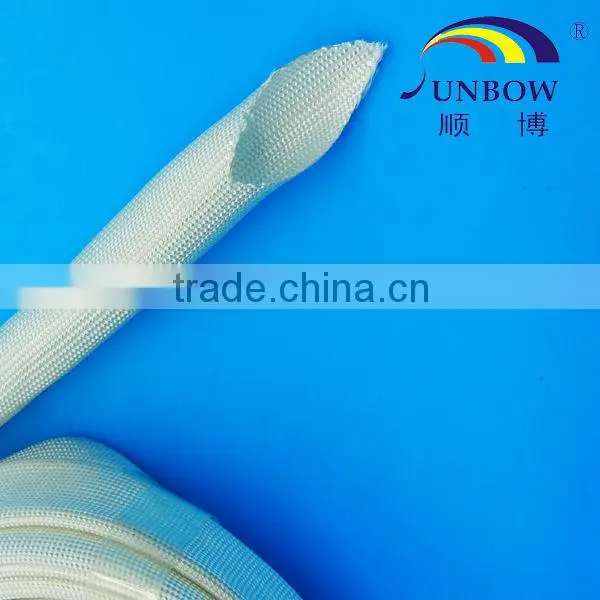

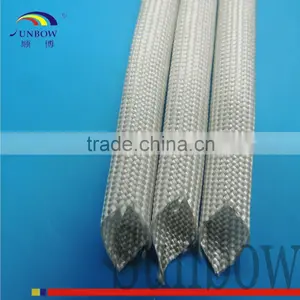

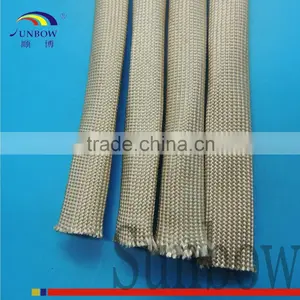

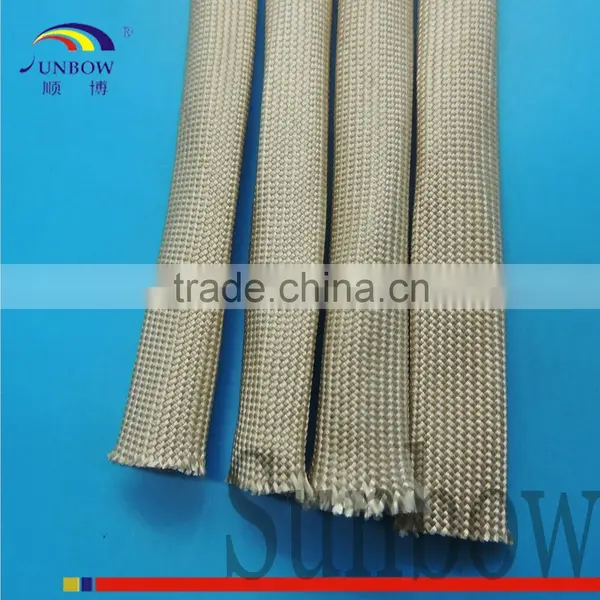

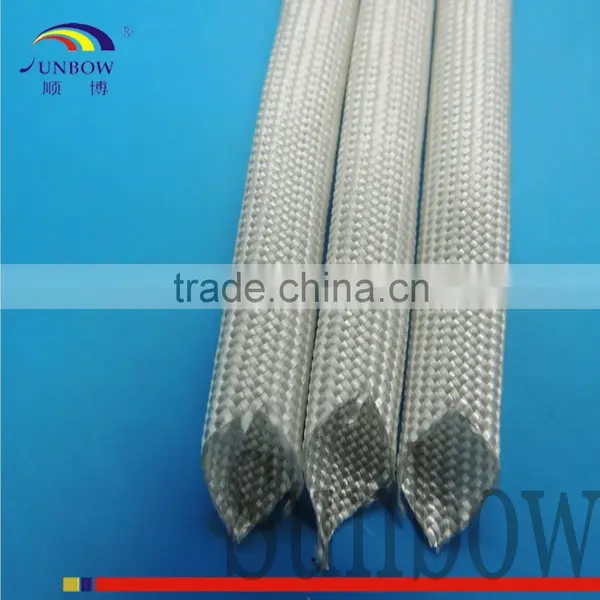

8. More Pictures
9. Our Services
1) 3~5 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
10. About Sunbow
1) 10-year exporting experience
2) 15-year manufacturing experience
3) ISO9001:2008 approved
4) product certifications: CUL (E333178---UZIQ2 VW-1; E333177---UZFT2/8 200C 600V)
5) business partners:
Sanyo, Panasonic & Tiger, SEB, Philips, Black & Decker, Emerson & Conair, HOT, IKEA and Midea
