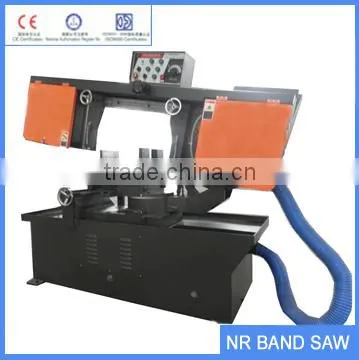

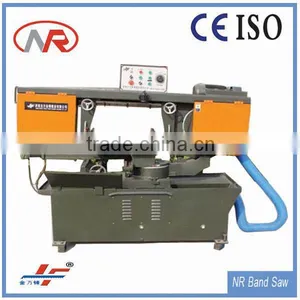

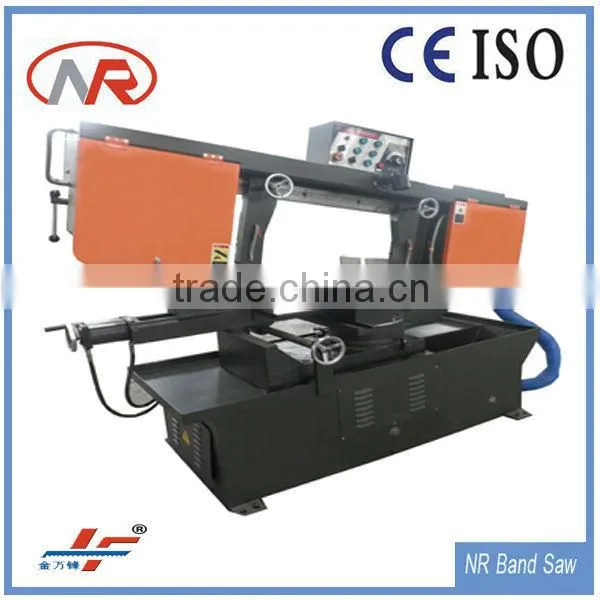

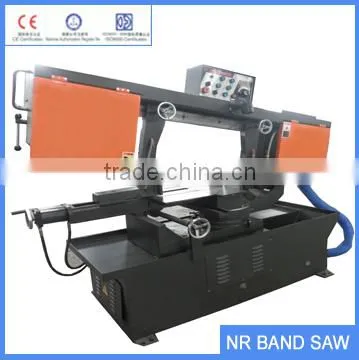

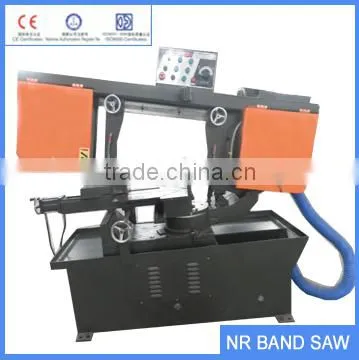

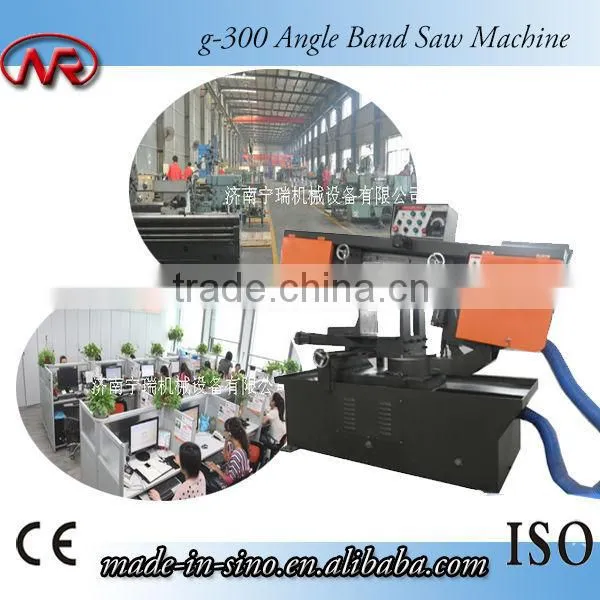

G-330 Angle Electronic Cutting Band Saw Machine
US$ 2,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
NR
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GS400 Semi-automic Cnc Metal Cutting Machine Tool Band SawUS$ 1 - 99,999MOQ: 1 Set -
GS320 Automic NC Saw PLC Control System CNC Bandsaw for SaleNegotiableMOQ: 1 Set
-
G-600 Hydraulic Multi-angle Metal Cutting Band SawUS$ 3,000 - 4,000MOQ: 1 Set
-
The Angel Metal Processing Band Saw G-500 Saw Blade Speed 26/47/58/78m/minUS$ 3,000 - 4,000MOQ: 1 Set
-
G-400 Hydraulic Metal Band Saw MachineUS$ 2,000 - 3,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
NR
Model Number
G-330
Voltage
380V
Rated Power
2.2KW
Dimension(L*W*H)
2100*1450*1300
Weight
850kg
Certification
CE ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

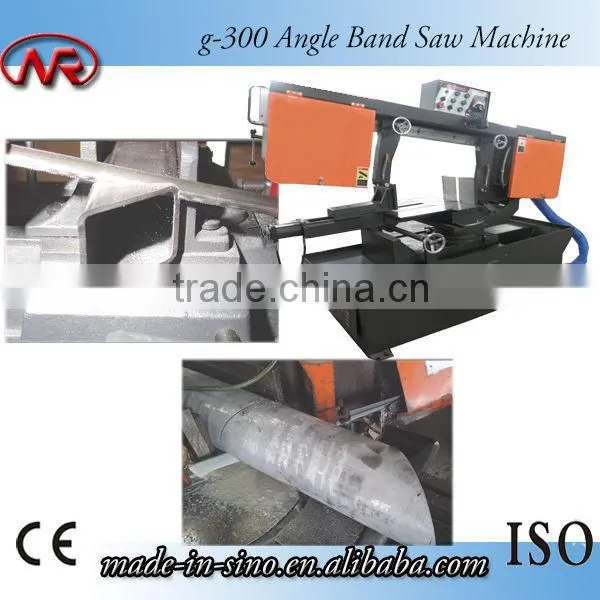

1. Semi automatic cut cycle, miter cutting & straight cutting
2. Scissor typing cutting for higher sharp saw blade
3. Hydraulically controlled single vise clamping system
4. Bi-direction angle swivel -60… ± 45… ~ 90… with scale indicator
5.Steady cutting ,high accuracy
Model number |
G-330 |
|
Cutting Capacity |
At 900 |
Round: 330mm , rectangle: 400*300mm |
At +/-450 |
Round: 280mm , rectangle: 280*250mm |
|
At -600 |
Round: 200mm , rectangle: 220*200mm |
|
Blade Size (Length/Width/Thickness): |
4115×27×0.9mm |
|
Power supply |
380V,50Hz or as per the client’s request |
|
Main Motor Rate |
2.2KW |
|
Oil Pump motor rate |
0.42KW |
|
Coolant Pump rate |
0.04KW |
|
Blade speed(m/min): |
40/60/80,Inverter |
|
Maximum Clamp Opening: |
350 mm |
|
Shipping dimensions: |
2100X1450X1300MM |
|
cutting

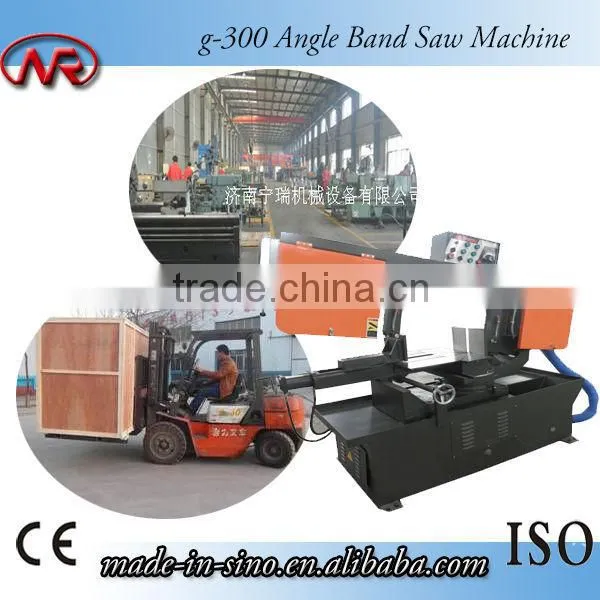

Packaging & Shipping
Company Information
How to contact us
Contact: Miss. Lisa Wang
Tel/Fax:(+86)531-88973496
Mobile/Whatsapp:(+86)150 9887 6392
Skype: sinomachinesteven
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
Below 1,000 square meters
Total Employees
101 - 200 People
