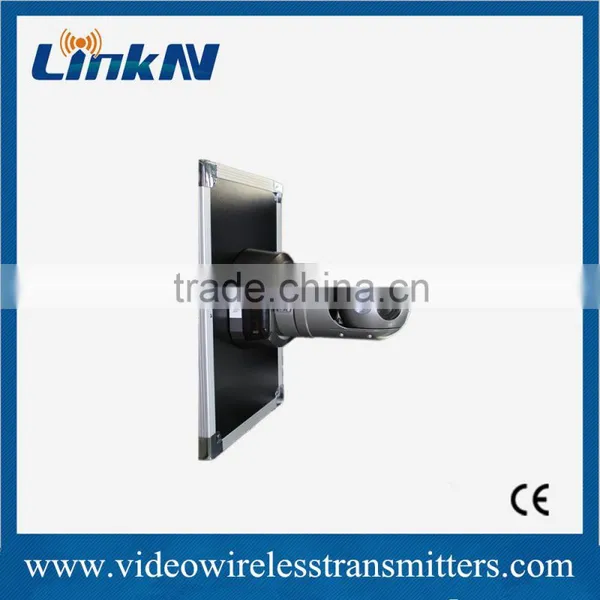

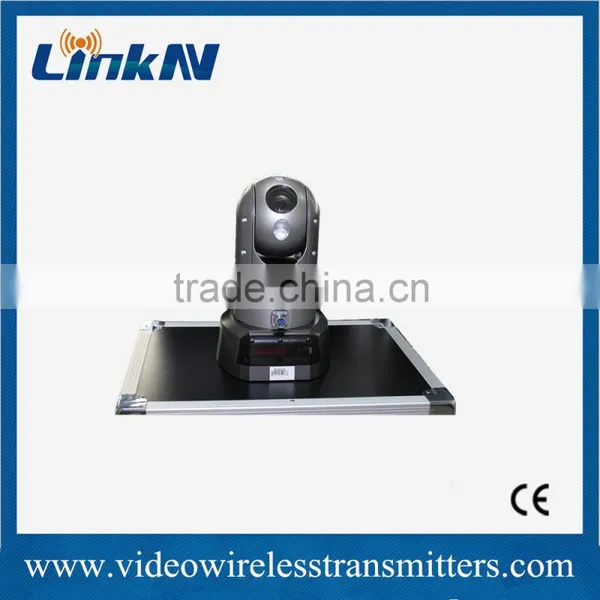

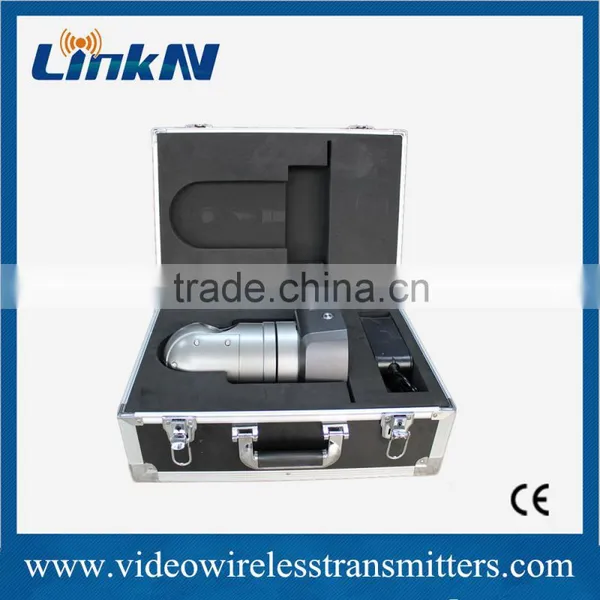

12V 1080P H.264 4G equipment transmitter with antenna 4G and wifi
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Low delay less than 500ms
4. Perfect image quality, bright colors and smooth image.
( Video demonstration could be provided on request )
Product Features:
1. H.264 video encoding compression, dual stream out put
2. Real-time local video recording, multi video mode
3. Quik start, can work normaly within 25s once power on
4. Support remote PTZ control
5. Multiple 4G network options, compatible with 3G, support wifi
Technical Parameters:
| Item | Description |
| Picture Process | Mega Pixels CMOS |
| Resolution | 1080P/30F |
| Minimal Illumination | Infrared on 0 Lux |
| Lens | f=3.6mm, 10 times zoom, anti infrared microscope |
| IR_CUT | Infrared and color filter can be automatically switched |
| Horizontal Angle | 355° |
| Vertical Angle | ≥90° |
| Presets | 6 |
| Infrared Light Control | Automatically controlled by photosensitive resistance, also can be manually controlled |
| Irradiation Distance | Over 10m |
| Main Stream | 1080P (1920*1080)/ 1280*720/ 640*480 |
| Second Stream | 640*360/ 320*180 |
| Video Compression | H.264/JPEG |
| Maximal FPS | 30 FPS |
| Data Rate | 1.024Mbps~4.096Mbps |
| Sub Data Rate | 128kbps~1024kbps |
| Picture Orientation | Mirror/Inversion |
| Character Overlay | Support |
| Audio Compression | G.711/G.726 |
| Basic Protocol | TCP/IP, HTTP, SMTP, RTSP, FTP, DHCP, DDNS, UPNP, NTP |
| Other Protocol | 802.11b/g/n, 4G |
| Mobile APP | Support |
| Video Control | Support |
| Dual Voice Transmission | Support |
| Storage | SD card (can store capturing picture and video) |
| SD card Preview | Can remotely control SD card, and download |
| Motion Detection | Support 4 zones |
| Alerting Notification | Email/FTP/SD card/External Alerting/Sending notifications to alerting server |
| User Setup | Third Grade User Permission |
| Date/Time Setup | Support |
| Upgrate | Can update by network |
| Ethernet Interface | 10Base-T/100Base-TX |
| Storage Interface | SD card slot |
| Alerting Input | 2 Channels |
| Alerting Output | 1 Channel |
| Audio Input | 1 Audio input hole |
| Audio Output | 1 Audio output hole |
| Control Interface | RS485 |
| Antenna Interface | 4G/WIFI |
| Power Supply | DC 12V |
| Power Consumption | <8W |
| Working Temperature | -20℃~60℃ |
| Humidity | 10%~80% Freezing free |
Applications include:
Government surveillance
Law Enforcement
Urban combat training with many multiple RF reflections
Unmanned vehicles: UAV, UGV, USV
Covert Surveillance
Robots
Portable microwave products
Our Services
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
Company Information
In 2005 we founded our international Head Office in Shenzhen, China, and began offering our products worldwide in 2013. We produce Wireless Transmitters with high quality under very competitive price for 8 years in China.
LinkAV with cutting edge technology of Zhongchuang Technology Group Limited is a brand established recently to meet the demands of COFDM, TDD or 3G/4G wireless connection requirements.
