Had Been Proved Since 2000
ASTM A801 GB/T15002-1994

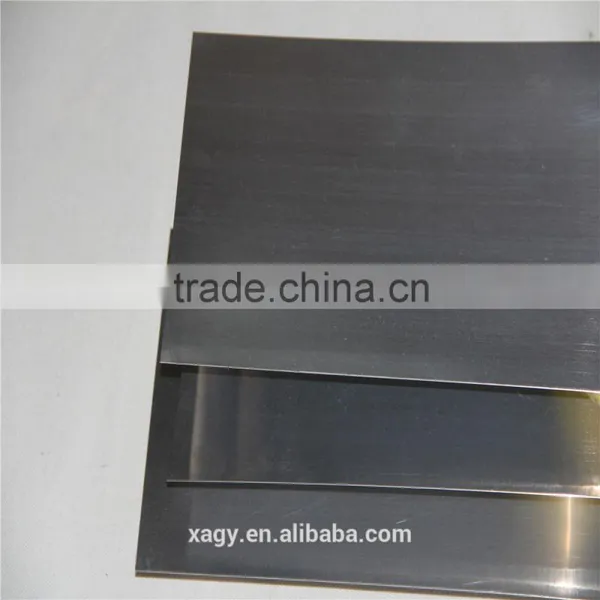

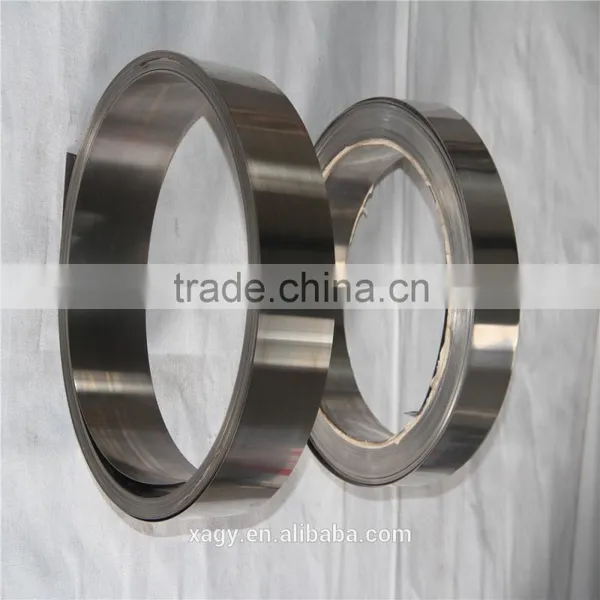

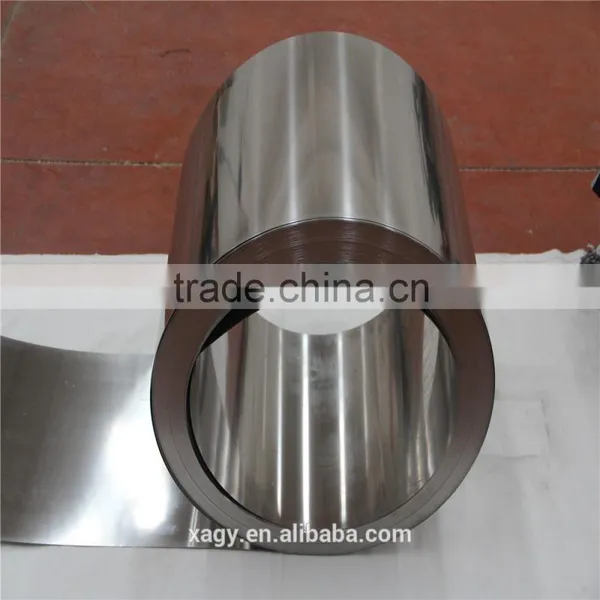

Sheet |
Thickness:0.10mm~0.50mm, width:10.0~210mm |

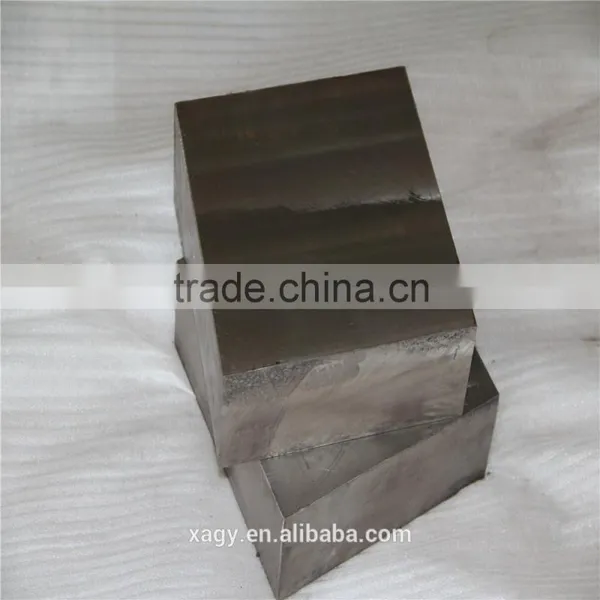

plate |
Thickness:3.5mm~4.0mm, width: ≤300mm |

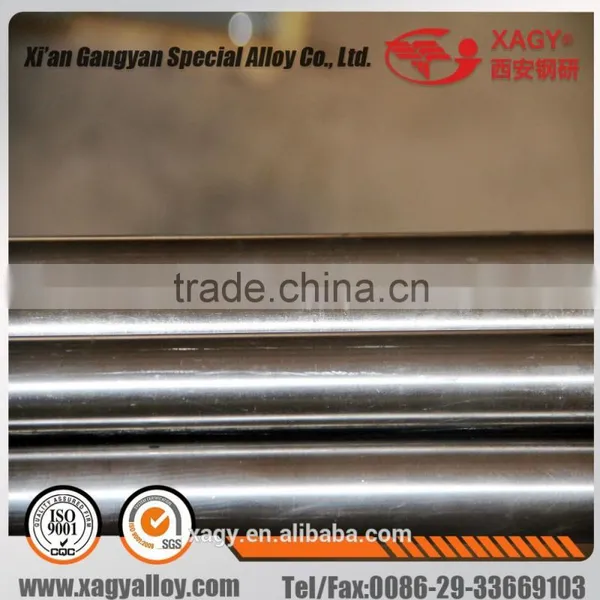

Rod |
Dia 8.0mm~Dia 32.0.0mm, length≤2000 |
Dia 32.0mm~Dia 150.0.0mm, length≤1000 |
Condition: cold rolled, hot rolled ,bright, burnished, hot forging ,peeled, turned
(Size with Max Tolerance )

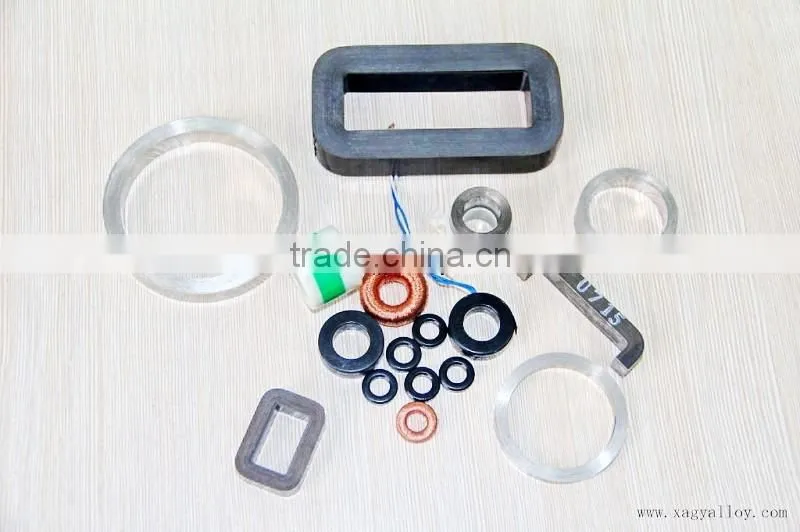

Magnetic Core Also Available In This Material .
.
According the characteristic of material ,suitable packing and follow China Customs regulations, or As buyer's request.
Ex. Gross Weight; Under 20kg Carton Box / Over 20kg Plywood Box or Pallet.
Delivery items are flexible , Shipping, Air lift ,train , hight speed ground transportation ,ect
DESCRIPTION
Hiperco 50A © is an iron-cobalt-vanadium soft magnetic alloy which exhibits high magnetic saturation , high d.c. maximum permeability, low d.c. coercive force, and low a.c. core loss.
APPLICATION
Special Motors for the Aerospace Industry.Electromagnets for medical applications ,Electrical Generators; Specialty Transformers,Pole Pieces for Electromagnets; Magnetic Bearings ,High Magnetic Flux Devices and Instruments.
Cross Reference
| Uk | USA | Russia |
| Permendur |
Supermendur Hiperco50 |
50KΦ |
Typical Chemistry
Fe |
CO |
V |
NI |
CU |
S |
P |
SI |
MN |
C |
Balance |
51.0 |
1.80 |
0.50 |
0.20 |
0.020 |
0.020 |
0.30 |
0.30 |
0.04 |
Physical properties
Density |
8.20 g/cm³ |
0.295lb/in³ |
Electrical resistivity |
253/ohms/mf |
420/Microhm-mm |
Mechanical Properties
Properties |
Metric |
Imperial |
Tensile strength |
1345 MPa |
195100 psi |
Yield strength (@ strain 0.200%) |
1275 MPa |
184900 psi |
Hardness, Brinell (estimated from Rockwell C for 3000 kg load, 10 mm ball Brinell measurement) |
334 |
334 |
Elongation at break (in 50 mm) |
1% |
1% |
Hardness, Knoop (converted from Rockwell C ) |
363 |
363 |
Remarks: Heat Treatment
When selecting a heat treating temperature for the application, two factors should
be considered:
1. For best magnetic soft characteristics, select the highest suggested temperature.
2. If the application requires specific mechanical properties higher than that
produced when employing the highest temperature, select the temperature that
will provide desired mechanical properties.
As temperature decreases, magnetic properties become less magnetic soft. Heat treating temperature for best soft magnetic properties should be 1625°F +/- 25°F (885°C +/- 15°C).Do not exceed 1652°F(900°C).
The heat treating atmosphere used must be nonoxiding and noncarburizing. Atmospheres such as dry hydrogen or high vacuum are suggested. Time at temperature should be two to four hours. Cool at a rate of nominally
180 to 360°F (100 to 200°C) per hour to a temperature ofleast
700°F(370°C), then cool naturally to room temperature
1. We can tailoring your unique requirements with ASTM, UNS ,GOST, standards.
2. We can produce more people cannot produce products
3. Short Lead-time
4. Leading Edge Technology
5. Good quality control in production process, ISO9001:2008, SGS, CQC, approved.
6. Excellent quality and High cost of performance
7. Available in an extensive range of stock or custom size.
8. The whole process from raw material to finished products can be traced.
9. 40000 square meters workshop, advanced facilities and test equipment .
1.Sample free
2, Faster delivery
3, Helpful staff
4, Quick response
6, Testing before shipping
7, We will reply you for your inquiry in 24 hours.
8, Advanced facilities
9. Technical support
10. No min order request
FAQ
1.Q: How can I trust this factory ?
A: Our stock number is 836660(China new stock market), also you can visit our website . Our factory's License and certificate appear on the website.(License Number can check the aptitude of the factory on Chinese Gov web ,English version available )
2. Q: Is this factory far away from the port? Is this will take longer for delivery?
A: From Xi'an to any port in China with in one day, convenient transportation only can improve the delivery.
3. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xi'an, Shaanxi Province, China.
All our clients from all over the world, are warmly welcome to visit us! Free pick up !
4. Q: How can I get some samples?
A: We are honored to offer you samples.(sample will delivery as our stock size)
5.Q: How does your factory do regarding quality control?
A. Quality is priority. our factory have advanced facilities, High qualified technical personnel and technical support and always attach great importance to quality controlling from beginning to end. All requirements with ASTM, UNS, GOST standards.
6.Q Are you ISO 9001 approved ?
A:Yes,we have held ISO 9001 approval since 2000.
7.Q;How can I pay ?
A: Payment can be made by T/T, L/C, D/A, D/T ,Western Union .
8.What is your minimum order quantity?
A: We can manufactures from as small as few kilogram to your specification.
9.Q:What is your standard of the lead time ?
A: Typical manufacturing lead times are around three working weeks.
If you have an urgent requirement, we have an emergency manufacturing service(EMS)available .
10.Q:Do you offer testing services?
A:Yes ,we can offer test date for you. Although we are not certified by international authority, our equipment is regularly calibrated and certified and our staff are fully competent. We can carry out for you ,using our in-house equipment.
11.Q:Do you deliver worldwide ?
A: Precision alloy supplies customers world wide.by Air, Sea, Ground, We can despatch using your carrier account if you prefer. All products are packed suitably for transportation.
12.Q:Can you make to my specification/drawing ?
A:We do manufacture to individual specifications / drawings. Please send us your specification / drawing for our production team to confirm if we can meet your requirements.
13.Q: Who do I send my enquiry to?
A: Please send your enquiries to Supportsales⊕
14.Q: Who do I contact when progressing my order?
A: Send an e-mail titled Order Progress to Supportsales⊕
