company profiles :
Established in 2005 ,Chongqing Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.
The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now they have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat preservaton,Now we mainly sell infrared gas burner,room heater ,chain,and other products
Supplier assessment certificate

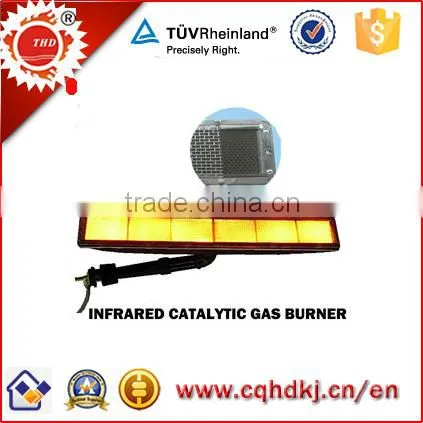

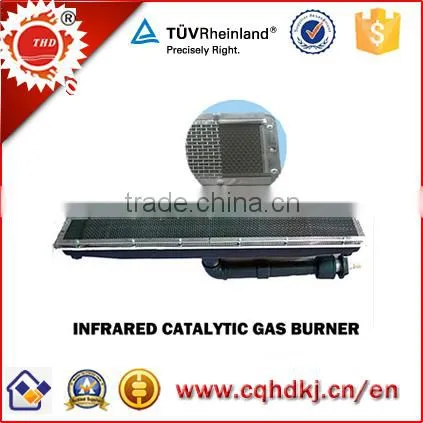

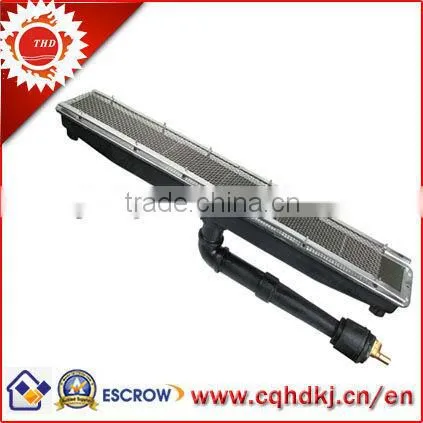

Infrared heaters for Latex Gloves production Machine HD242
Model |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
|||
NG |
LPG |
|||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
BTU/h |
||||||
HD242 |
840 |
130 |
175 |
11.7 |
0.74 |
0.68 |
9.4 |
8120 |
31972 |
3/8 |
Material of infrared heaters :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages of infrared heaters :
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application of infrared heaters
1.Latex gloves industry:thermoforming machine, rubber preformer, latex products heating, molding machine.
2. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
3. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
4. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. Heating ,warming and insulation for commercial buildings and workshop
Factory & packing photos:
Company honours
If any need, welcome to contact us freely!!
