Specifications
1.L-Band satellite fiber transmitter2.Standars type
3.1550nm dual fibers
4.950~2600MHz
5.1550nm DFVB laser

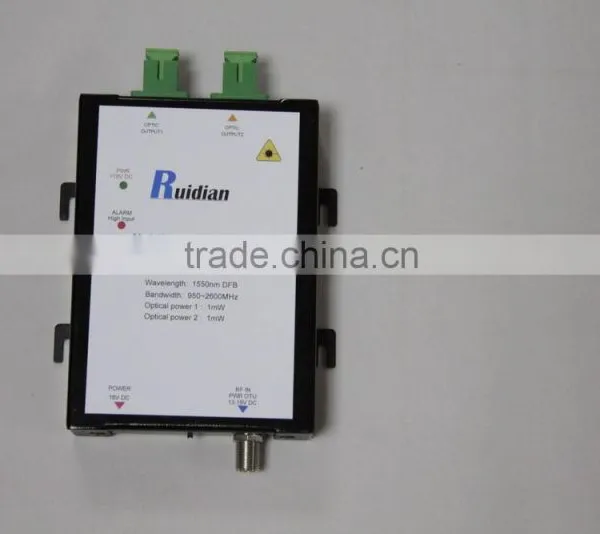

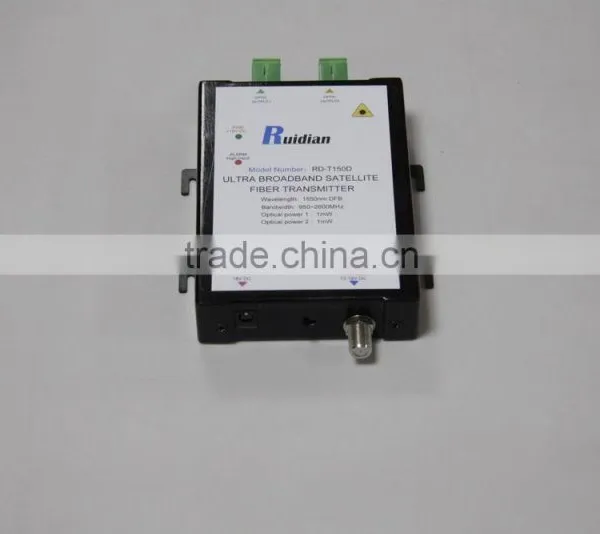

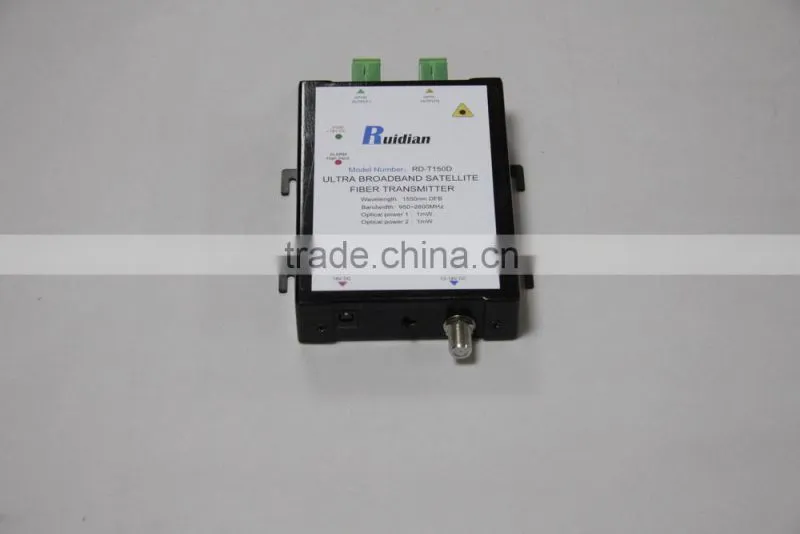

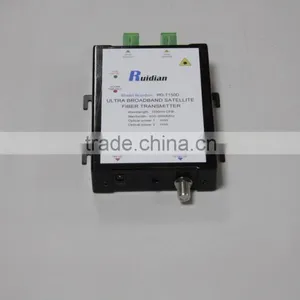

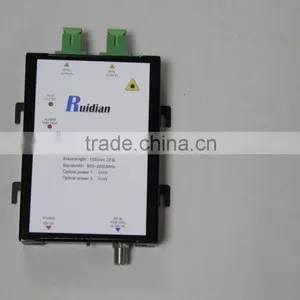

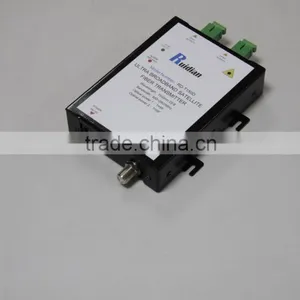

1550nm dual fibers satellite fiber transmitter
The RD-150D L-Band Satellite Transport System provides an economical solution for transporting digital signals for numerous satellite distribution, and distribution of digital broadcast systems (DBS).The system utilizes a cost-effective coaxial cable configuration to distribute the RF signals from the dish to the transmitter and from the receiver to the headed. The single-mode optical fiber between the RD-150D transmitter and receiver allows transmission distances to 2 5Km at 1550nm. Furthermore, using LNB power from the transmitter decreases the need for additional equipment at the dish site, RF alarm and indicator LEDS allow for a quick assessment of the link ’ s operational status. The RD-150D L-Band Satellite Transport System, whether used in an antenna remoting application of in a satellite distribution role, provide for transmission of the entire DBS spectrum in a simplified, flexible installation environment at one of the lowest costs found today ’s market.
RF Typical Performance
Parameter |
Units |
Min Typical Max Supplement |
|||||
Frequency |
MHz |
950 |
2600 |
||||
Output Level |
dBµv |
55 |
78 |
||||
Flatness |
dB |
±1.75 |
950~2600MHz |
||||
Port |
1 |
||||||
RF port |
F-female |
||||||
Return loss |
dB |
-13 |
|||||
Output Impedance |
Ω |
75 |
|||||
CNR |
dB |
40 |
|||||
IMD |
dB |
40 |
|||||
Feeding LNB |
V |
13/18VDC |
|||||
Optical Typical Performance |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Wavelength |
nm |
1540 |
1550 |
1560 |
DFB | ||
Return loss |
dB |
≥55 |
|||||
Output optical power |
mW |
1 |
2 |
Each port | |||
Optical connector |
SC/APC |
SC/APC or FC/APC |
|||||
General feature |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Power supply |
V |
18 |
|||||
Power consume |
mA |
110 |
120 |
130 |
|||
Work temp |
°C |
-20 |
+55 |
||||
Storage temp |
°C |
-40 |
+85 |
||||
Size |
cm |
16*10.5*2.8 |
W×D×H |
||||
Key Features |
High bandwidth 950~2600MHz |
1550nm DFB laser |
Dual-port optical output |
Wall-mounted metal housing |
F-female 75ohm RF Output |
Transmitter signals in excess of 10Km |
Offers LNB+13VDC or +18VDC |
Main application |
Satellite FTTH networks |
|
L-Band fiber distribution networks |
