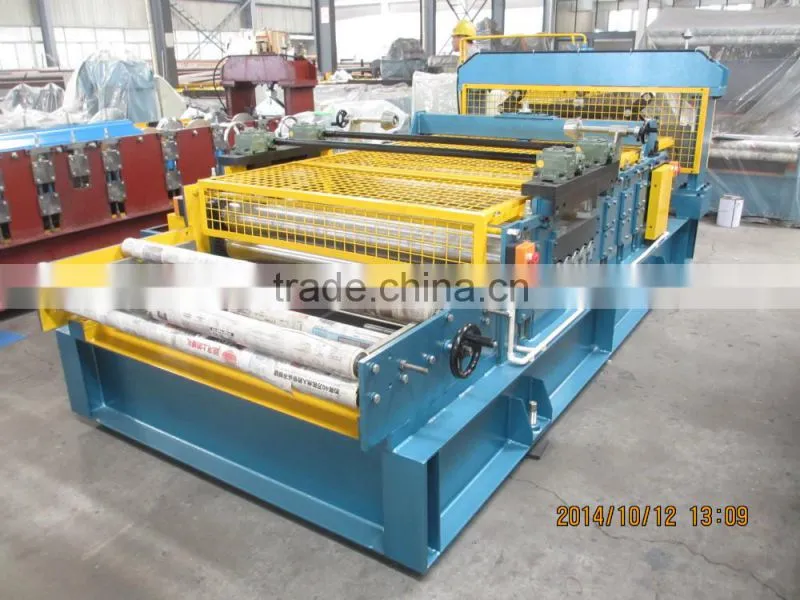

Automatic Steel Coil Slitting & Cutting Machine
Why choose this machine?
1.Technical parameter
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil |
Thickness |
0.3-0.7mm |
|
Width of steel sheet |
Maximum 1250mm |
|
Yield strength |
235-345Mpa |
|
Slitting width |
80mm-1250mm |
|
Slitter material |
Cr12 mould steel |
|
Cutter material |
Cr12 mould steel |
|
Numbers of Slitting blade |
6 pairs |
|
Working speed |
15times/min |
|
Type of cutting |
length-set cutting |
|
Size of machine |
2500mmX1700mmX1400mm |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Electric condition |
380V/3Phase/ 50HZ |
|
Main motor power |
4 KW |
|
Hydraulic station power |
2.2 KW |
|

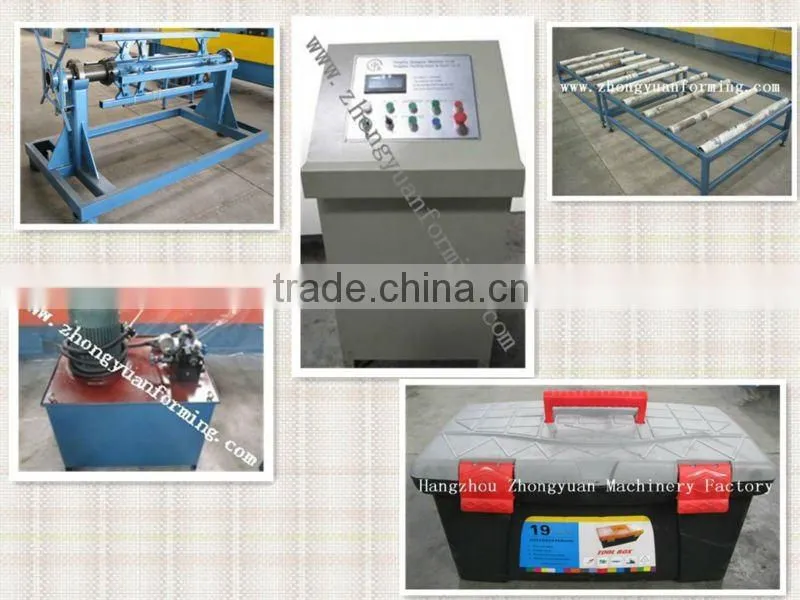

2. Components of Steel Sheet Slitting Machine With Optional Automatic Decoiler
Decoiler |
1set |
Guiding device |
1set |
Leveling system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Slitter device |
1set |
Cutter device |
1set |
Outputs table |
2 pieces |
3. Process flow:
Decoiling material→covering film →Guiding system →Slit sheet into pieces →Cut to length

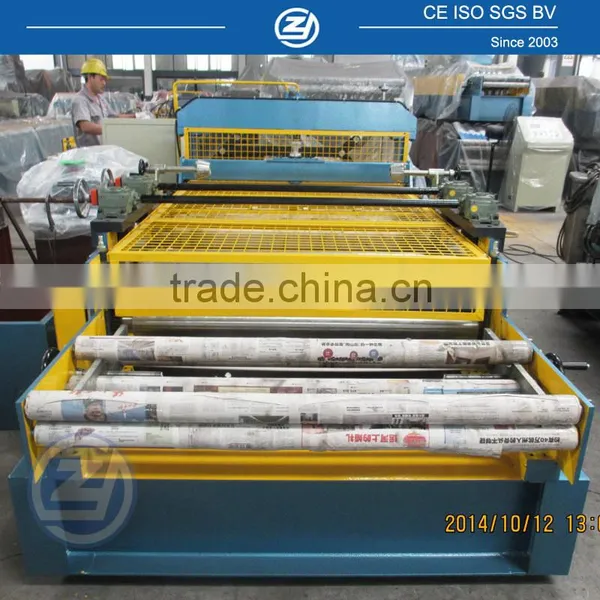

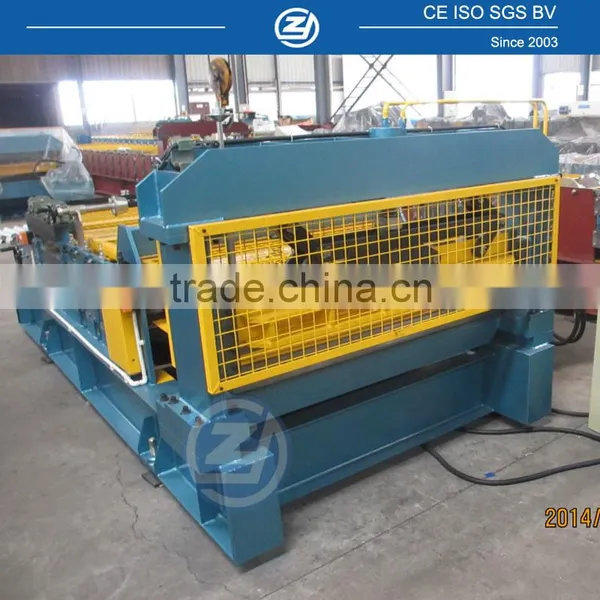

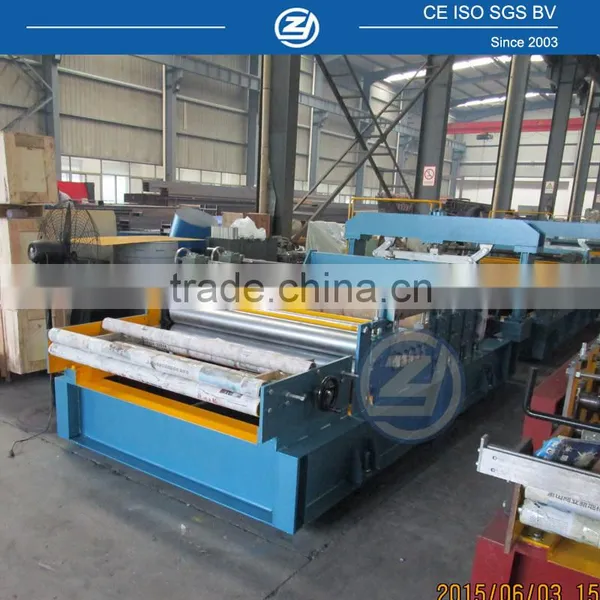

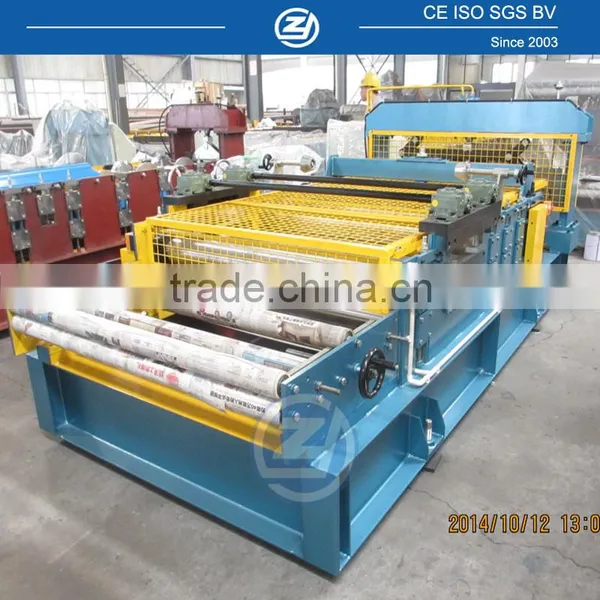

Steel Sheet Slitting Machine With Optional Automatic Decoiler

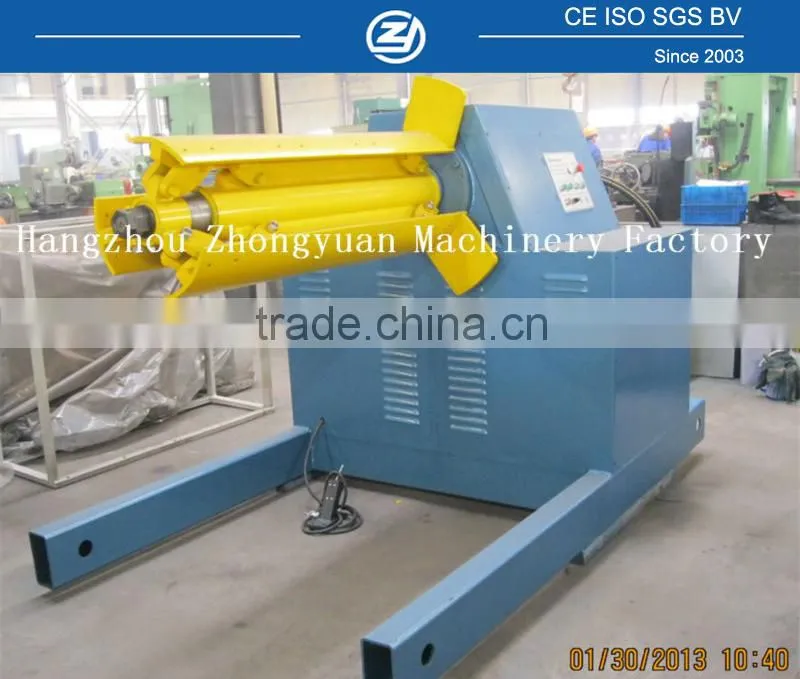

Automatic decoiler for option

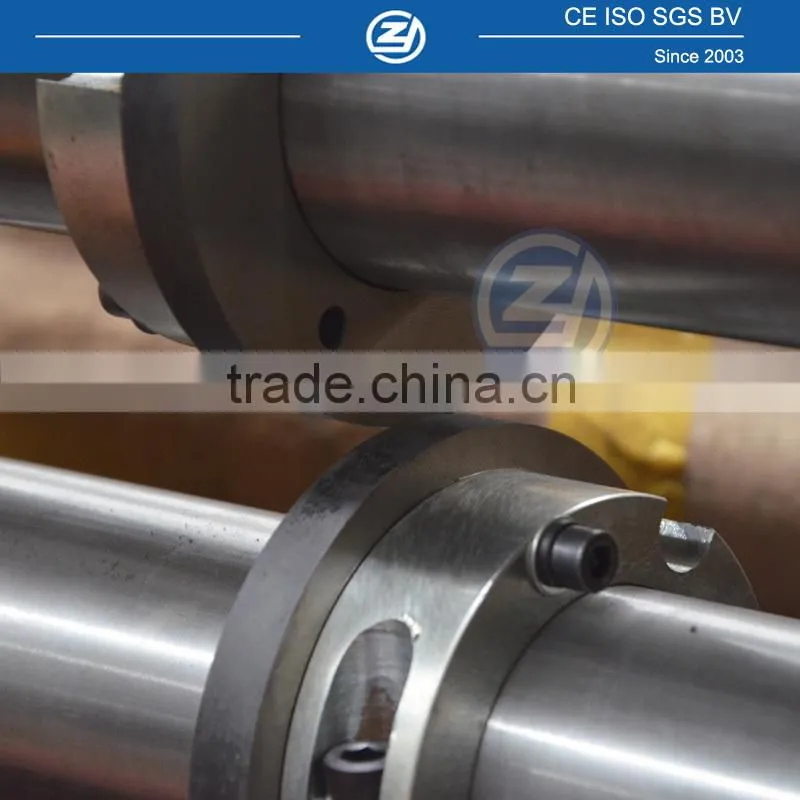

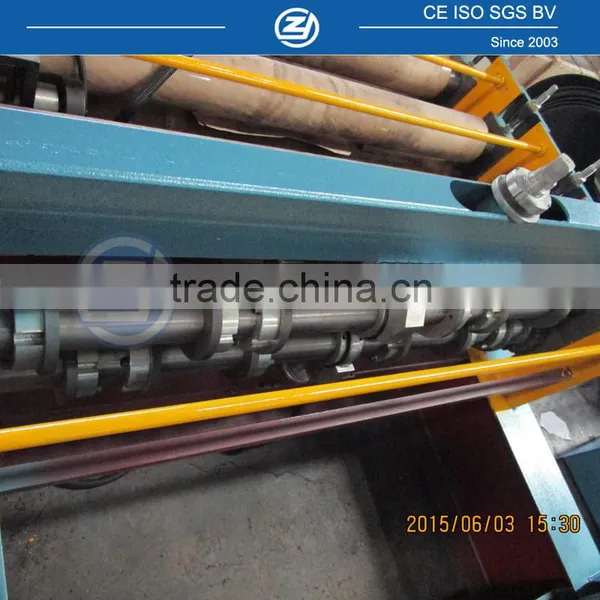

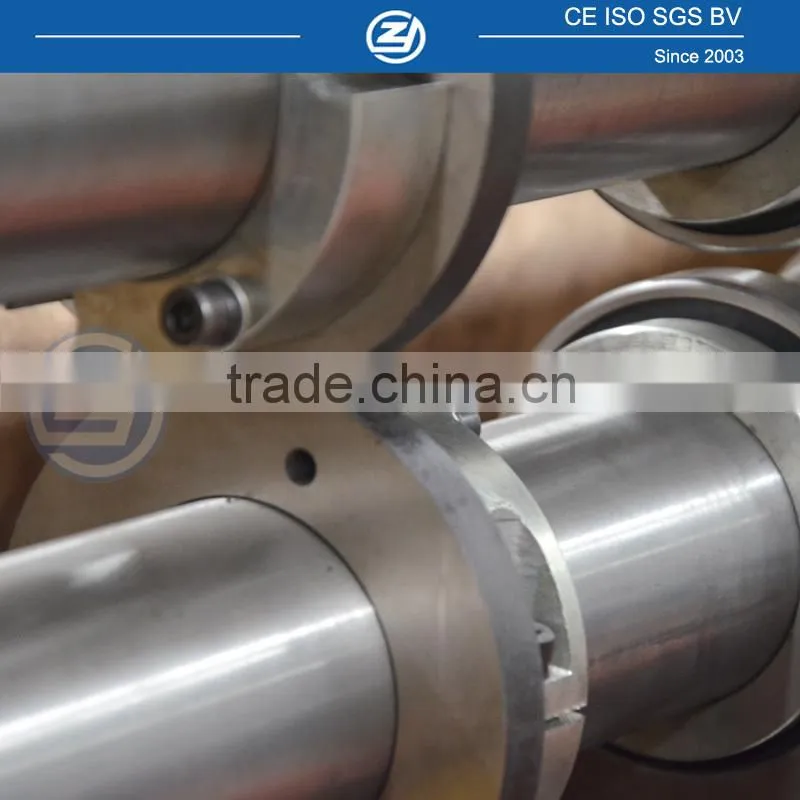

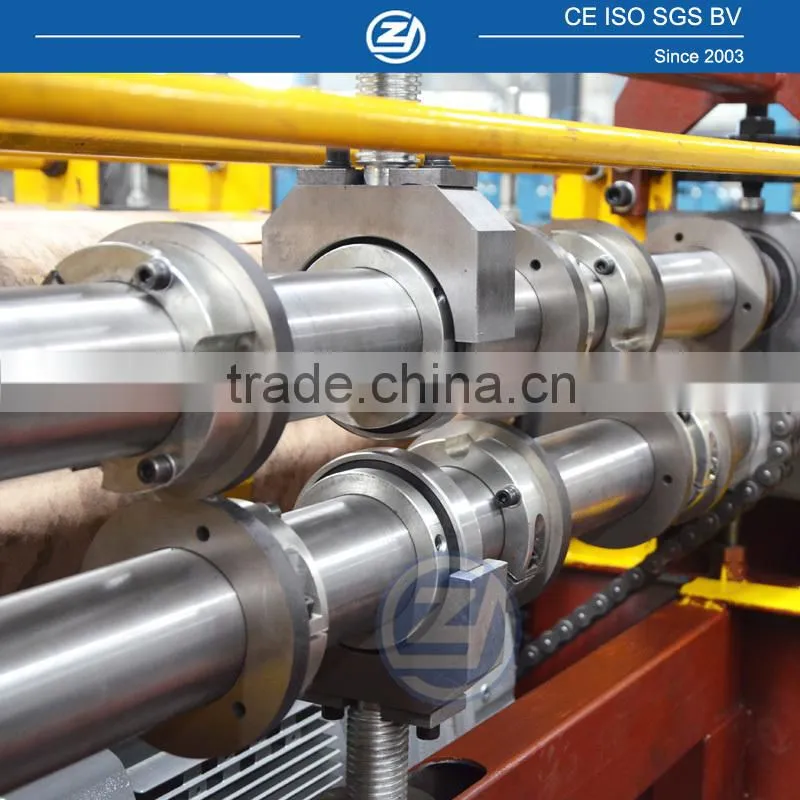

Slitters (Slitting width is adjustable)

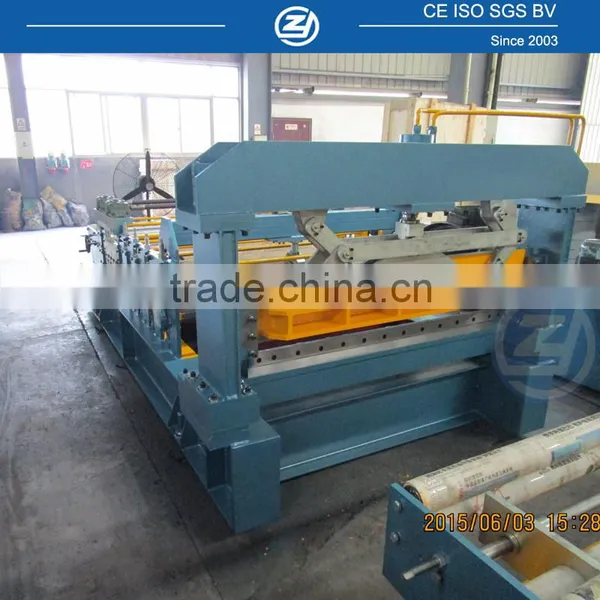

Detail view of cutter
WHY US?
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
