Specifications
has different kinds of filling pump to fit for filling the products with different viscosity, from beverage to creamy product.Usage:

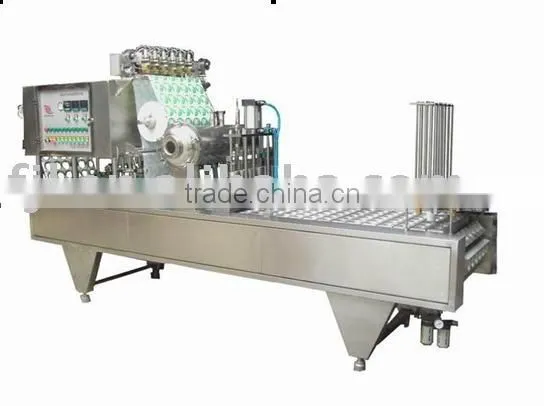

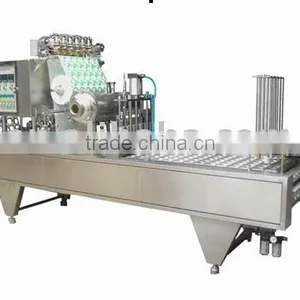

The CFS Series Automatic Cup Filling and Sealing Machine has different kinds of filling pump to fit for filling the products with different viscosity, from beverage to creamy products, like Gel, Jelly, Milk, Popsicle, Cream, Fruit Juice, etc., and sealing with appropriate compound film, and it is widely used in cosmetic, medical, chemical industry.
Our company, according to the requirement of the customer, can design different molds in filling, sealing and cutting parts in order to meet the need for the customer of different shapes and different containers.
Characteristic:
1. The shape of the machine is beautiful, clean and bright, and it is made of stainless steel except for the part, which connects with the material, and it matches with the sanitation standard of foodstuff.
2. It uses the air pressure to drive, and the functions are complete, the whole process, from container supplying, filling, sealing, leftover material cutting, product being moved out to leftover material receiving, are completely automatic, so it can save the manpower and reduce the cost.
3. The machine can fill, seal and cut several containers at the same time, so it can improve the productive efficiency.
4. It uses double sealing fitting, so it can seal with the heat twice and ensure that the material can be sealed tightly.
5. It uses fittings with famous brand, so the function of the whole machine is stable, the quality is reliable and the operation is simple and convenient.
Main Technical Parameter:
| Model | CFS 60A -1 | CFS 60A -2 | CFS 60A -3 | CFS 60A -4 | CFS 60A -5 |
| Packing Speed | 1500-1800 pcs/h | 3600-3800 pcs/h | 5000-6000 pcs/h | 7000-8000 pcs/h | 8000-9000 pcs/h |
| Power Supply | Thri-phase,4-wires (380V50HZ) | ||||
| Motor | 0.75 kw |
|
|||
| Heating Power | 4 kw | 4.5 kw | 5.2 kw | 6 kw | 7.8kw |
| Air Pressure | 0.5 Mpa-0.7 Mpa | ||||
| Air Wastage | 0.6 -1 m 3 /min |
|
|||
| Overall Size | 3200×800×1600( L×W×H ) | ||||
| Speed Regulating Method | stepless speed regulating | ||||
| Weight | Approx .1200 kg | ||||
