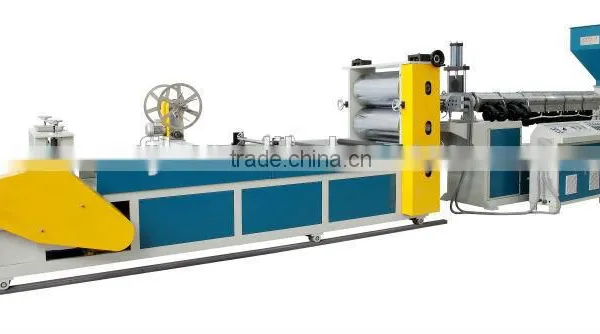

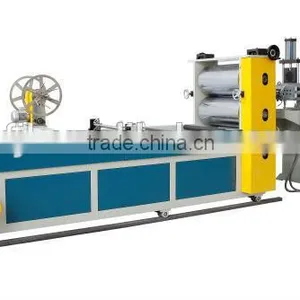

Help CenterFJL-PC Single-layer PP/PS/PE Sheet Extrusion Line
Related Products
-
Automatic Cup Filling and Sealing Machine ( 6PCS Cup Series )US$ 1 - 2MOQ: 1 Set -
FJL-200JB Round Curling Making MachineUS$ 5,500 - 7,000MOQ: 1 Set
-
FJL-200 Hopper DryerNegotiableMOQ: 1 Set
-
FJL-50T Punching Machine With Auto-Feeding DeviceNegotiableMOQ: 1 Set
-
FJL CFS60A Filling and Sealing MachineNegotiableMOQ: 1 Set
Specifications
The machine is mainly used to produce PP,HIPS, GPPS,PE stationery flank and other packing material.Major Construction Features:
1,The Sheet Extrusion unit is a combination of Extruder,three roll calender,haul-off unit,rewinder(including waste sheet winder) and electric control cabinet.
2,The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.
3,The screw adopts big L/D Ratio,equal plasticization and high plasticizing capability.
4,Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and imporve the production efficiency,
5,The Calender, hual off unit and winder adopt integration design, fine appearance, convenient and fast installation and adjustment,
6,The machine frame adopts square steel,to make sure the machine works stably in high speed. The motor is connected with gear box directly,improve production efficiency and lower energy consumption.
Main Technical Parameter:
Model |
FJLP-650 |
FJLP-700 |
FJLP-1000 |
FJLP-1400 |
Material Used |
PP,PS,HIPS,PE |
|||
Sheet Width |
≤650mm |
≤700mm |
≤1000mm |
≤1400mm |
Sheet Thickness |
0.3-2.0mm |
0.3-2.0mm |
0.3-2.0mm |
0.3-2.0mm |
Layer |
1 |
1 |
1 |
1 |
Extrusion Capacity |
≤100Kg/h |
≤150Kg/h |
≤200Kg/h |
≤250Kg/h |
Screw Dia. |
90mm |
110 |
110 |
120 |
L/D Ratio |
28:1 |
32:1 |
32:1 |
33:1 |
Roller Dia. |
300mm |
350mm |
350mm |
400mm |
Motor Power |
37KW |
45KW |
55KW |
75KW |
T-die width |
730mm |
800mm |
1100mm |
1500mm |
Overall Power |
95KW |
110KW |
120 KW |
140 KW |
Overall Dimension |
10.5*1.8*2.2 |
11.0*1.8*2.2 |
11.5*1.8*2.2 |
12.0*2.0*2.2 |
Weight |
5.5T |
6.5T |
7.0T |
7.5T |
Power Supply |
380V/50HZ, Tri-phase, Four-wire |
|||

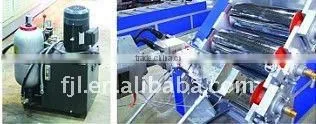

Parts Pictures:
Our Enterprise Qualification:
We have our one excellent after-sales service team,who can tackle customer’s problems asap.
Zhejiang Fuxinlong Machinery CO.,LTD,which is a professional manufacturer of plastic
sheet extruder,plastic cup thermoforming machine,automatic vacuum forming machine
and whole set of plastic packaging equipments.And at present,our machines are sold all
over the world,such as America,Australia,Russia,Romania,Sweden,Macedonia,Canada,
Peru,Mexico,Middle east,Southeast Asia,Africa and etc.
After more than ten years’ accumulation,we have our own professional technicians and
engineers,besides,we have the ability of developing new products by ourselves.
“Pursuing the international advanced level and make our customers satisfied” is
Fuxinlong enterprise’s quality policy. “Challenge ourselves and create excellent” is our
management idea.You are always welcome to our factory to have a visit for establishing
a long-term and friendly business relationship with each other.
We have our one excellent after-sales service team,who can tackle customer’s problems asap.
Machines will be packed in export standard packing
The sheet extruder is a combination of extruder,three rollers,T-Die,haul-off unit,electric control cabinet.
The main parts,such as screw,barrel,screen exchanger,T-die adopt superior alloy steel(38 CrMoAIA) with high hardness,strong corrosions resistance and long operating life nitrogen treatment
The screw adopts big L/D(length/diameter),equal plasticization and high plasticzing capacity.
If more questions about our machine,freely contact Ms Sarah:
Skype:fuxinlong01 QQ:2296755465 Viber:+86-18358758585
Trademanager2014:fjl
