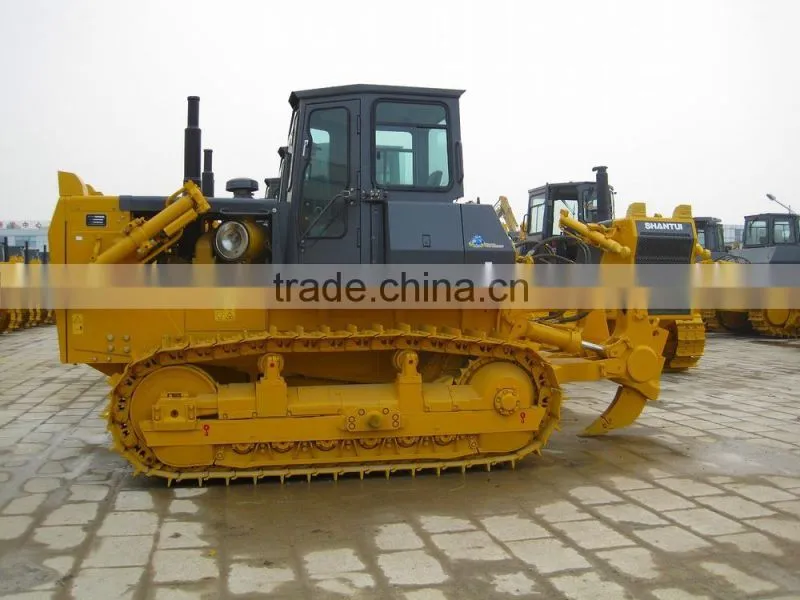

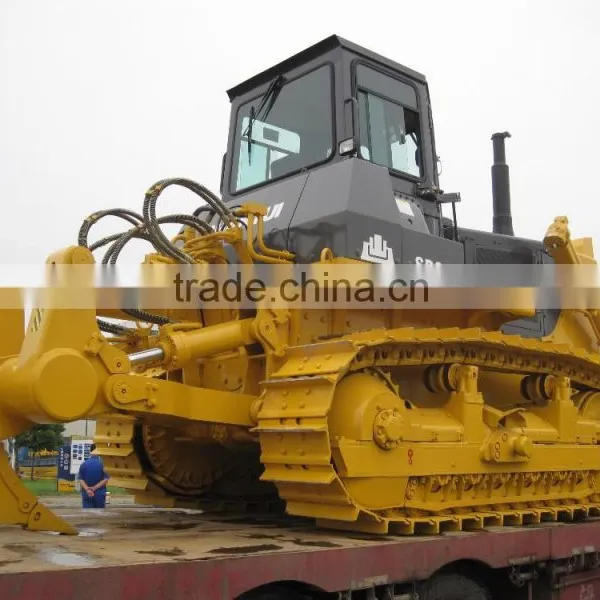

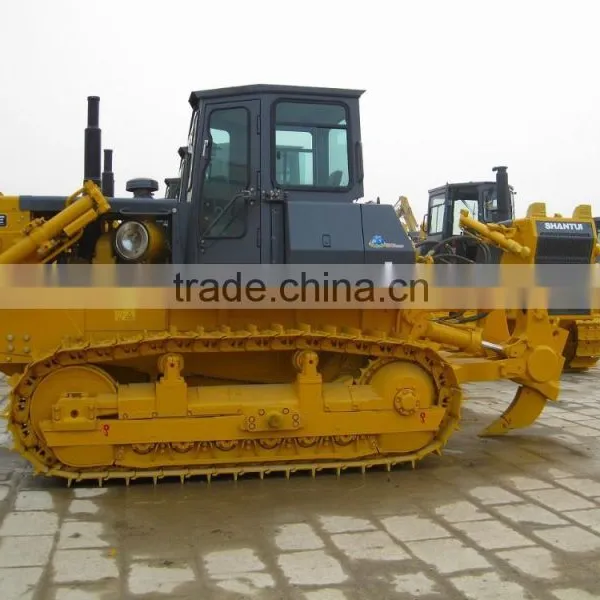

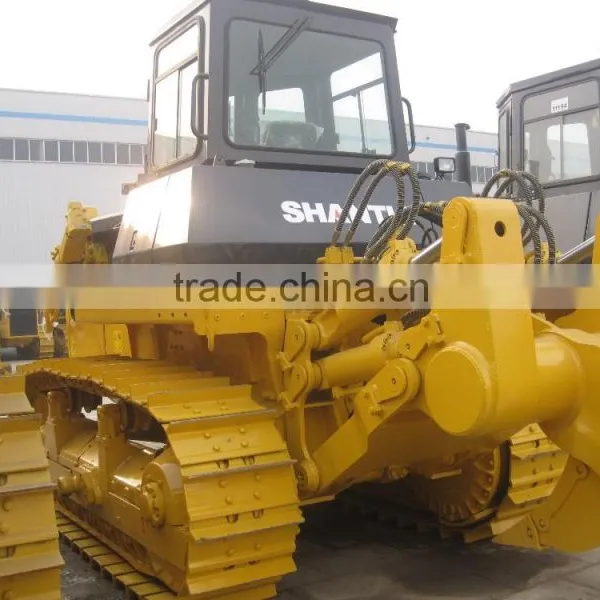

SHANTUI High Quality 220HP Bulldozer SD22

Name: SHANTUI High Quality 220HP Bulldozer SD22
Brand: SHANTUI
SKU: 101780811

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SHANTUI

Model Number:

SD22

Xuzhou Xuzhu Construction Machinery Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SHANTUI

Model Number SD22

Condition New

Moving Type Crawler Bulldozer

Dimension(Long * Breadth * High) 5750*3725*3395mm

After-sales Service Provided Engineers available to service machinery overseas

SHANTUI 220HP Bulldozer SD22

Parameters

ITEM	UNIT	SD22
L×W×H (Ripper not included)	mm	5750×3725×3395
Operating weight (Ripper not included)	t	23.4
Engine	-	NT855-C280S10
Rated power	kW/rpm	162/1800
Gradeability	°	30
Blade type	-	Straight tilt blade U-blade Semi-U blade Angle blade
Blade width	mm	Straight tilt blade 3725×1315 U blade 3800×1343 Semi-U blade 3725×1374 Angle blade 4365×1055
Dozing capacity	m3	Straight tilt blade 6.4 U blade 7.5 Semi-U blade 7.0 Angle blade 4.7
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1210
Ripper type		Single ripper Three-shank ripper
Ripping depth of ripper	mm	Single ripper 695 Three-shank ripper 666
Lifting height of ripper	mm	Single ripper515 Three-shank ripper 555
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	38
Width of track shoe	mm	560
Track gauge	mm	2000
Ground length and ground pressure	mm/MPa	2730-0.077
Pitch	mm	216
Forward speed	km/h	0–3.6
		0–6.5
		0–11.2
Reverse speed	km/h	0–4.3
		0–7.7
		0–13.2
