2015 New Product Intel Celeron 847 MINI ITX Motherboard
Introduction
MINI ITX Motherboard
Onboard Intel Celeron 847 dual core 1.1GHz CPU
Socket BGA 1023
Intel NM70 chipset
Intel HD Graphics,Support DX10.1,Support HDCP
Support Intel Intel Rapid Start Technology
Mini dimension (17*17cm ) ITX agile collocation
features
Support SATA 3.0/USB 2.0
Support PCI-E x16 slots
Support Charger Booster
Support Windows 8
Support BIO-Remote2
Solid Capacitor
Support BIOS-Flasher
Support BIOS online update
Specification
| CPU | Intel® Celeron 847 dual core 1.1GHz CPU | ||||
| Chipset | Intel NM70 | ||||
| Memory | Support DDR3 1333/1066 MHz, 2 x DDR3 DIMM,maximum can up to 16GB | ||||
| Expansion Slots | 1 x PCI-E x16 2.0 slot (x8) | ||||
| Storage | 1 x SATA3 6Gb/s port3 x SATA2 3Gb/s port | ||||
| USB | 4 x USB 2.0 ports2 x USB 2.0 connectors | ||||
| Ethernet LAN | Onboard Realtek RTL8111F - 10/100/1000M network card chip | ||||
| Onboard graphics | Intel HD Graphics Support DX10.1 Support HDCP Maximum memory up to 1759MB | ||||

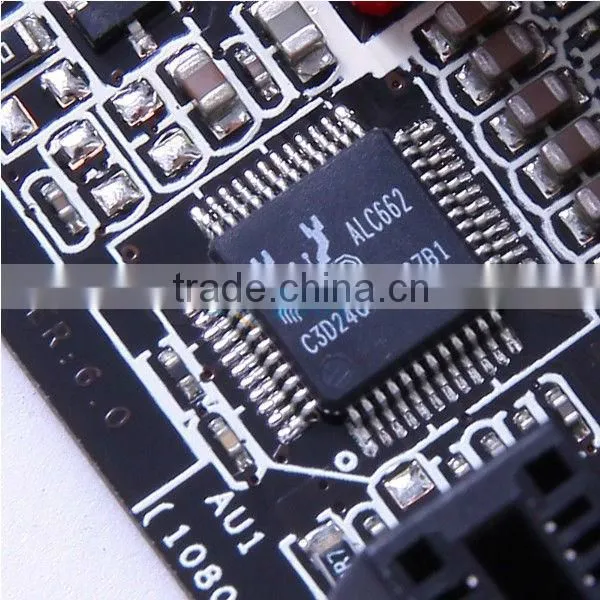

| Audio | Realtek ALC662 6 channels HD Audio | ||||

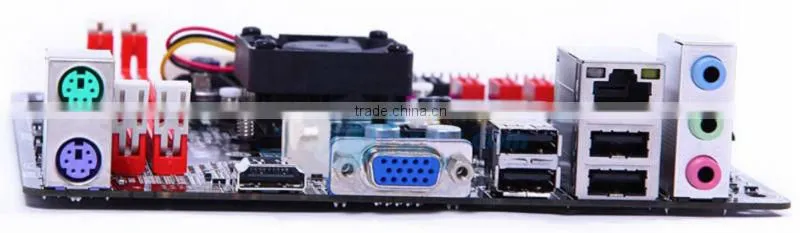

| Back board I/O interface | 1 x PS/2 mouse | ||||
| 1 x PS/2 keyboard | |||||
| 4 x USB 2.0 ports | |||||
| 1 x HDMI port | |||||
| 1 x VGA port | |||||
| 1 x RJ-45 port | |||||
| 3 x Audio ports | |||||
| Onboard I/O interface | 2 x USB2.0 | ||||
| 1 x SATA3 6Gb/s | |||||
| 3 x SATA2 3Gb/s | |||||
| 1 x front connector | |||||
| 1 x front board connector | |||||
| 1 x S/PDIF output connector | |||||
| 1 x CPU fan connector | |||||
| 1 x system fan connector | |||||
| 1 x serial connector | |||||
| 1 x print connector | |||||
| Motherboard Specification | Mini ITX form,dimensions: 17cm x 17cm ( W x L ) | ||||
| Supported OS | Windows XP / Vista / 7 / 8 | ||||
| Accessories | 2 x SATA data wire | ||||
| 1 x cabinet I/O board | |||||
| 1 x driver disk | |||||
| 1 x quick tour | |||||
| Features | Support Windows 8 | ||||
| Support BIO-Remote2 | |||||
| Solid Capacitor | |||||
| Support BIOS-Flasher | |||||
| Support Charger Booster | |||||
| Support BIOS online update | |||||

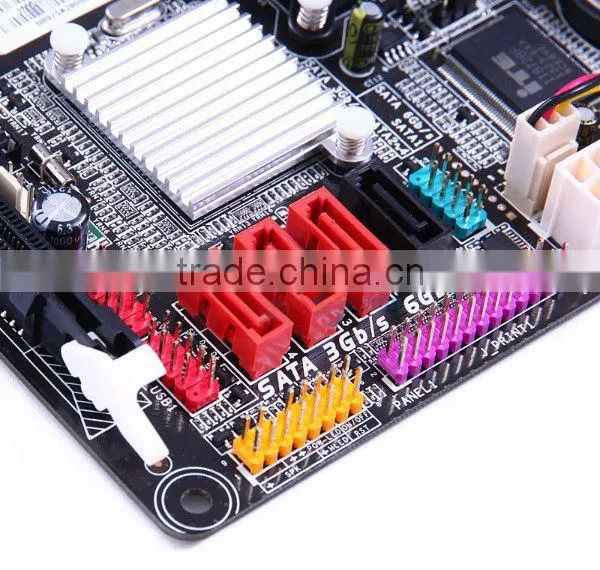

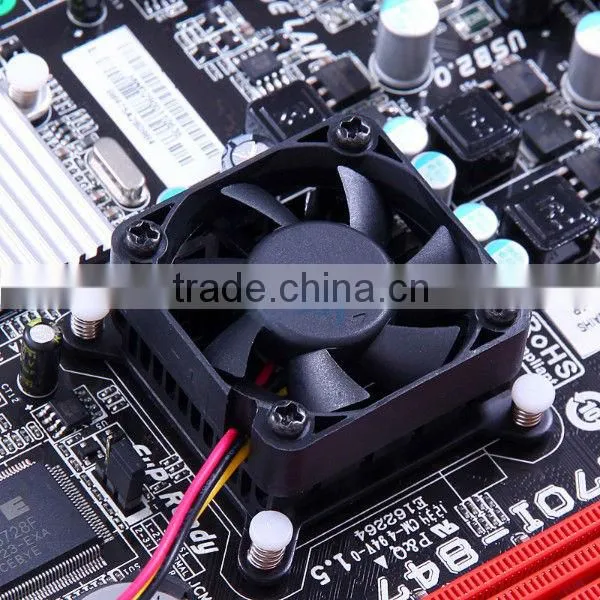

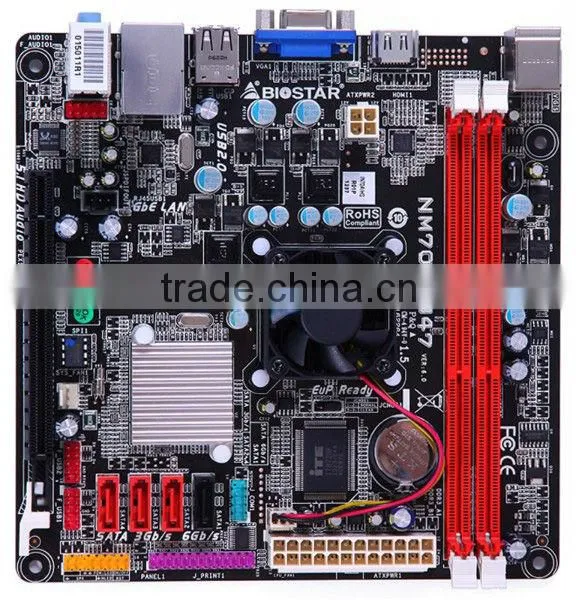

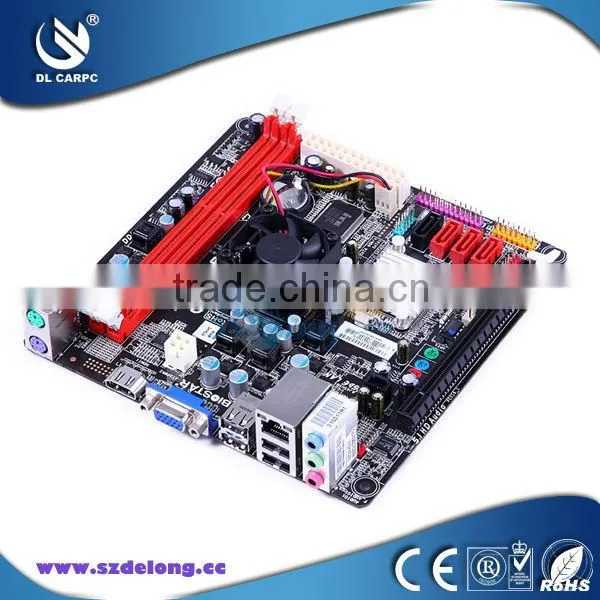

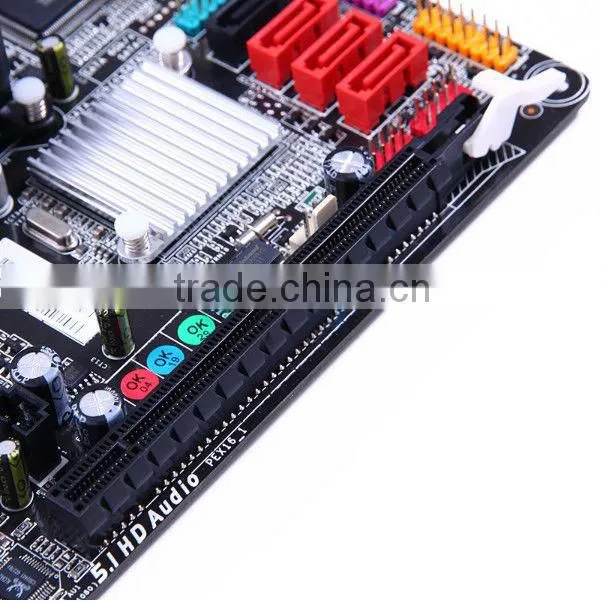

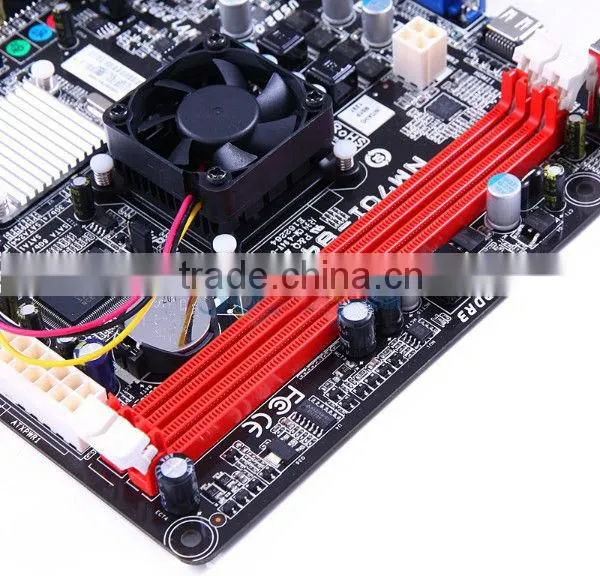

Detailed pictures
Please contact us before place order,discount should be more!
Payment Terms
We accept payment from the Alipal & Bank transfer&Western Union, Money Gram, Pls kindly contact with us before you place order.
Feedback
Please allow possible slight differences due to technical improvement, You order is recognized as you are with full acknowledgement of product and respective policies.
1, we depend on our clients satisfaction to succeed, Therefore, you feedback is extremely important to us.
2, If you are satisfied with our items, please leave us positive feedback. Thank you!
Shipping
1, We are shipping to worldwide except some countries which due to custom issue
2, Import duties, taxes and charges are not included in the item price or shipping charges.
3, Please contact with us before you place order, we can find a better way to save the freight charge!
Warranty Terms
1, We provide one year warranty, If you feel disappointed with the item, please notice us within 7day of delivery,
2, All the items must be returned in original condition for refund /exchange, the buyer is responsible for all shipping costs incurred.
We are committed to providing top quality and great service all the time!
